Tracker Mobile Platform Ladder

  • Overview

    • Model Number: 11310062
    • Product Name: Tracker Mobile Platform Ladder

    Features:

    • Two Wheel System – enables operation on most surfaces
    • Tilt and Steer Control – delivers fast relocation with minimum operator effort
    • Large Stable Platform – provides comfortable work space unaffected by operator movement
    • Industrial Standard – complies with regulatory authority requirements.

    With a Tilt and Steer Control and two large wheels, Tracker is easily moved over most surfaces, and automatically returns to the stationary mode when the control is released.  With the Tilt and Steer control actuated, the operator is positioned to allow a normal walking step, and the unit is moved quickly with minimal effort.

    A large platform provides ample working area and fitting of the optional shelf places tools or a clip board at the ideal working height.

    Two sets of platform safety rails are supplied.  Low rails for applications where greater side access is needed and the situation is safe, for example when working to the face of a structure or machine.  High rails are provided for working overhead and in open space.  Where required, one of each rail may be fitted.

    Backer is designed and manufactured to meet the requirements of Australian / New Zealand standard AS/NZS 1892.1:1996

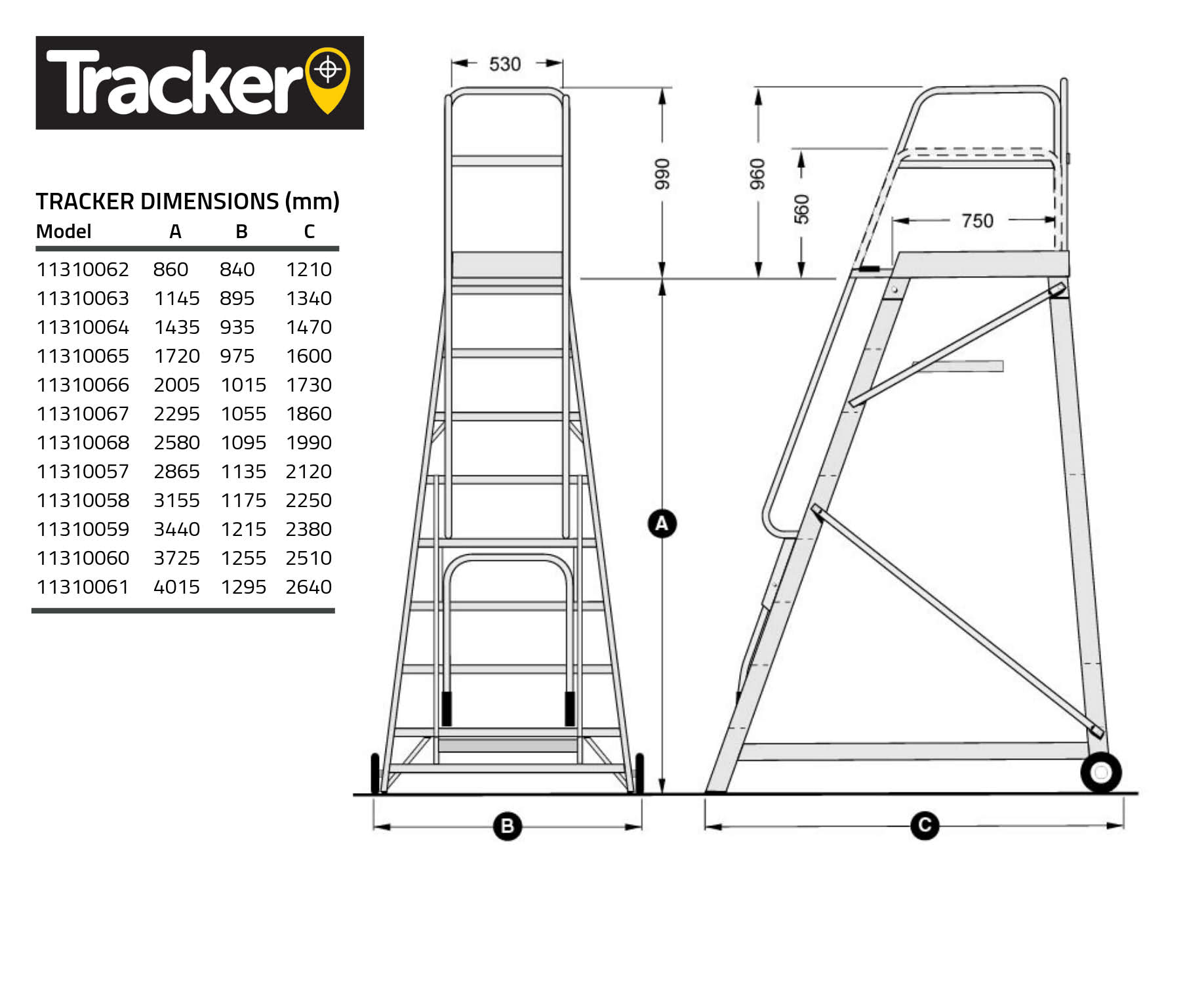

    Model Platform Height Base Width Base Length Platform Width Platform Length
      mm mm mm mm mm
    11310062 860 800 1205 580 720
    11310063 1145 840 1335 580 720
    11310064 1435 880 1465 580 720
    11310065 1720 920 1595 580 720
    11310066 2005 960 1725 580 720
    11310067 2295 1000 1855 580 720
    11310068 2580 1040 1980 580 720
    11310057 2865 1080 2110 580 720
    11310058 3155 1120 2240 580 720
    11310059 3440 1160 2370 580 720
    11310060 3725 1200 2500 580 720
    11310061 4015 1240 2630 580 720
