Navigator Mobile Warehouse Ladder

  • Overview

    • Model Number: 11310041
    • Product Name: Navigator Mobile Warehouse Ladder

    *These ladders are custom-made to order and are NON-RETURNABLE*

    Features:

    • No springs – eliminates skating and improves stability
    • Lift and Steer Control – delivers fast relocation and enables use as a platform trolley
    • Four swivel castors - allows multi directional movement and confined space navigation
    • Industrial Standard – complies with authority requirements
    • PRO Models also available with include these added features: auto safety gate, rota gate and yellow platform safety rails

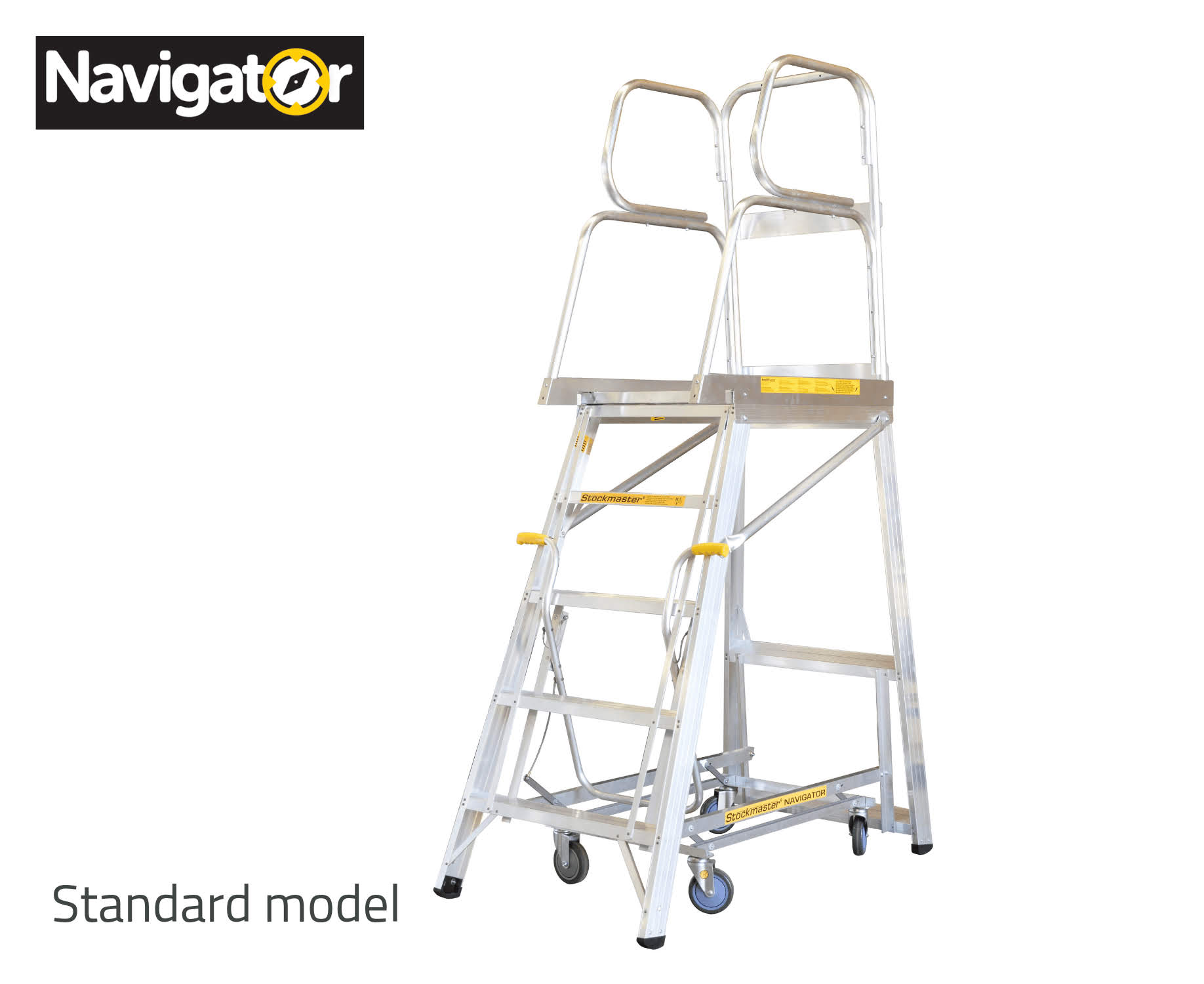

    • Standard Models do not come with yellow rails or safety gates

    The Navigator features an ergonomically designed Lift and Steer control eliminating the need for springs.  The control raises the unit to the mobile position and also provides easy steering for relocation.

    Release of the control by the operator automatically returns Navigator to the default stationary mode. In the stationary mode, the unit is very stable with all four feet remaining in floor contact.  All skating and instability associated with designs utilising springs is eliminated.  Weight shift as the operator moves about the platform has no effect on stability.

    With the Lift and Steer control actuated, the operator is positioned to allow a normal walking step, and the unit is moved quickly with minimal effort.

    In the mobile mode, Navigator relocates to a new position in less than half the time of comparable products.  The lifting system also provides a mechanical advantage allowing the platform to transport items about the floor, which may eliminate the need for a separate trolley and the load transfer time.

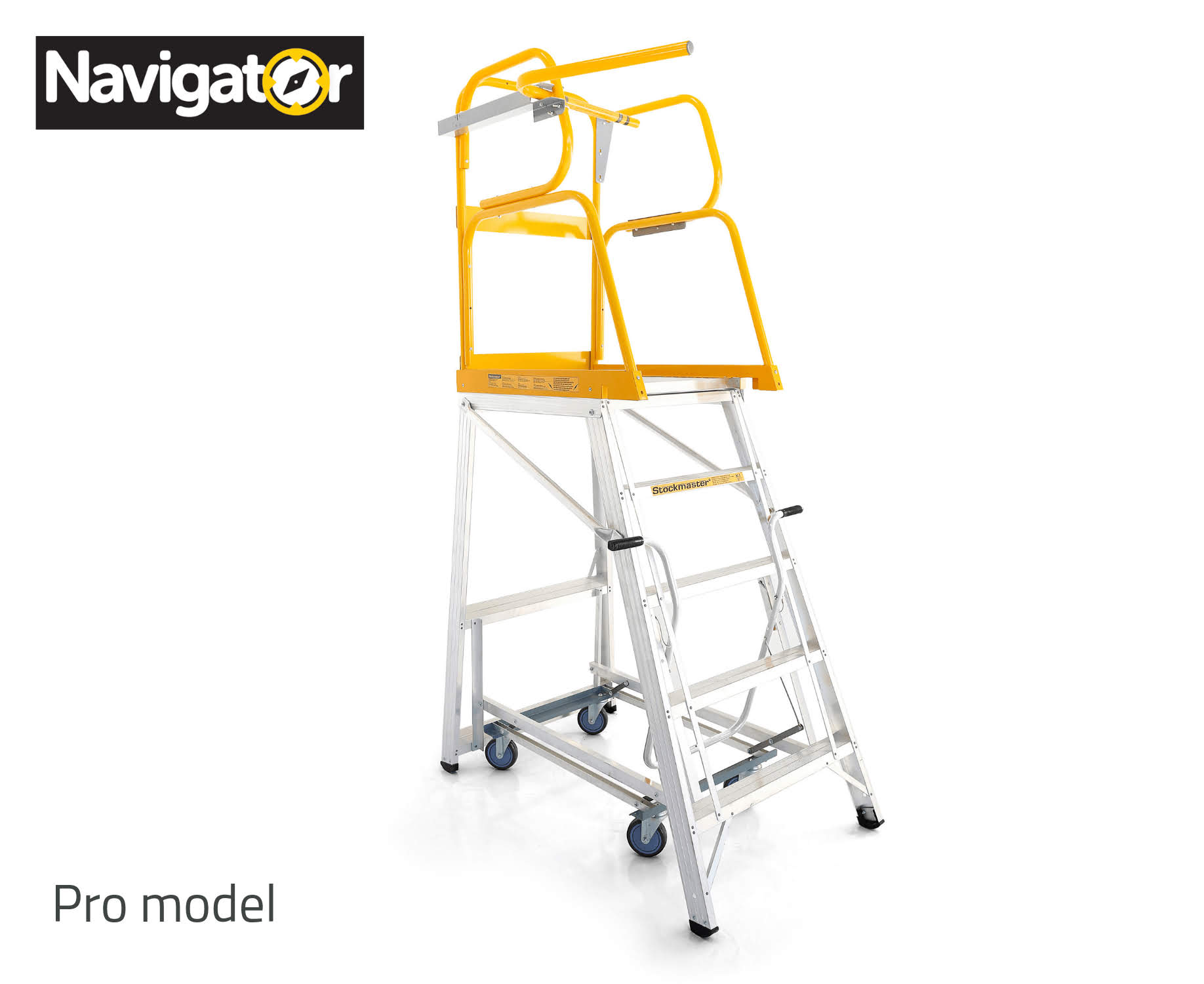

    Navigator Pro gives additional protection against accidentally stepping off the front of the platform. With the fully automatic Auto-Gate your hands are free to carry an item and still maintain a safe grip as you enter or leave the work-space. With Navigator Pro you also have Rota-Gate which provides a gate-way at the side of the platform creating easy access for stock-picking, inspection and many other tasks.

    Navigator meets or exceeds all the requirements of the Australian / New Zealand standard AS/NZS 1892.1:1996, US standard ANSI-ASC A14.2-2007 and the European Standard EN 131: Parts 1 and 2

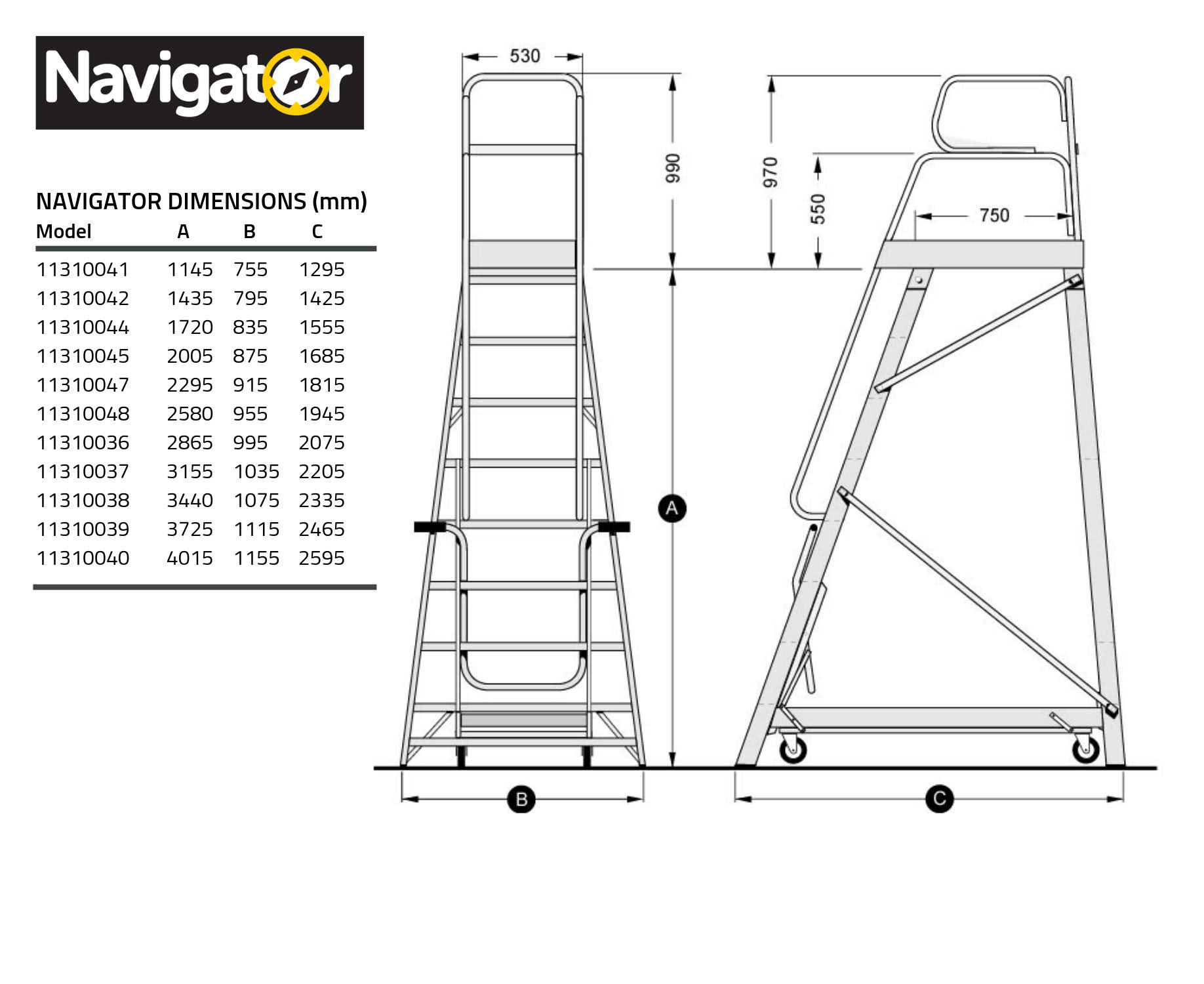

  • Specification

    Standard ModelPRO ModelPlatform HeightBase WidthBase LengthPlatform WidthPlatform Length
    1131004111310041PRO11457551290580720
    1131004211310042PRO14357951420580720
    1131004411310044PRO17208351550580720
    1131004511310045PRO20058751680580720
    1131004711310047PRO22959151810580720
    1131004811310048PRO25809552065580720
    1131003611310036PRO28659952065580720
    1131003711310037PRO315510952195580720
    1131003811310038PRO344010752325580720
    1131003911310039PRO372511152455580720
    1131004011310040PRO40151152585580720
