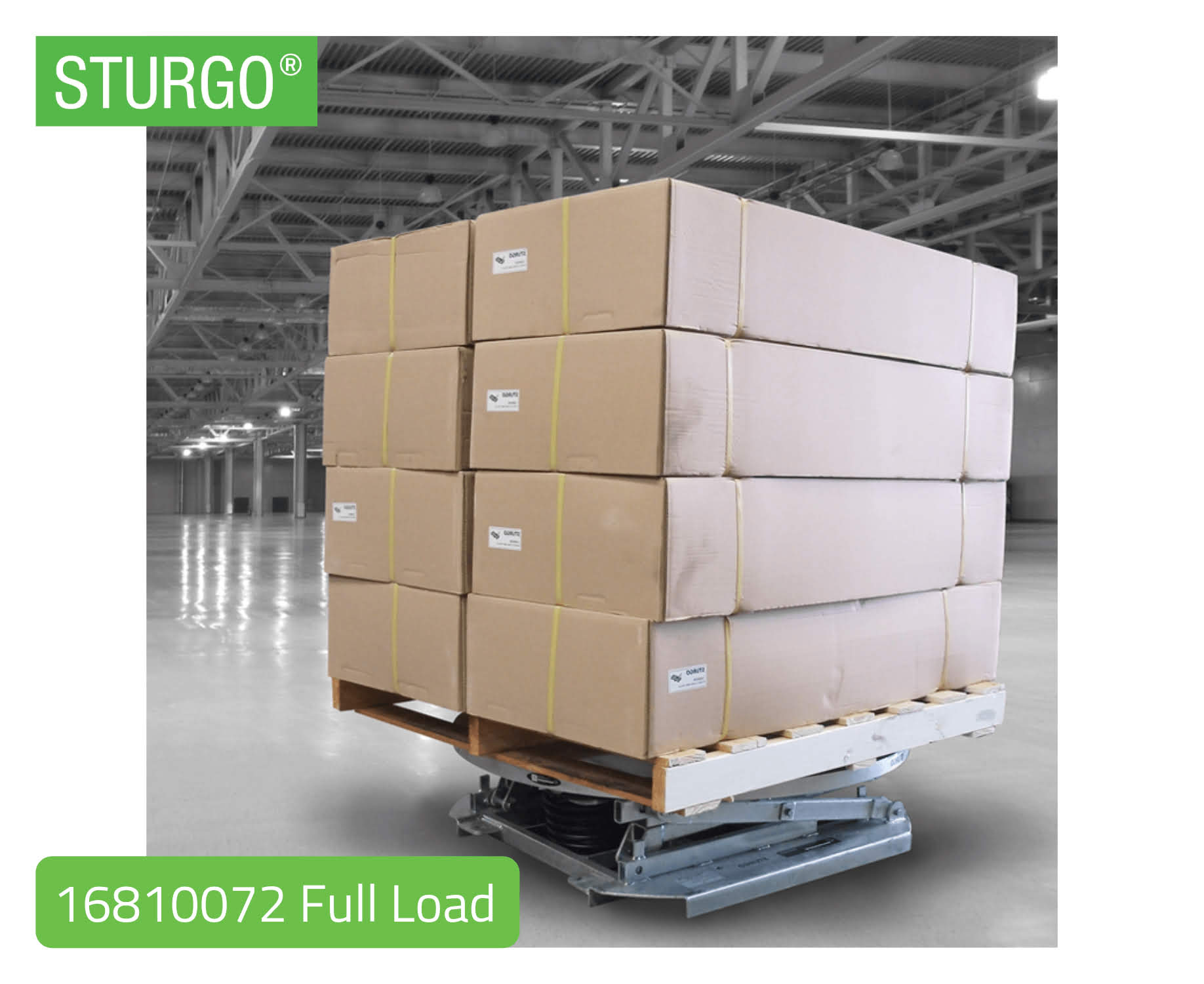

• Model Number: 16810072

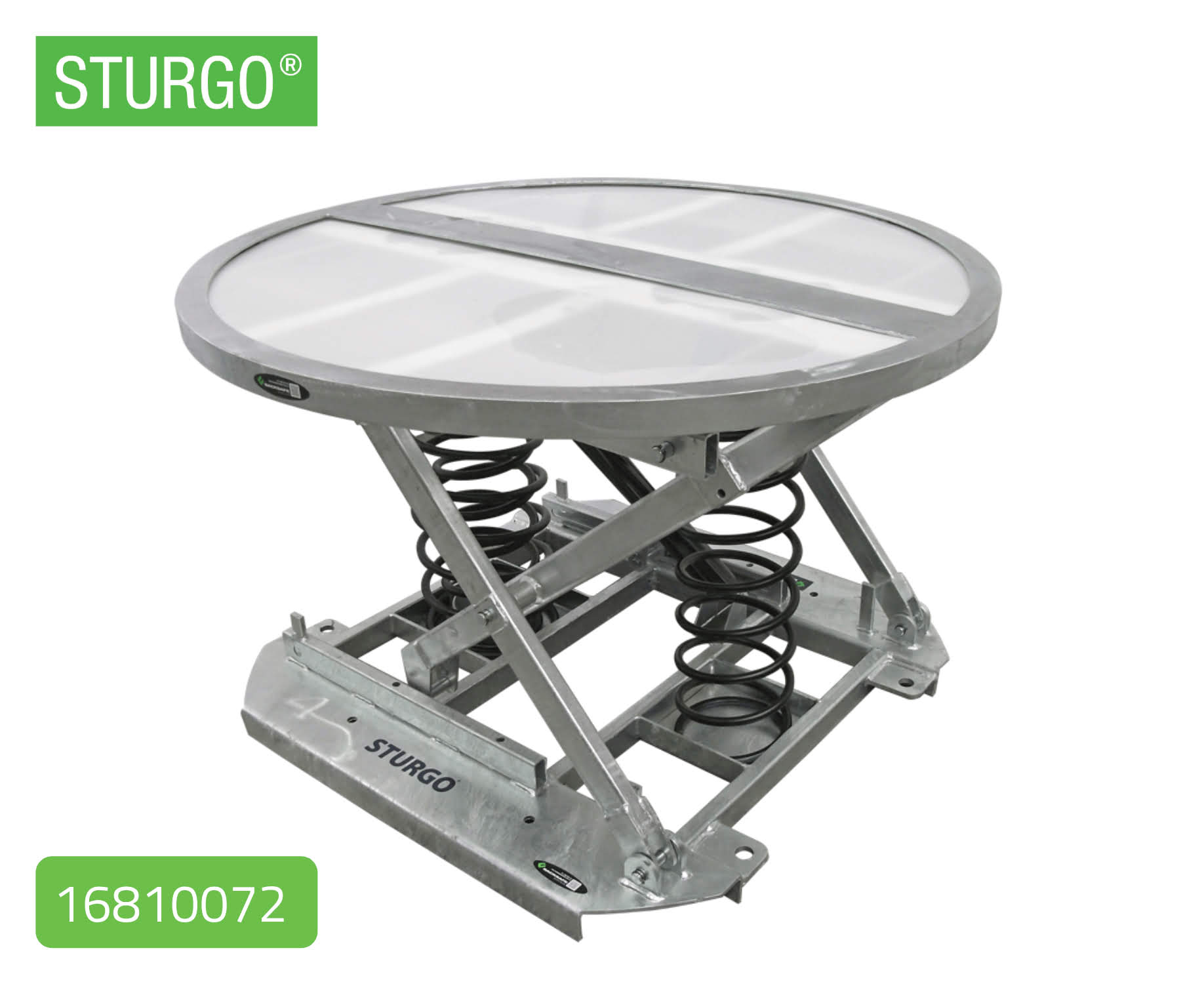

• Product Name: STURGO® Spring Loaded Pallet Positioner

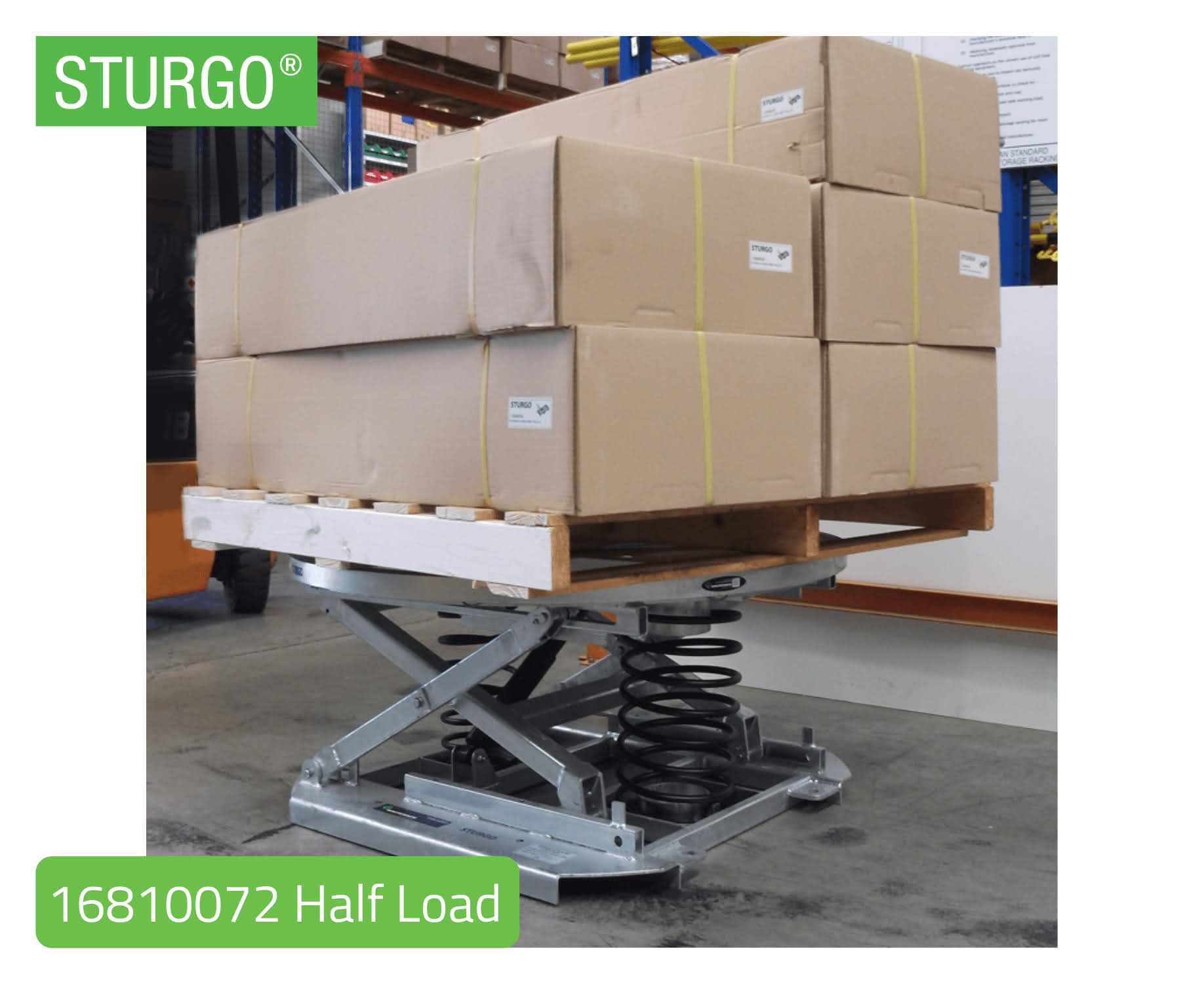

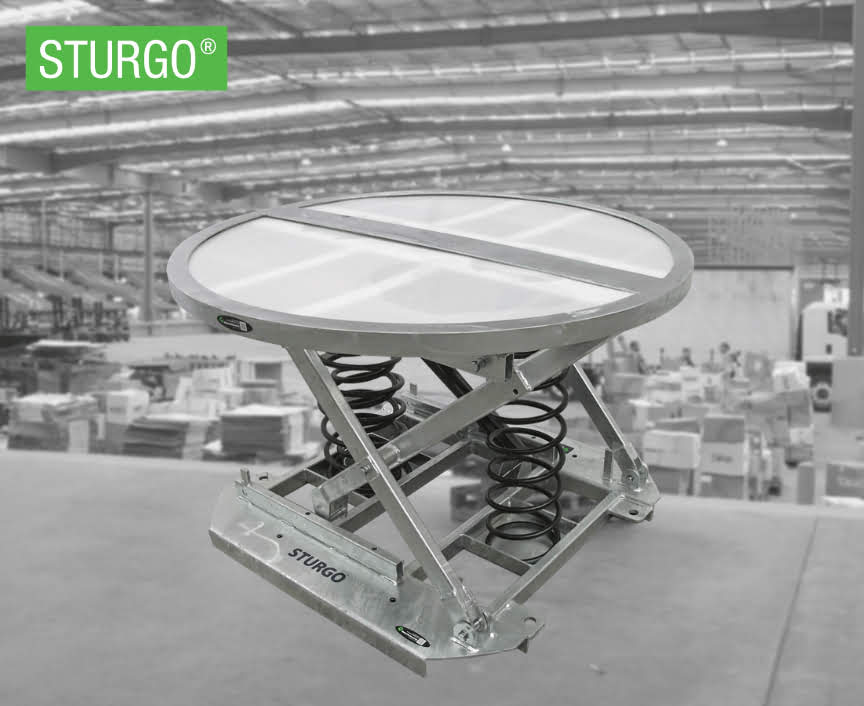

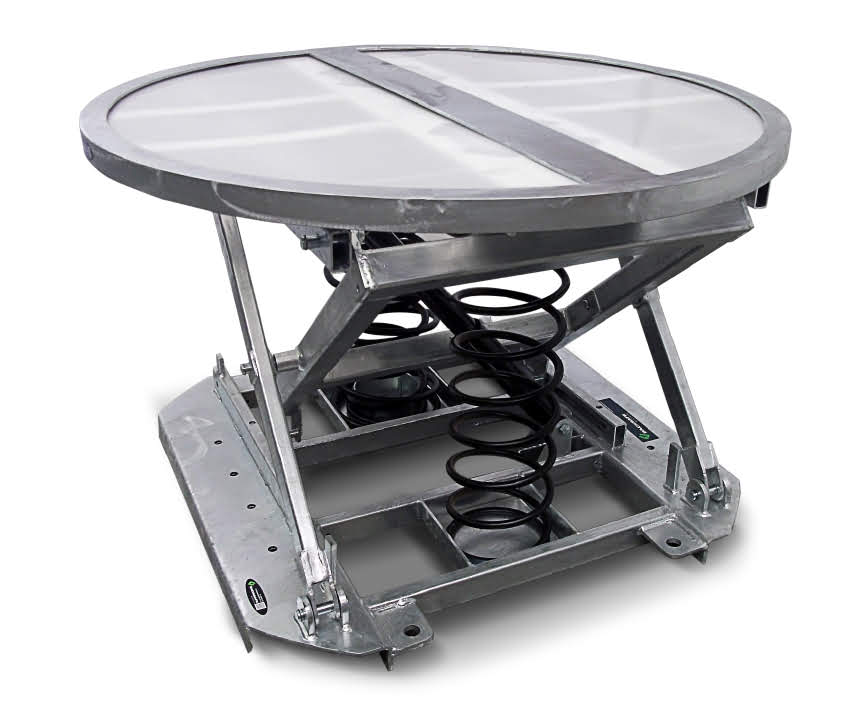

The STURGO® Spring Loaded Pallet Lifter / Positioner is a load elevating and lowering device designed to eliminate the bending required when loading or unloading palletised goods.  The STURGO® Spring Loaded Pallet Lifter / Positioner is a simple, robust mechanism consisting of a scissor lift between two steel platforms. The lifting force is generated by heavy duty compression springs with shock absorbers fitted to dampen the vertical movement of the load.  A selection of springs is available to suit a wide range of loads up to two tonnes.

Features:

• Quick and easy capacity changes
• Built in sockets suit pallet jack or forklift transport
• Turntable top allows load to be rotated

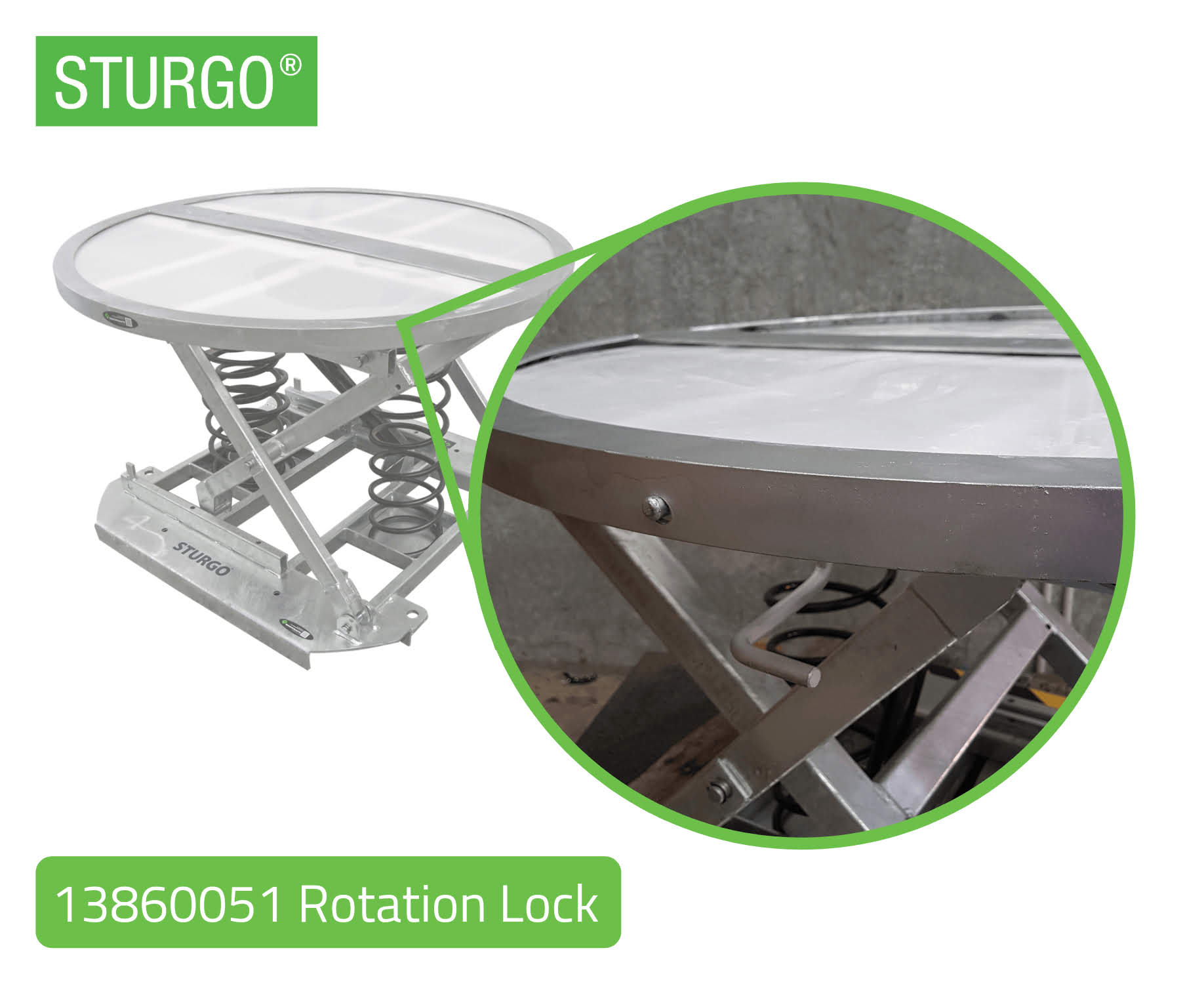

• Optional Rotation Lock allows top to be locked in stationary position

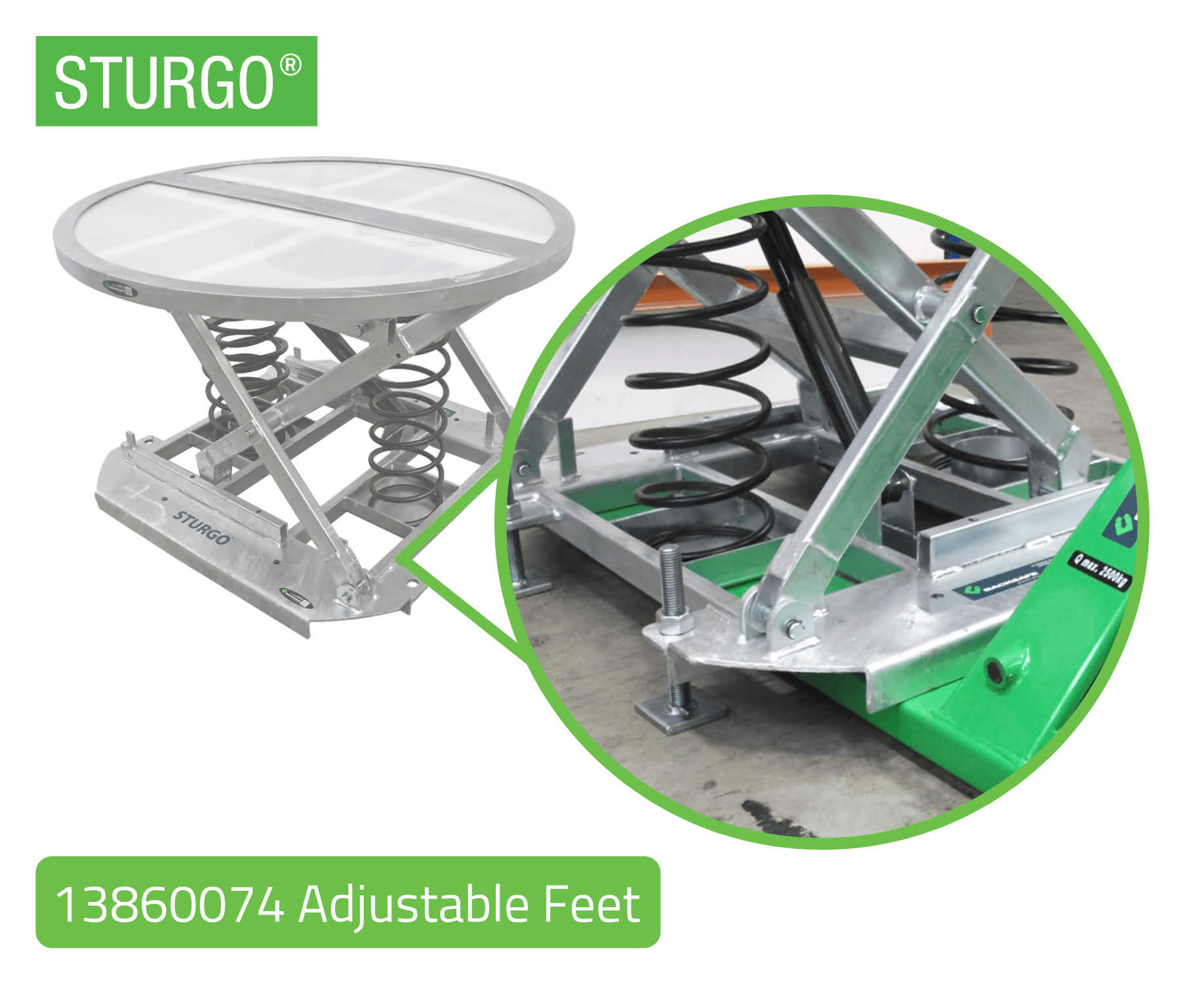

• Optional Adjustable Feet for uneven surfaces
• Optional Castors available for easy mobility

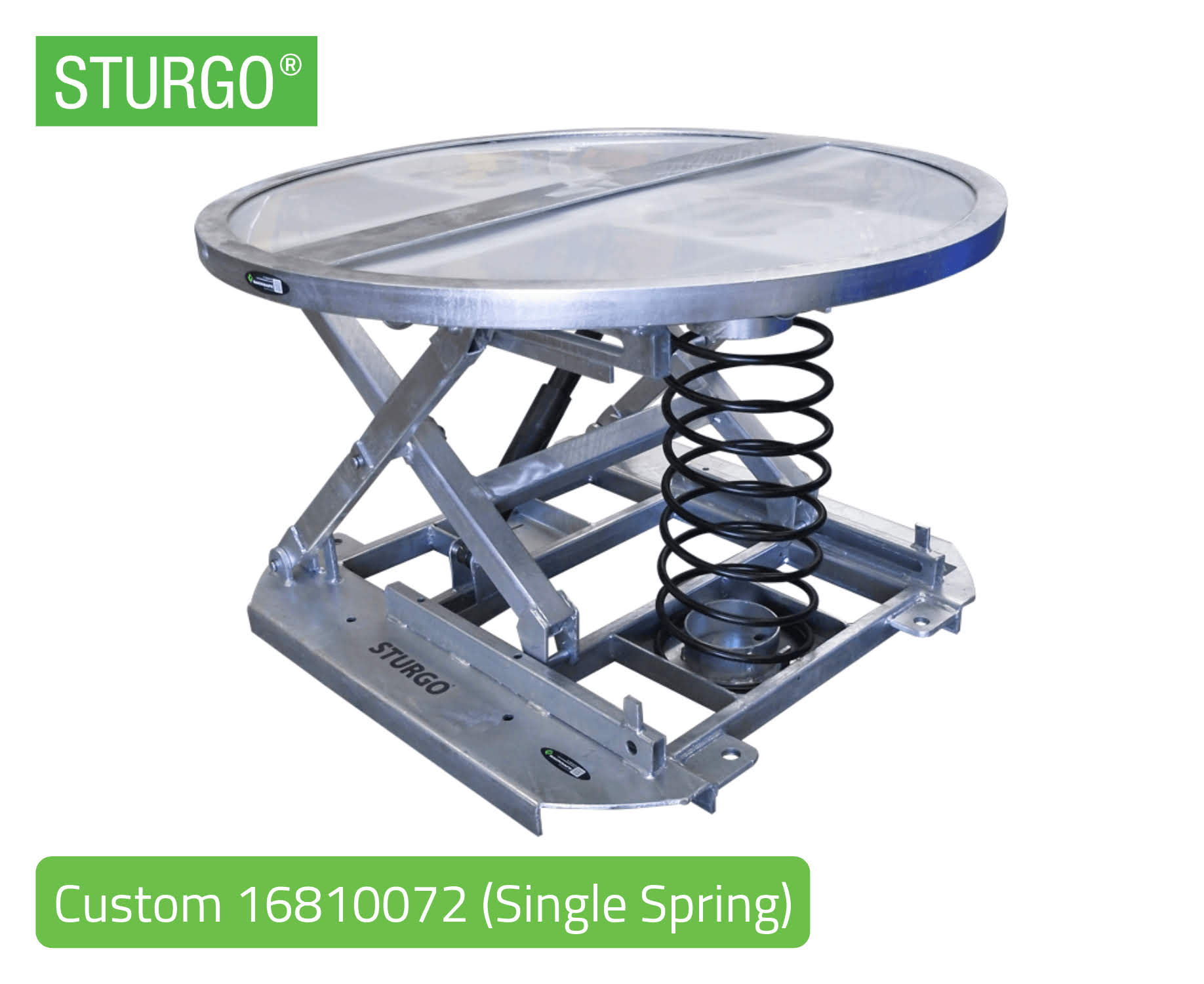

• Customisation available - ask us how we can tailor to your requirements!





Specifications - Model 16810072
Capacity	2000kg
Compressed Height	230mm
Extended Height	700mm
Table diameter	1100mm
Unit Weight	160kg

A range of options and accessories are available to allow the Sturgo Spring Loaded Pallet Lifter / Positioner to be even more versatile in a wide range of applications.

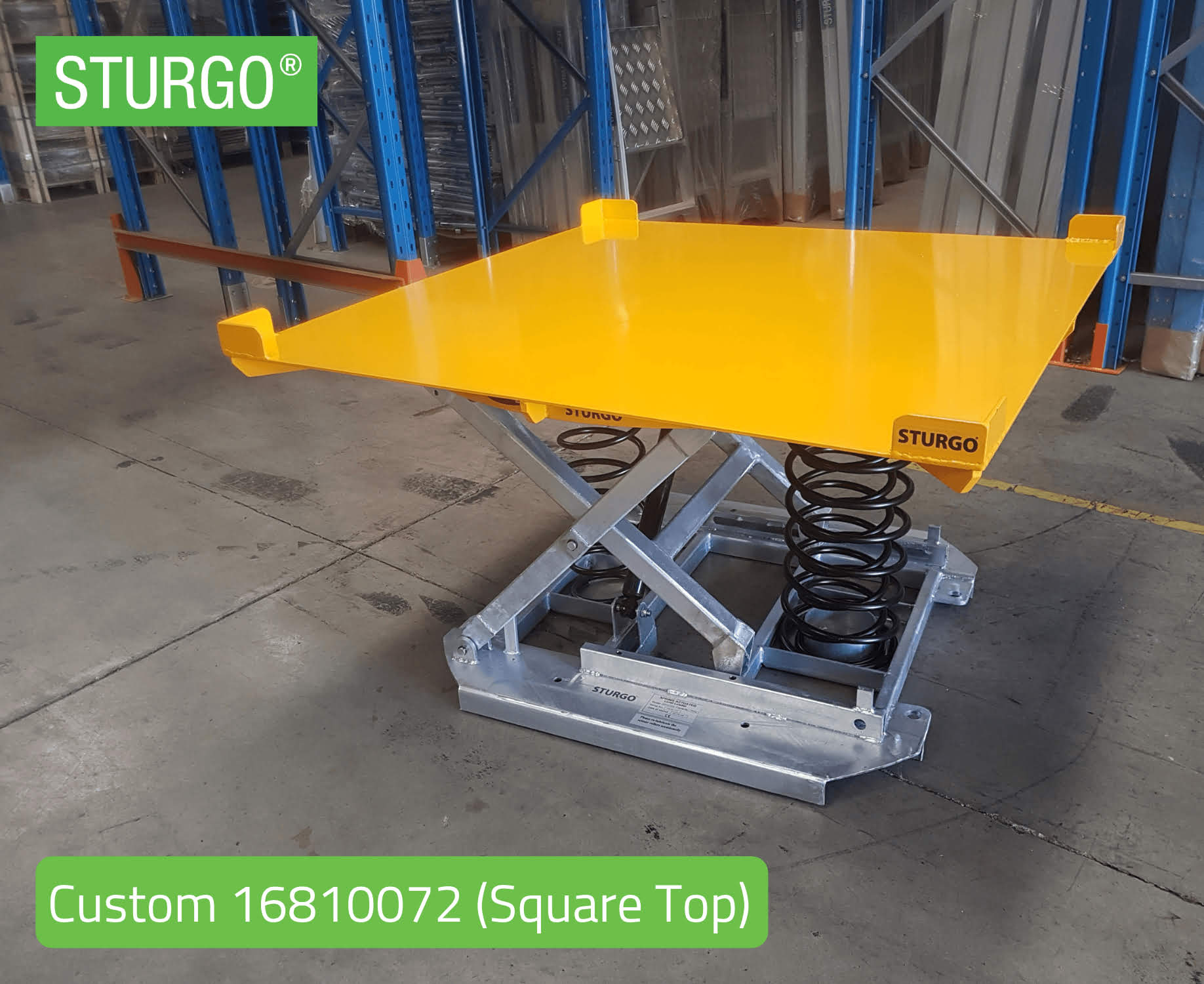

• Both a rotating top (as pictured above) or a fixed square top is available. A turntable brake can be fitted to allow the rotating top to be secured in a fixed position when required.
• STURGO® Pallet Lifter / Positioner mobile allows for easy manoeuvrability, the mobile pallet positioner is limited to a maximum capacity of 1400kg supplied with heavy duty industrial castors.
• Plastic safety sheet to protect hands and fingers
• Springs quick and easy to change if  necessary with hinged release mechanism
• Durable galvanised frame guaranteed for 3 years
• Set and forget springs no need for power, air or operator adjustment
• Forklift tine sockets for easy relocation
• Holes for optional adjustable feet for uneven floors
• A turntable brake can be fitted to allow the rotating top to be secured in a fixed position when required
• A selection of springs is available to suit a wide range of loads up to two tonnes
• Built in Fork Pockets Skate
