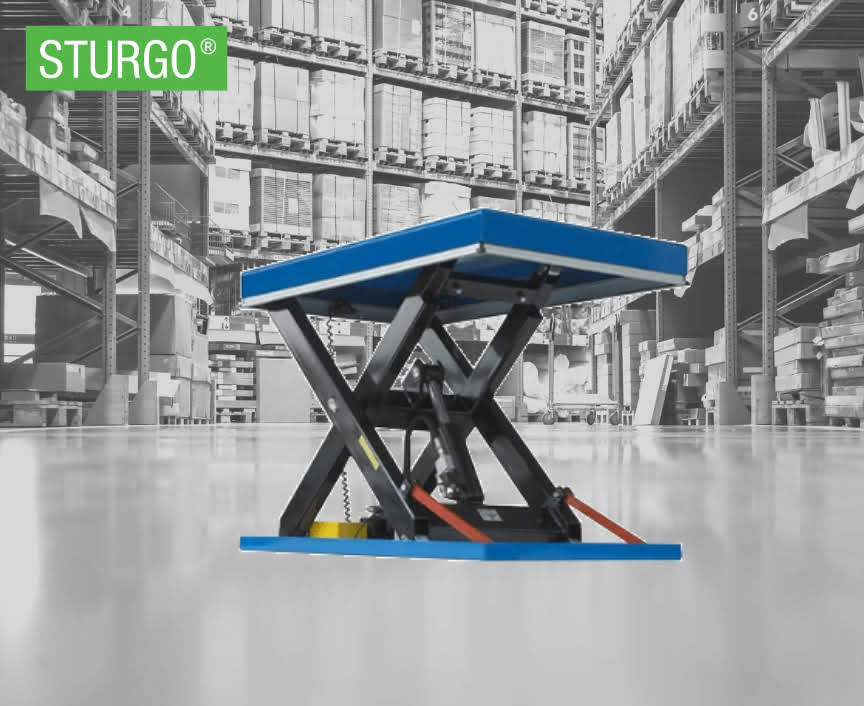

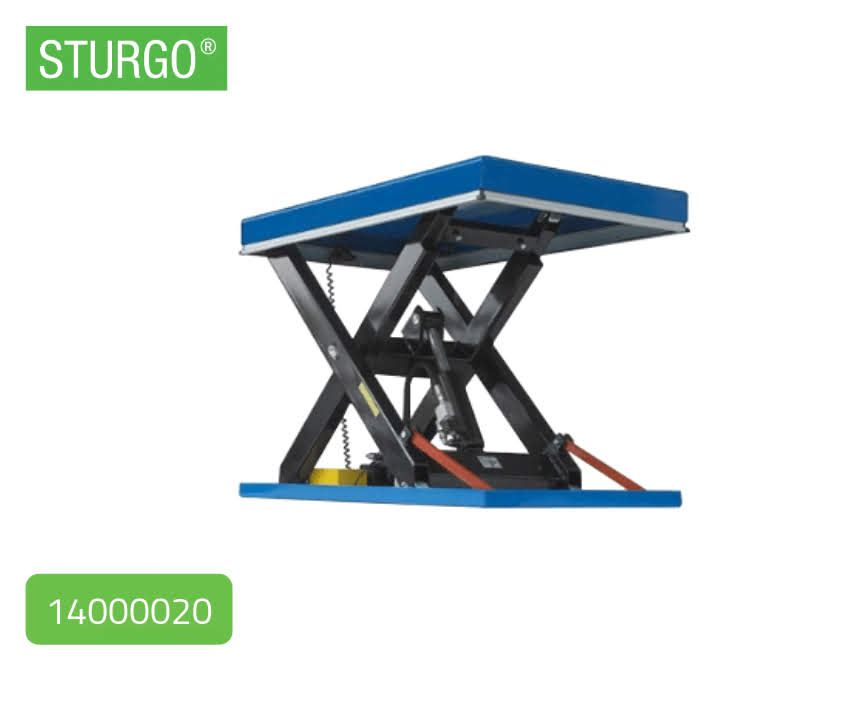

STURGO® Pallet Lift Table

  • Overview

    • Model Number: 14000020
    • Product Name: STURGO® Pallet Lift Table

    Features:

    • Available in 1000kg, 2000kg or 4000kg load capacity models
    • Electric motor mounted underneath table
    • Safety trip bar around the perimeter can sense foreign objects and cease moving
    • Pendant hand controller for operating - 24Volt with 4m cable
    • Cylinders fitted with a hose burst valve
    • Box beam scissor arms for lateral stability
    • Safety props for service and maintenance work
    • Class IP55 protective electrical components
    • Constant pressure push button controls
    • Upper travel limit switch with easy adjustment of stroke
  • Specification

    Model Description Load Capacity Platform Size Max Lift height Min Lift Height
    14000020 Sturgo® Pallet Lift Table 1000kg 1200 x 1200mm 1000mm 180mm
    14000011 Sturgo® Pallet Lift Table 2000kg 1350 x 1200mm 1050mm 230mm
    14000021 Sturgo® Pallet Lift Table 4000kg 1350 x 1200mm 1120mm 300mm
  • Documents

Back To Search
Need more information? Contact Us

Choose your quantities below

Code
Description
Qty
  • 14000020
    STURGO® Pallet Lift Table 1200 x 1200 - 1000kg
  • 14000011
    STURGO® Pallet Lift Table 1350 x 1200 - 2000kg
  • 14000021
    STURGO® Pallet Lift Table 1350 x 1200 - 4000kg

If you're ordering in bulk you may be entitled to better pricing! Please contact our friendly sales team at sales@backsafe-australia.com.au or on 1300 305 314 to find out more

Continue Shopping Add to Cart
