Tipping Bins - Bulk Waste

  • Overview

    • Model Number: 11640076
    • Product Name: Tipping Bins - Bulk Waste

    Features:

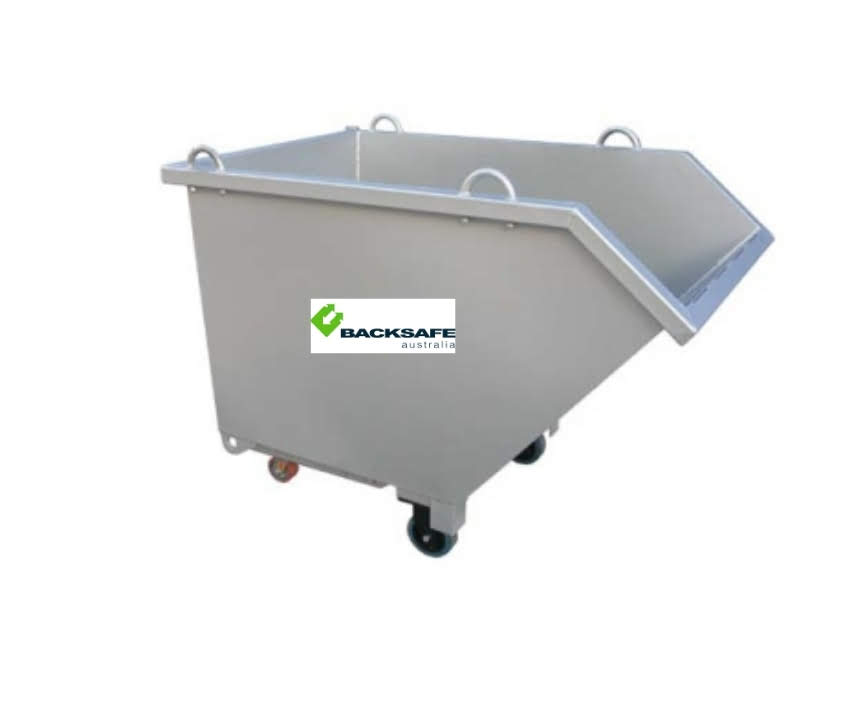

    Bulk Waste Tipping Bins
    • Made from 5mm plate with channel reinforcement around the top lip.
    • SWL 3000kg
    • Oversized fork pockets suitable for larger forklifts - 180 x 80mm
    • Self-dumping mechanism underneath the bin allows operator to remain seated in forklift
    • Standard finish is enamel paint over primed steel
    • Optional Crane Lugs and Lid also available

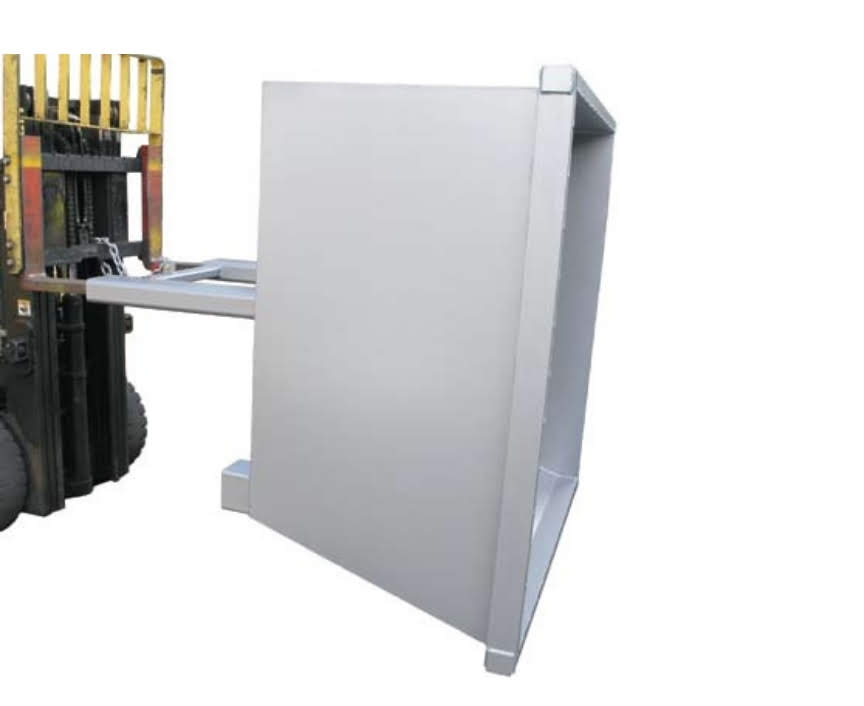

    Manual Forward Bulk Bin Tippers
    • Manufactured to suit the bin dimensions specified by the customer
    • Designed as a slip-on forklift attachment and able to be rotated 180º without the forklift operator leaving their seat
    • Safety chain prevents the unit from disengaging from the forklift arms
    • Quick and easy transport and emptying of bulk bins
    • Hot-dipped Galvanised finish or Painted Enamel finish
    • SWL 1500kg
    • Fork Pocket Centres: 165 x 65mm
    Hydraulic Forward Bulk Bin Tippers
    •  Ideal for handling and emptying bins in agricultural and manufacturing industries
    • Slip-on Forklift attachment only requires a single hydraulic function
    • A purpose built hydraulic sequencing valve eliminates the potential to drop the bin (rotation will not commence until the bin is correctly restrained), while the gentle action of the clamp arms prevents damage to the bins
    • The standard unit will suit bins up to 1200mm square, with a height range of 675 to 925mm
    • SWL 1000kg
    • Fork Pockets: 155 x 55mm
    Hydraulic Forward Megabin Tippers
    • Designed for fast, safe and efficient emptying of Megabins commonly used in the manufacturing, agriculture and fresh produce industries
    • Drive-in fork pockets and quick connect hoses
    • Only requires one hydraulic function to operate
    • Fork Pocket size: 140 x 50mm
    • Tipping Angle: 130º
    • Max. Bin Height: 850mm

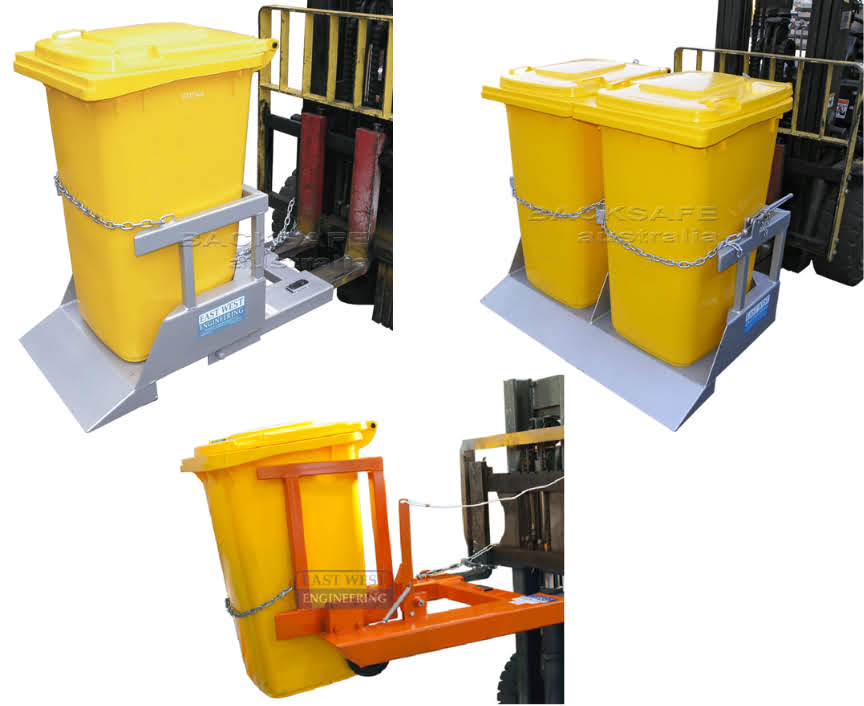

    Forward Bulk Wheelie Bin Tippers
    • Designed to suit 660L and 1100L bulk Wheelie Bins. May also be compatible with 500L cube bins.
    • Complies with Australian Standards
    • Can be used with a forklift or overhead crane
    • Forklift/Crane Operator can empty the bin by pulling a draw chord from their seat
    • Custom brackets with ratchet tensioners ensure simple, secure fastening of the bin to the attachment
    • Fork Pocket Size: 180 x 65mm
  • Specification



    Model Description Finish Width Length Height SWL Unit Weight
    11640076 Bulk Waste Tipping Bin - 4.3m3 Painted Primed Steel 1125mm 1900mm 2510mm 3000kg 950kg
    11640186 Bulk Waste Tipping Bin - 5.4m3 Painted Primed Steel 1125mm 1900mm 3110mm 3000kg 1050kg
    11640166 Forward Bulk Wheelie Bin Tipper TBC Suits 660L or 1100L Wheelie Bins 500kg 185kg
    11640185 Manual Forward Bulk Tipper Painted Enamel TBC TBC TBC 1500kg TBC
    11640184 Manual Forward Bulk Tipper Hot-dip Galvanised TBC TBC TBC 1500kg TBC
    11640187 Hydraulic Forward Bulk Bin Tipper Painted up to 1200mm x 1200mm between 675 - 925mm 1000kg 290kg
    11640188 Hydraulic Forward Megabin Tipper Painted Suits Megabins 1000kg at 600mm height 185kg
