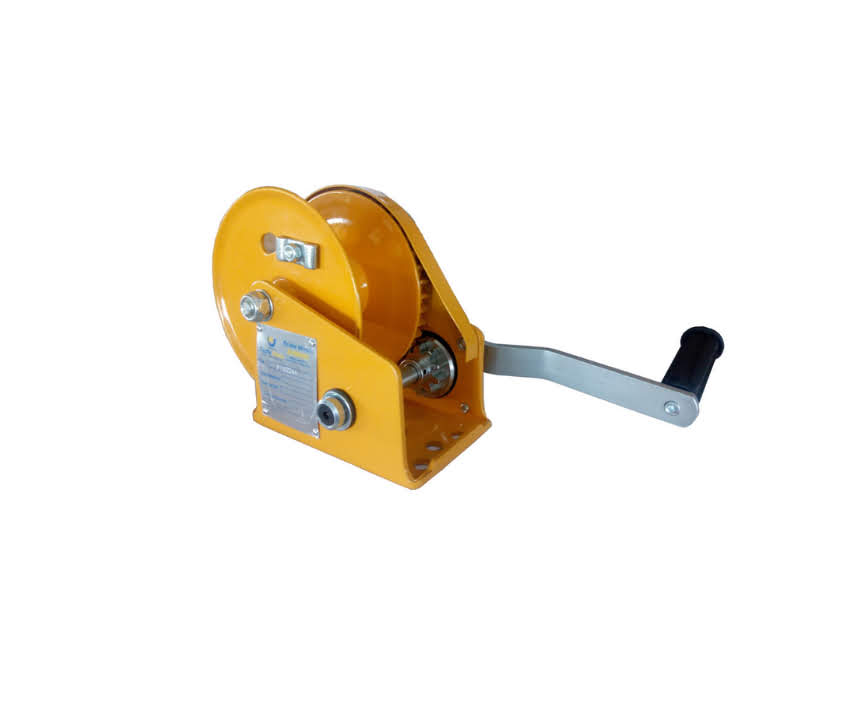

Brake Hand Winches

  • Overview

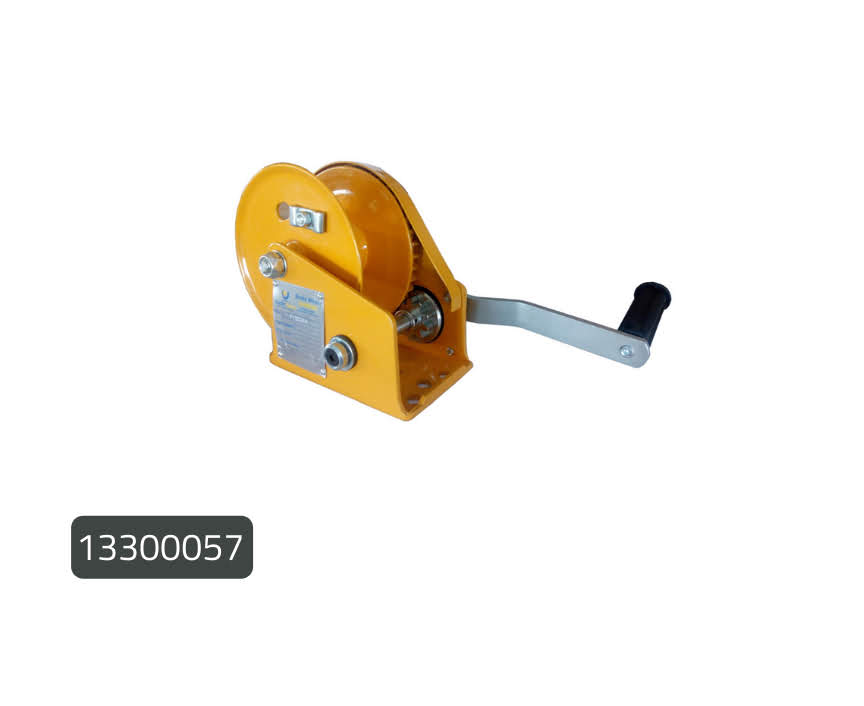

    • Model Number: 13300057
    • Product Name: Brake Hand Winches

    Features:

    • Compact and Lightweight
    • Complies to AS1418.2 when fitted with approved wire or rope fittings

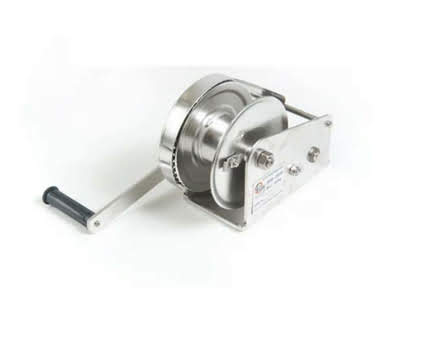

    • Powder coated (also available in Stainless Steel)
    • Positive Weston-style brake will hold the load in any position
    • Enclosed mechanical componenets for added safety and protection
    • Rope to drum fixing clamp provided
    • Strong removable handles
    • Heat-treated gears
    • High precision construction minimises gear noise
    • Optional:  Wire Rope included
  • Specification

    Models including Wire Rope

    Model

    Description

    Pulling Capacity (kg)

    Lifting Capacity (kg)

    Hand Force Required (kg)

    Gear Ratio

    Hub Diameter (mm)

    Cable Diameter (mm)

    Handle Length (mm)

    Unit Weight (kg)

    13300057

    Hand Brake Winch with Wire Rope

    370kg

    180kg

    14.5kg

    4.1:1

    40mm

    Ø4.0 x 30

    160mm

    3kg

    13300020

    Hand Brake Winch with Wire Rope

    545kg

    270kg

    15kg

    4.1:1

    50mm

    Ø5.0 x 20

    210mm

    3.3kg

    13300179

    Hand Brake Winch with Wire Rope

    820kg

    410kg

    22kg

    5:1

    70mm

    Ø6.0 x 22

    320mm

    8kg

    13300178

    Hand Brake Winch with Wire Rope

    1200kg

    600kg

    19kg

    10:1

    80mm

    Ø8.0 x 16

    320mm

    10.3kg

    13300205

    Hand Brake Winch with Wire Rope

    1700kg

    850kg

    16kg

    22.2:1

    60mm

    Ø8.0 x 32

    300mm

    13.5kg



    Models without Wire Rope included

    Model Description Pulling Capacity (kg) Lifting Capacity (kg) Hand Force Required (kg) Gear Ratio Hub Diameter (mm) Cable Diameter (mm) Handle Length (mm) Unit Weight (kg)
    13300019 Hand Brake Winch 370kg 180kg 14.5kg 4.1:1 40mm Ø4.0 x 30 160mm 3kg
    13300018 Hand Brake Winch 545kg 270kg 15kg 4.1:1 50mm Ø5.0 x 20 210mm 3.3kg

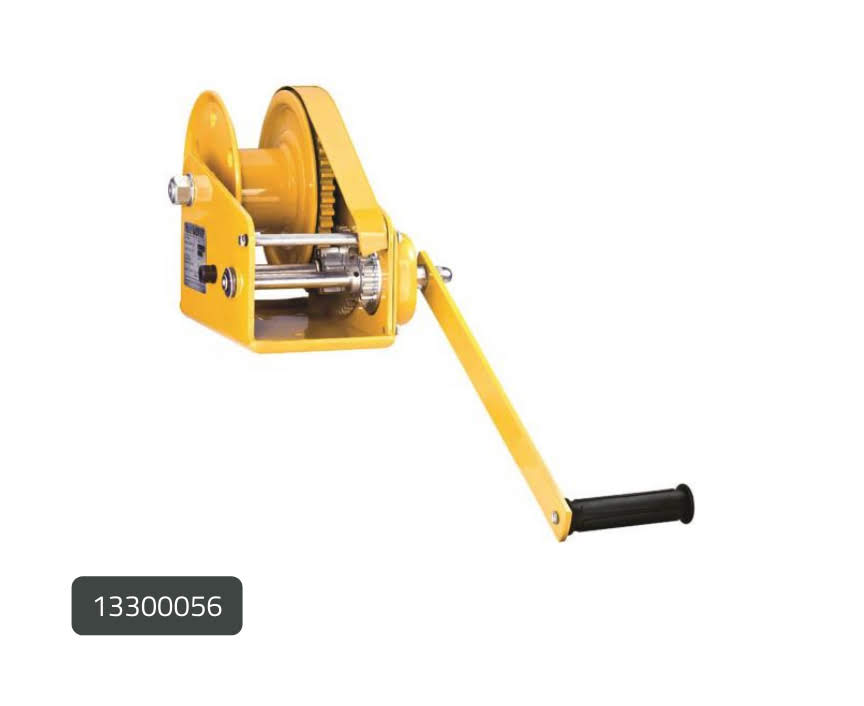

    13300056 Hand Brake Winch 820kg 410kg 22kg 5:1 70mm Ø6.0 x 22 320mm 8kg
    13300172 Hand Brake Winch 1200kg 600kg 19kg 10:1 80mm Ø8.0 x 16 320mm 10.3kg
    13300206 Hand Brake Winch 1700kg 850kg 16kg 22.2:1 60mm Ø8.0 x 32 300mm 13.5kg
Back To Search
Need more information? Contact Us

Choose your quantities below

Code
Description
Qty
  • 13300178
    Brake Hand Winch with Wire Rope - 1200kg capacity
  • 13300205
    Brake Hand Winch with Wire Rope - 1700kg capacity
  • 13300057
    Brake Hand Winch with Wire Rope - 370kg capacity
  • 13300020
    Brake Hand Winch with Wire Rope - 545kg capacity
  • 13300179
    Brake Hand Winch with Wire Rope - 820kg capacity
  • 13300172
    Brake Hand Winch without Wire Rope - 1200kg Pull capacity
  • 13300206
    Brake Hand Winch without Wire Rope - 1700kg Pull capacity
  • 13300019
    Brake Hand Winch without Wire Rope - 370kg Pull capacity
  • 13300018
    Brake Hand Winch without Wire Rope - 545kg Pull capacity
  • 13300056
    Brake Hand Winch without Wire Rope - 820kg Pull capacity
