STURGO® Gravity Conveyors

  • Overview

    • Model Number: 17500007
    • Product Name: STURGO® Gravity Conveyors

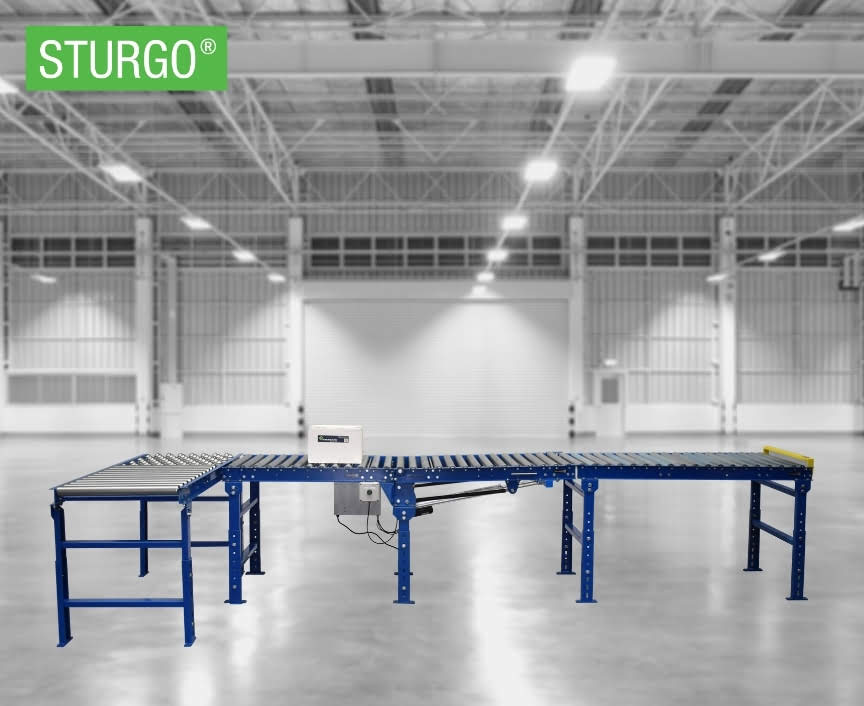

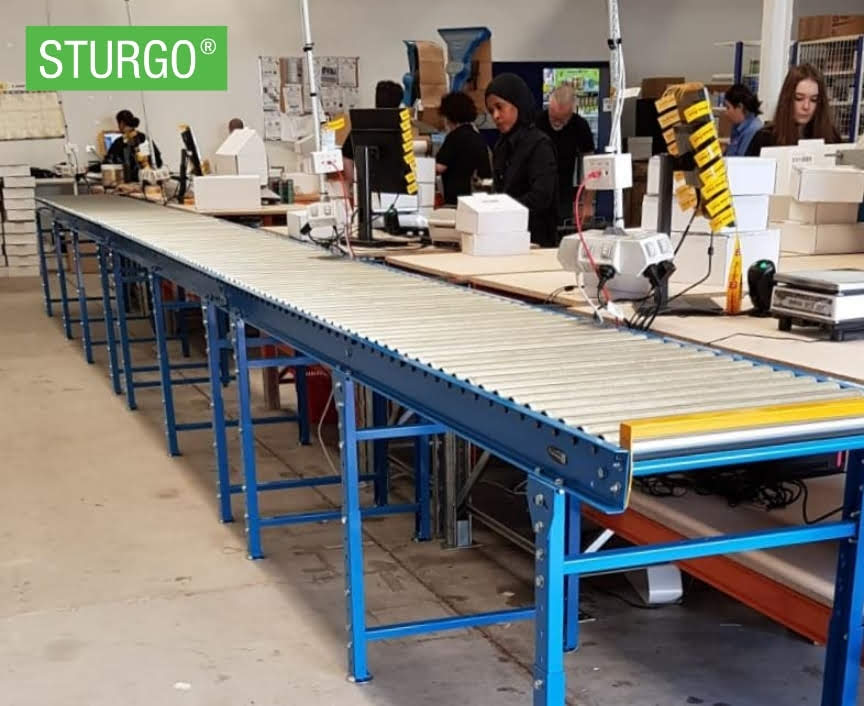

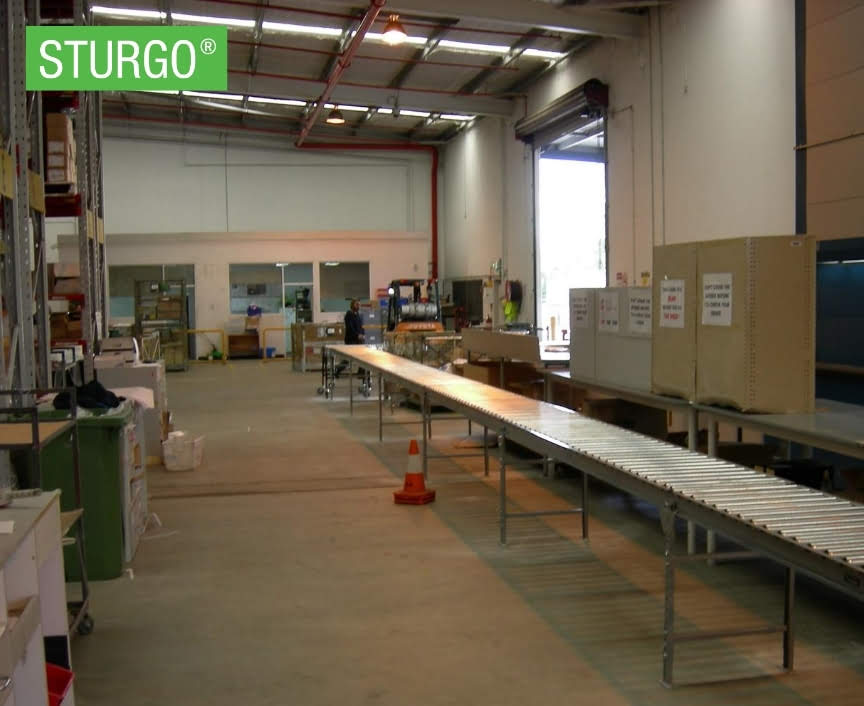

    Conveyor systems provide a solution for workplaces where large volumes of items need to be moved throughout a facility with minimal handling. The STURGO® Gravity Conveyor system has many components available to create a layout to suit each and every situation. Versatile, durable and easy to function, this conveyor system is suited to most environments, from retail despatch areas to rugged mining and exploration camps.


    Features:

    • Steel powder coated frames and support legs (blue)
    • Adjustable support legs provide height of 715 - 1015mm
    • 100kg capacity steel galvanised rollers
    • Adjustable roller pitch
    • 90 degree curved sections for corners
    • Both 400mm and 600mm width systems available

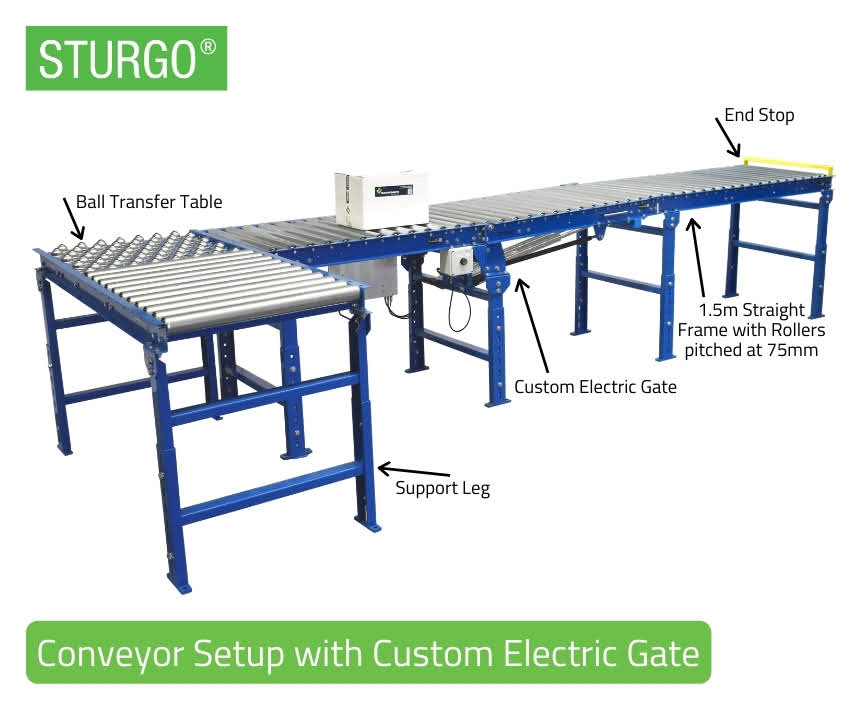

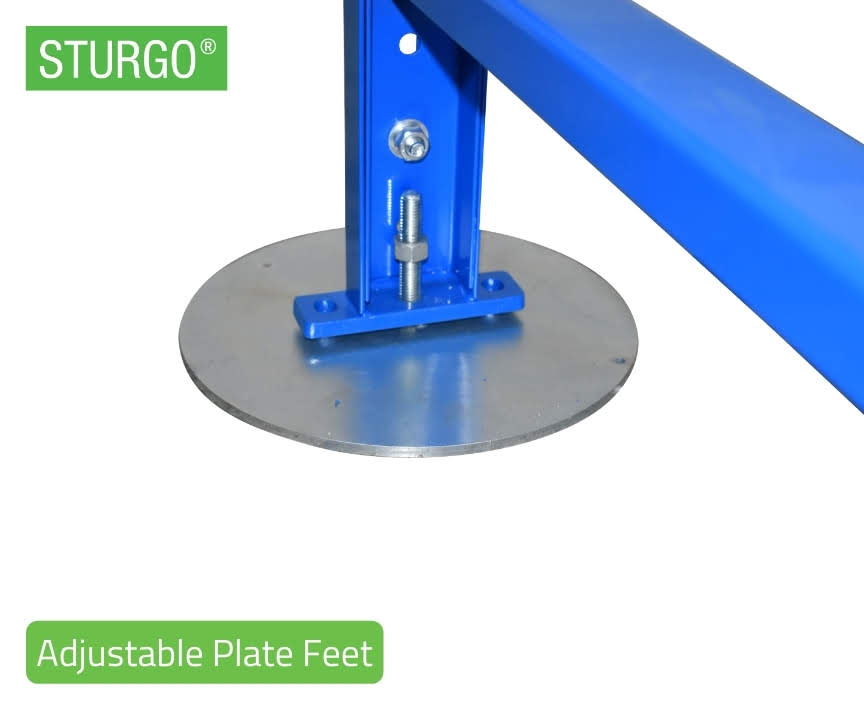

    • Optional features/accessories: End Stop; Gate Section with Gas Assist Lift; Ball Transfer Table; Adjustable Plate Feet
    • Custom modifications can be made to suit your specific requirements
  • Specification

    Conveyor System Components - 400mm Width

    Model Description Dimensions (mm)

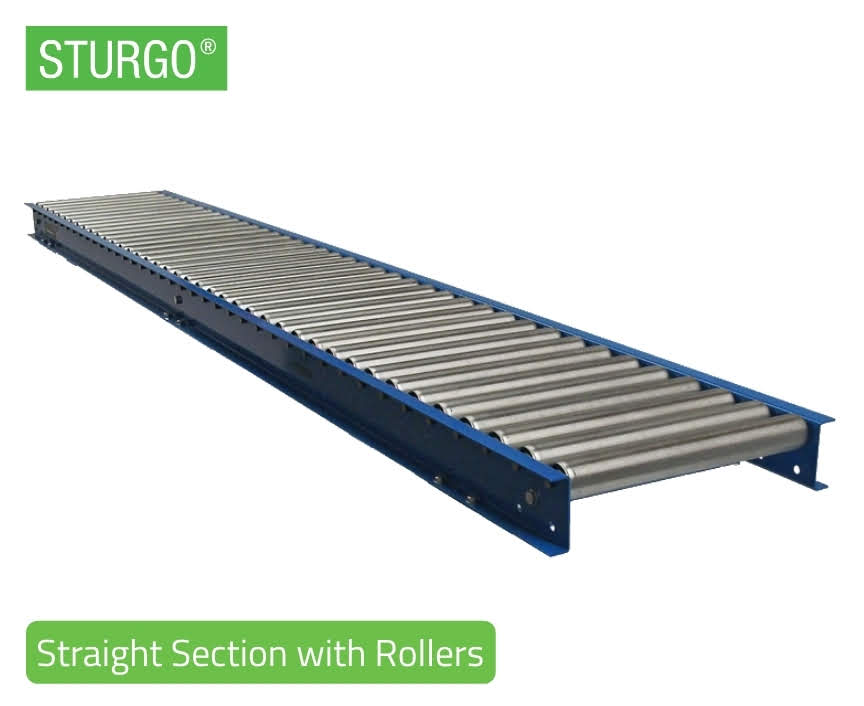

    17500007 Conveyor Frame 3000L x 400W (int.) / 460W (ext.)
    17500025 Conveyor Frame 1500L x 400W (int.) / 460W (ext.)
    17500008 Conveyor Roller 50Ø x 397L

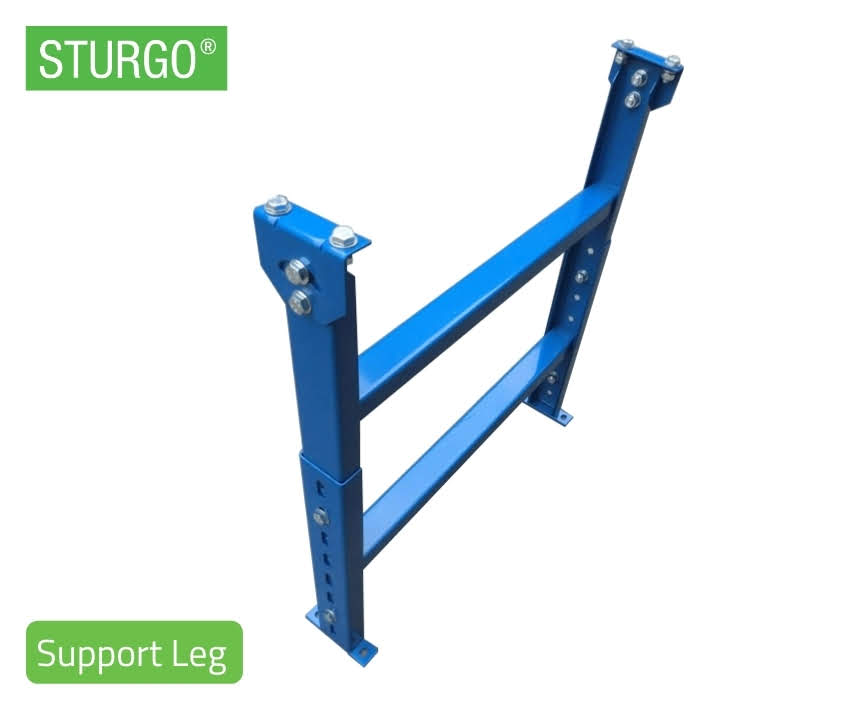

    17500009 Conveyor Support Leg 460W x 715-1015H

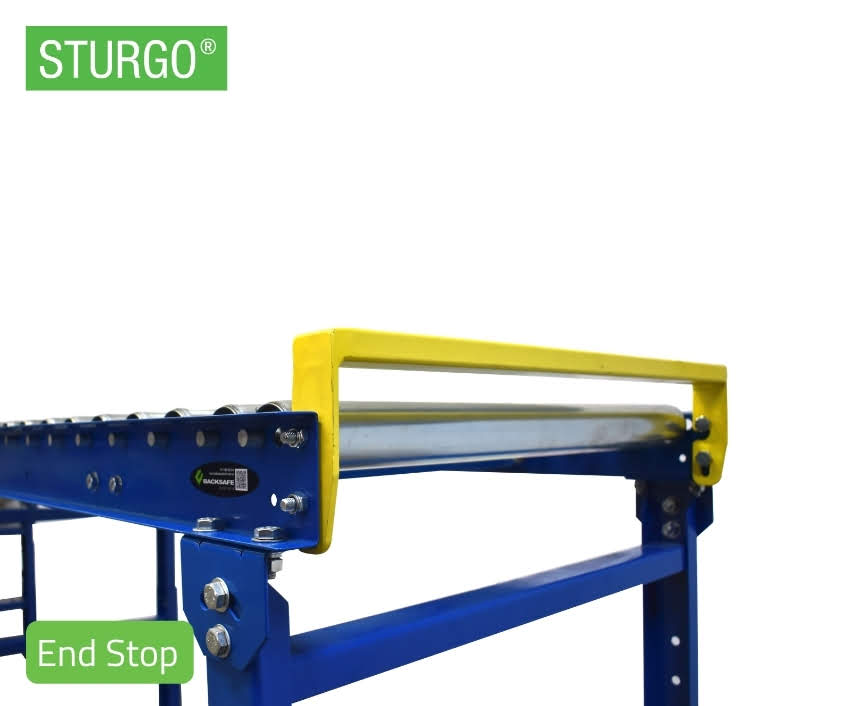

    17500011 Conveyor End Stop 396W x 136H

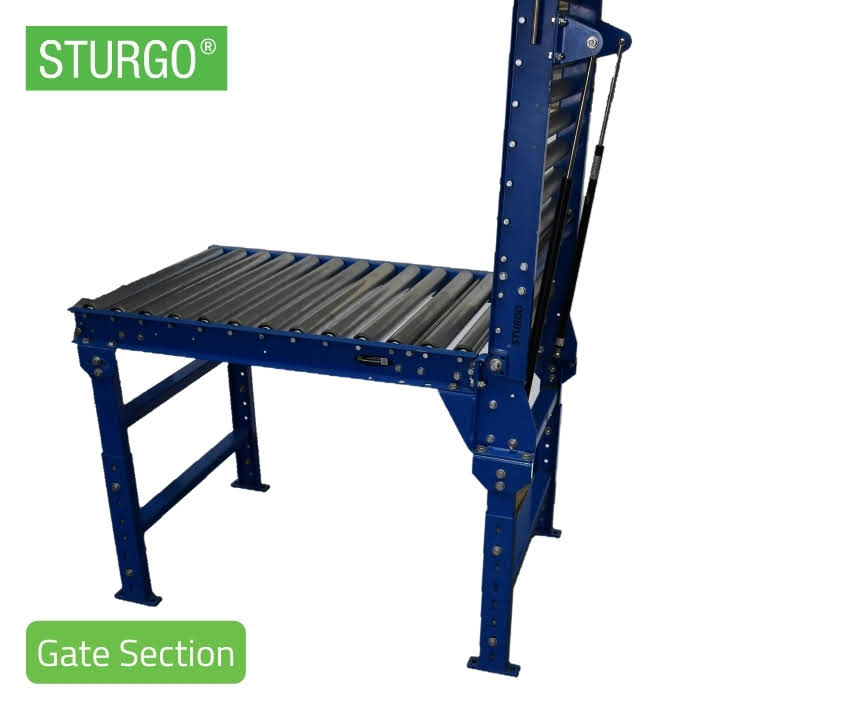

    17500012 Conveyor Gate 2025L (overall) x 1050L (gate) x 400W (int.) / 460W (ext.)

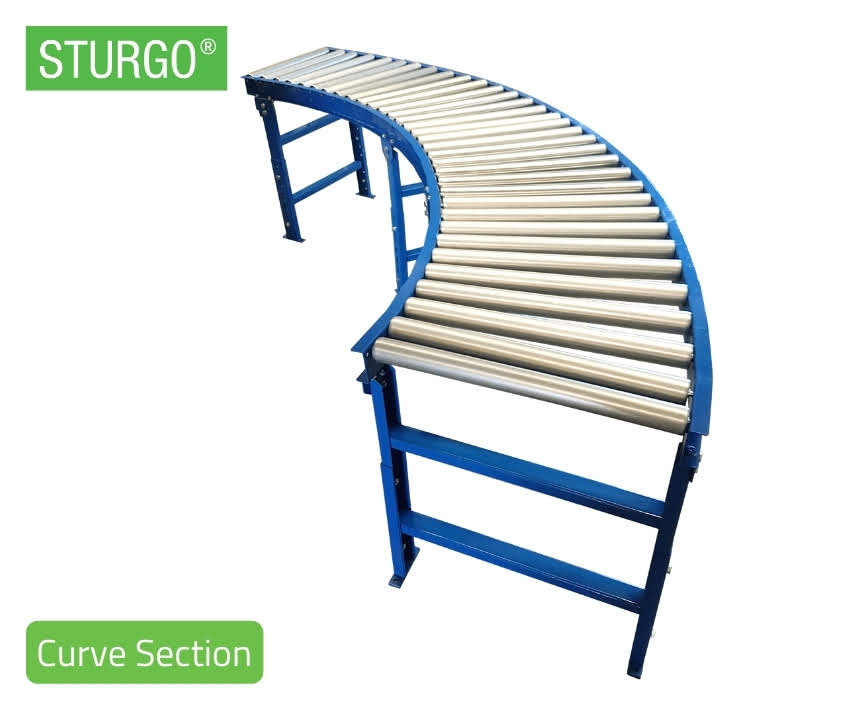

    17500019 Conveyor Curve 90° angle

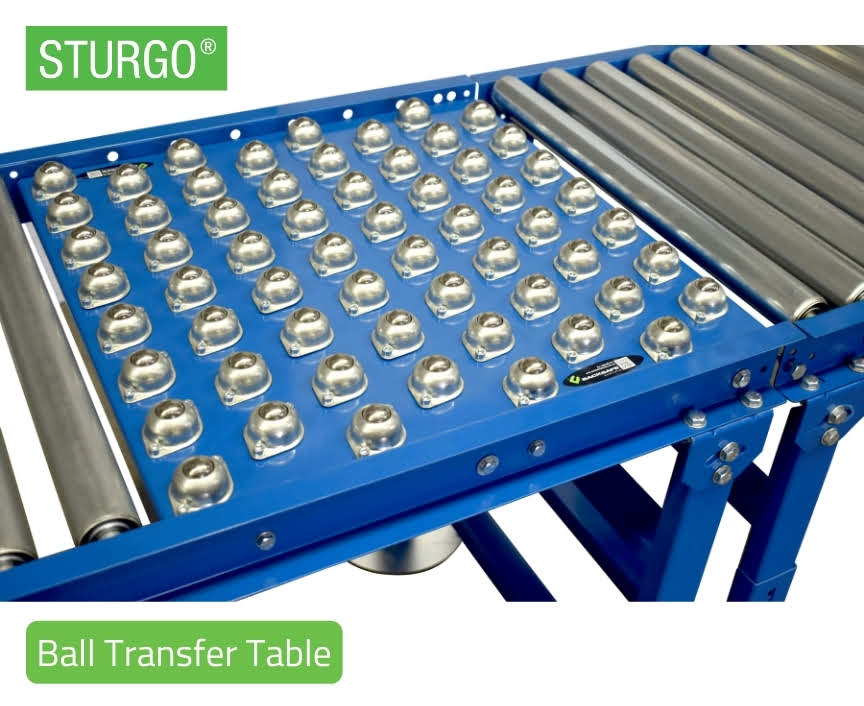

    17500021 Ball Transfer Table 460L x 460W



    Conveyor System Components - 600mm Width

    Model Description Dimensions (mm)
    17500013 Conveyor Frame 3000L x 600W (int.) / 660W (ext.)
    17500026 Conveyor Frame 1500L x 600W (int.) / 660W (ext.)
    17500024 Conveyor Roller 50Ø x 597L
    17500015 Conveyor Support Leg 660W x 715-1015H
    17500016 Conveyor End Stop 596W x 136H
    17500017 Conveyor Gate 2025L (overall) x 1050L (gate) x 600W (int.) / 660W (ext.)
    17500018 Conveyor Curve 90° angle
    17500020 Ball Transfer Table 610L x 610W



    Understanding Gravity Conveyor Pitch

    The conveyor pitch refers to the distance between roller centres. The size and sensitivity of the items your conveyor needs to carry will determine the required conveyor pitch. If the items are large and sturdy, they won't need as much support, so a larger pitch will suffice, however if the items are small or fragile, you want to increase the support and reduce bumpiness with a small pitch.

    Pitch Rollers Required per 1500mm
    75mm 20
    100mm 10
