- Model Number: 11640006
- Product Name: Drum Rotators - Crane Attachments

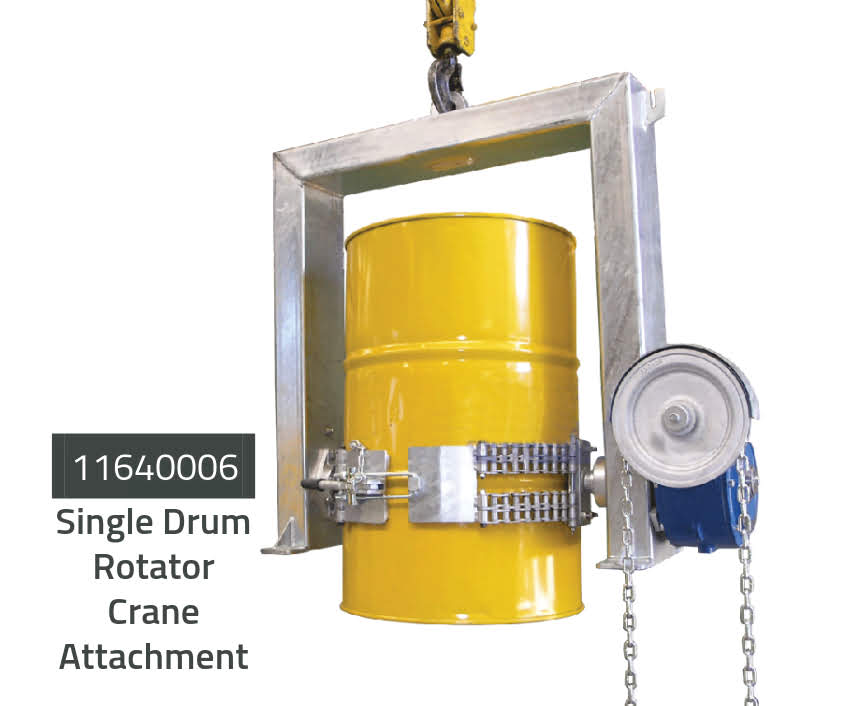

Crane Drum Rotator 1 Tonne - 11640006:
The crane drum rotator is a heavy lift mechanism suitable for mining operations, manufacturers and foundries. Drums are quickly clamped into the holder via twin chain belly straps, allowing 360º rotation.
- 1000kg SWL
- 360º rotational ability
- Rotation Centre to Lifting Eye - 940mm
- Chain Driven gearbox for rotation
- Unit weight 220kg

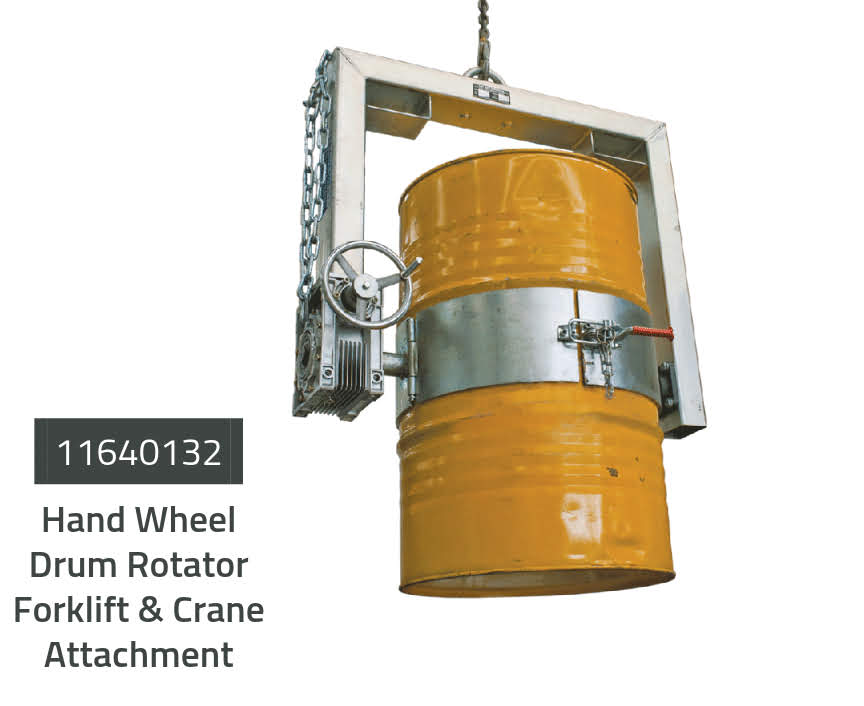

Crane Drum Rotator Hand Wheel 400kg - 11640132:
Designed to lift and rotate 205L steel drums through 360º by overhead crane. A handle driven gearbox controls the rotation and locks the drum in place when the operator stops turning the handle.
- Working Load Limit 400kg
- Can be used with crane or forklift
- Suitable for drum rotation up to chest height
- Rotation controlled via hand wheel
- Belly chain strap and lock secures drum in position
- Locking pin prevents accidental release during rotation
- Automatic braking
- Zinc finish
- Fork Pocket Size: 160 x 65mm
- Unit weight 70kg
