Challenge:
The merge of two major oil & gas companies led to the reconfiguration of their warehousing facilities in Jandakot WA. Existing warehouse pallet racking needed to be relocated between buildings, with new load signage and ratings. New cantilever racking was also required at the site, with a specified height of 8500mm!

Solution:
Backsafe Australia assisted in the re-arrangement of the pallet racking at the Jandakot site. Our install manager, Darren, was onsite for the best part of a week, coordinating the project. Qualified labourers were also contracted to complete the installation, which involved disassembling the racking, moving it between buildings, and reassembling the racking, according to the client’s layout plans.


The cantilever racking was supplied and installed. This included three double-sided rows of racking at 8.5 metres high, 13 arms on each side of the columns, and 147 metres of guide rail at the base of the racking to keep the client’s side loader machine on a straight path down the aisles. The finished product looked most impressive and the client was very pleased, to say the least!


Products:

  • Installation and project management services
  • Cantilever Racking @ 8500mmH (2 x Rows of 14 Columns @ 1500mm centres; 1 x Row of 21 Columns @ 1000mm centres; 26 arms per column; 147 metres of Guide Rail)

Our extensive experience in storage systems can help you reach greater heights! Chat to us today...

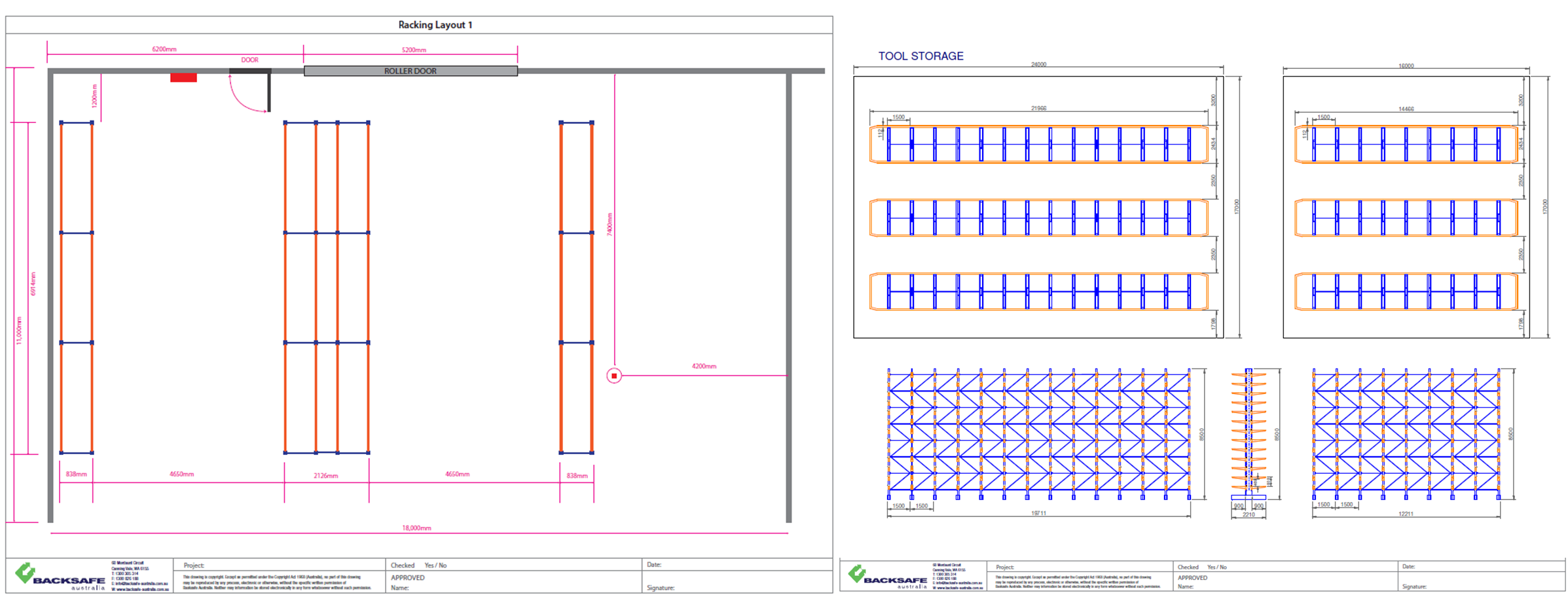

  • Backsafe racking layout plan showing detailed pallet racking and cantilever racking configurations for an oil and gas facility, including dimensions, aisle spacing, and tool storage zones.

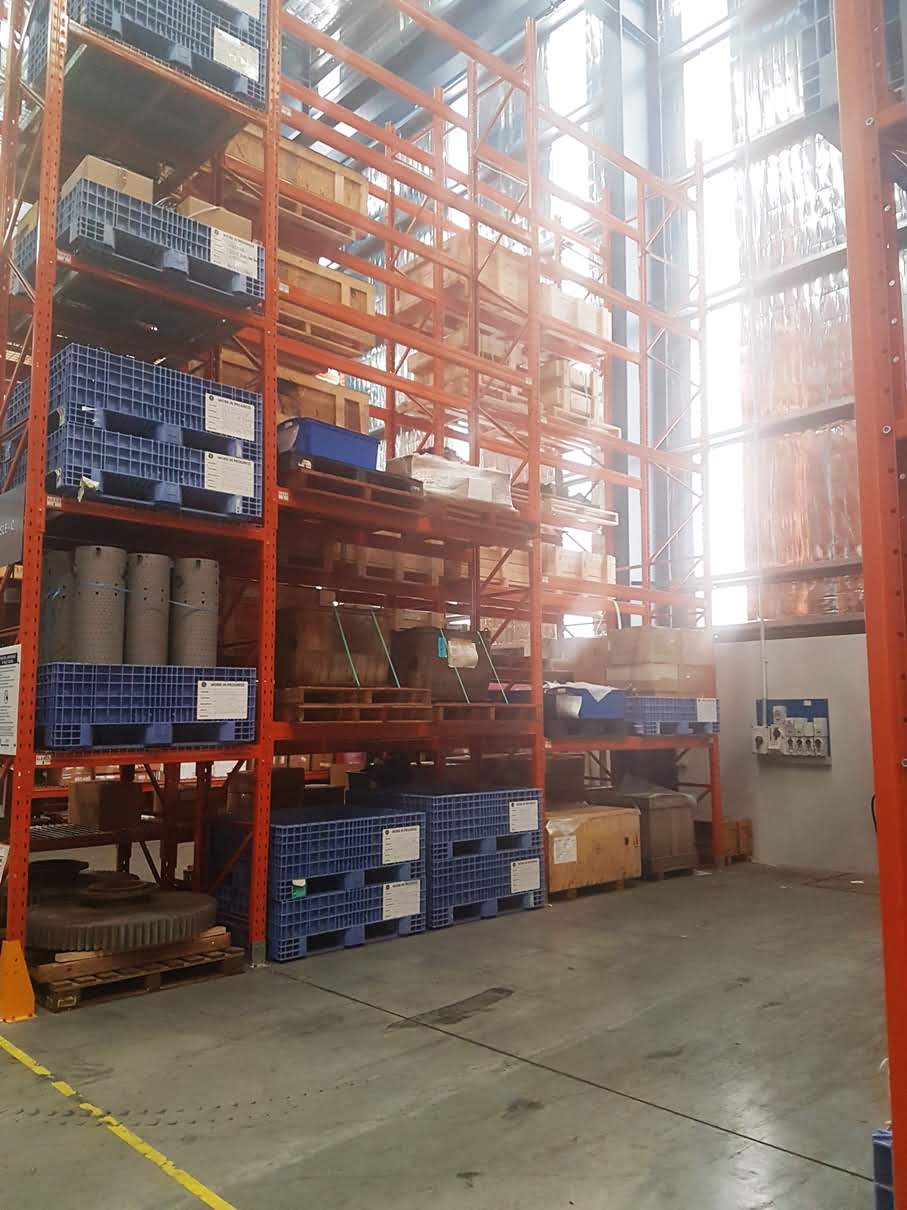

  • Backsafe pallet racking system in an oil and gas warehouse, with orange frames storing blue pallets and assorted industrial equipment in a high-bay storage area.

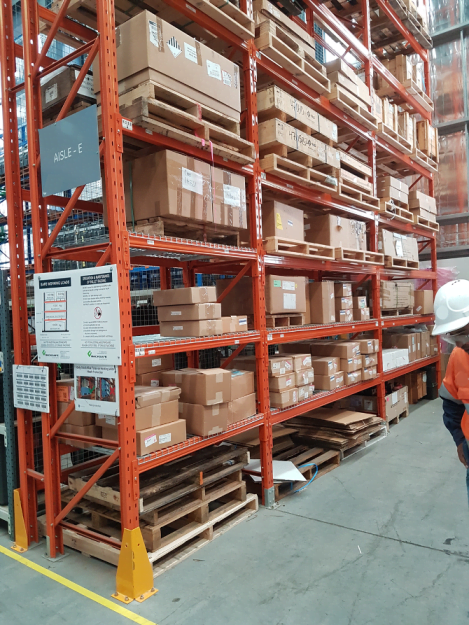

  • Backsafe pallet racking system at an oil and gas warehouse, featuring orange frames and loaded with boxed goods and pallets in Aisle E, with visible safety signage and labels.

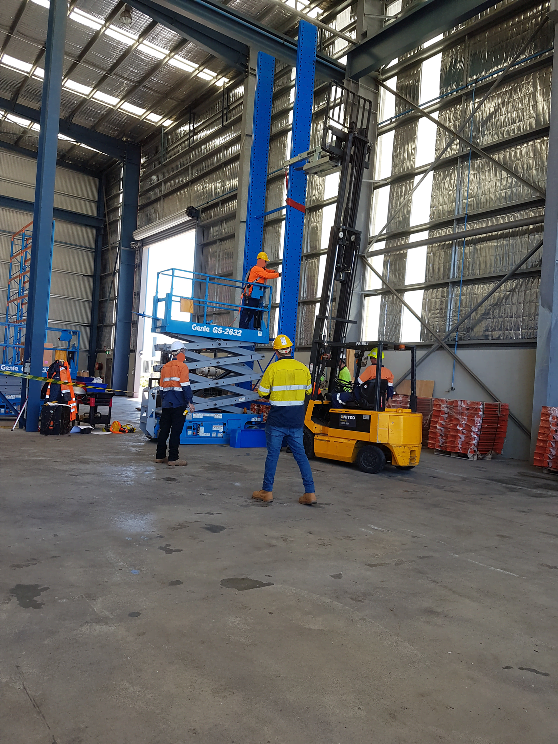

  • Installation of Backsafe cantilever racking system at an oil and gas facility, with workers using a scissor lift and forklift inside a high-bay industrial warehouse

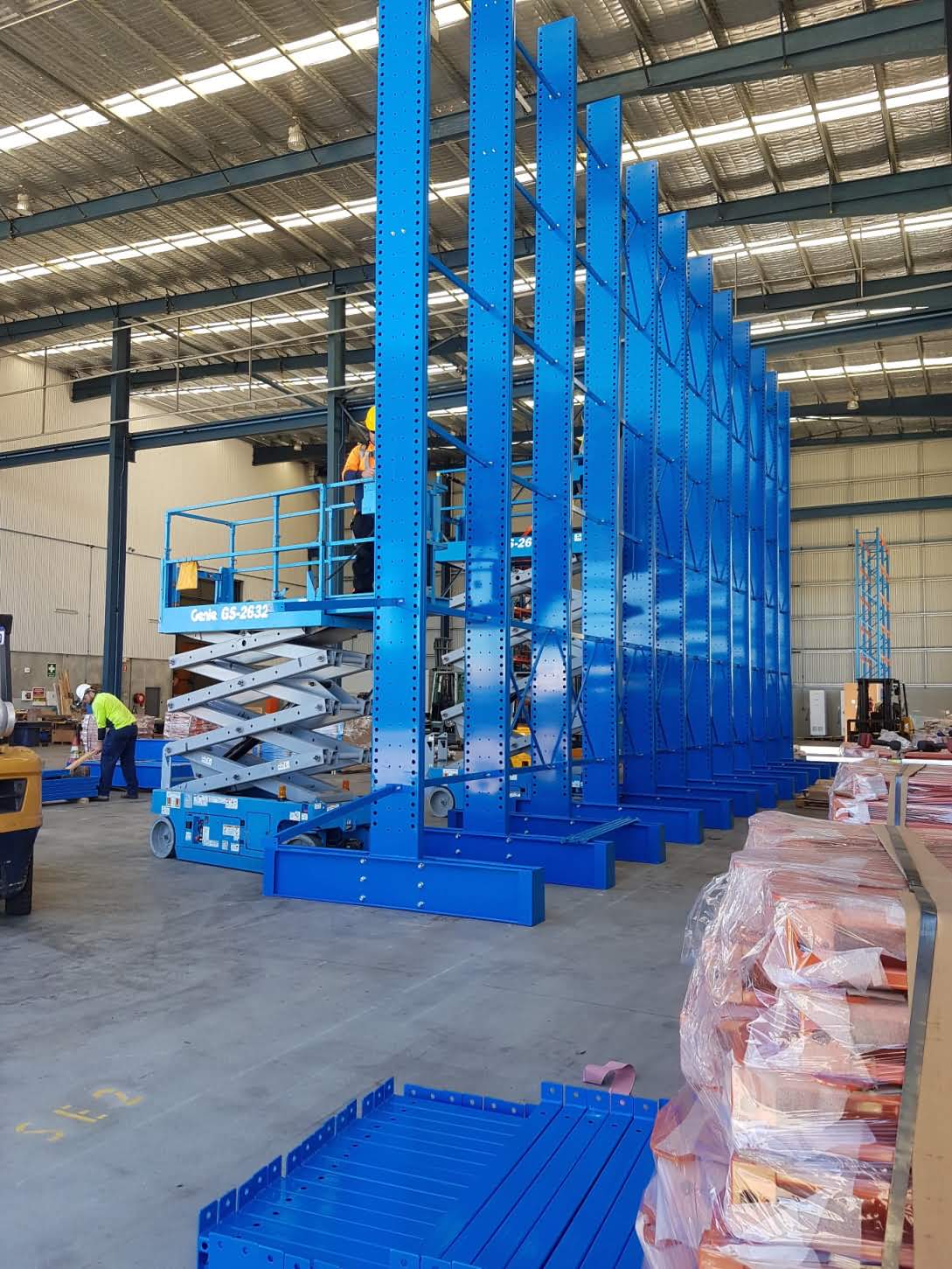

  • Backsafe cantilever racking installation underway at an oil and gas warehouse, with workers on a scissor lift assembling vibrant blue uprights inside a high-ceiling facility.

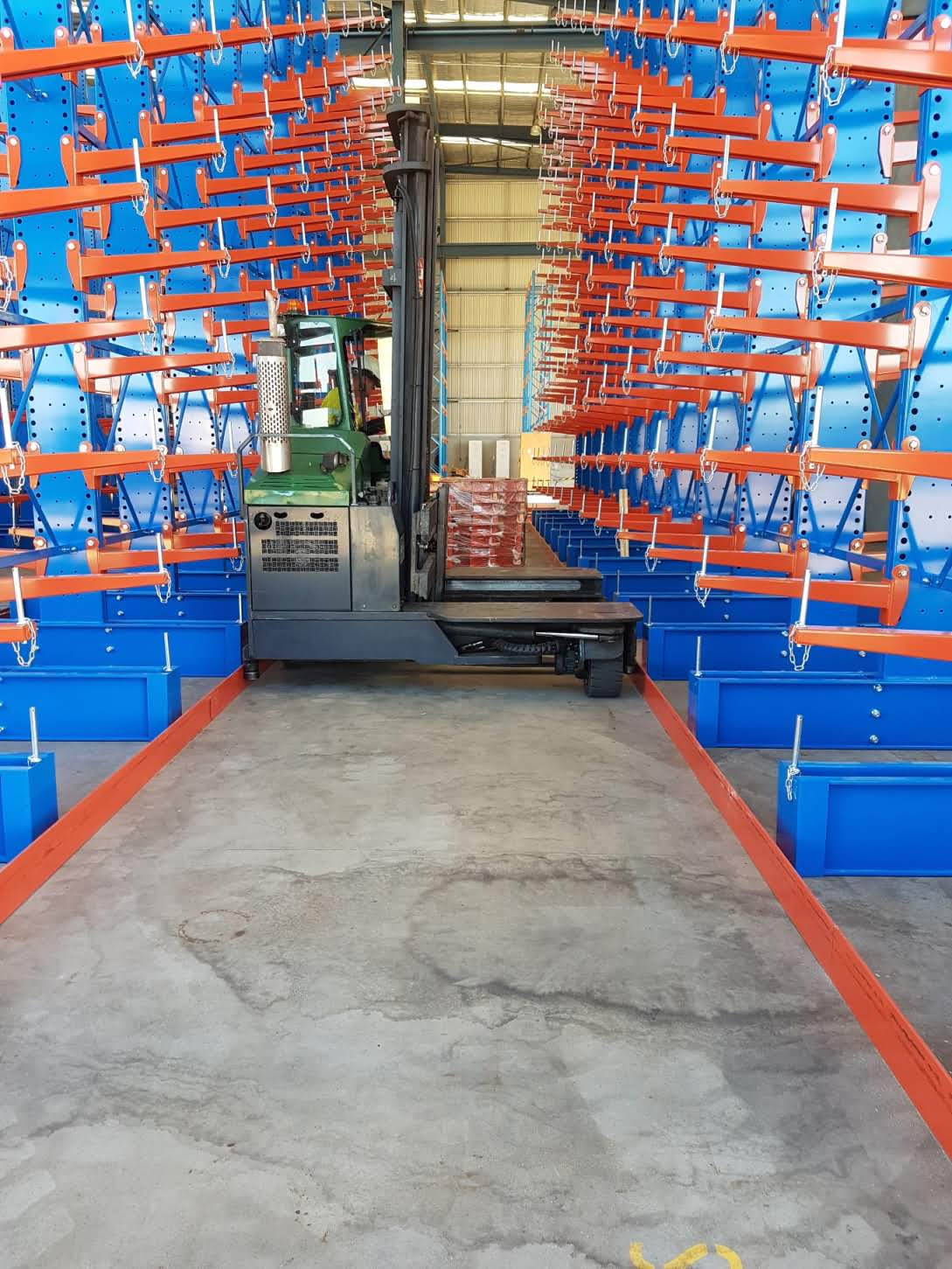

  • Backsafe cantilever racking system with forklift driving between blue and orange arms at an oil and gas warehouse.

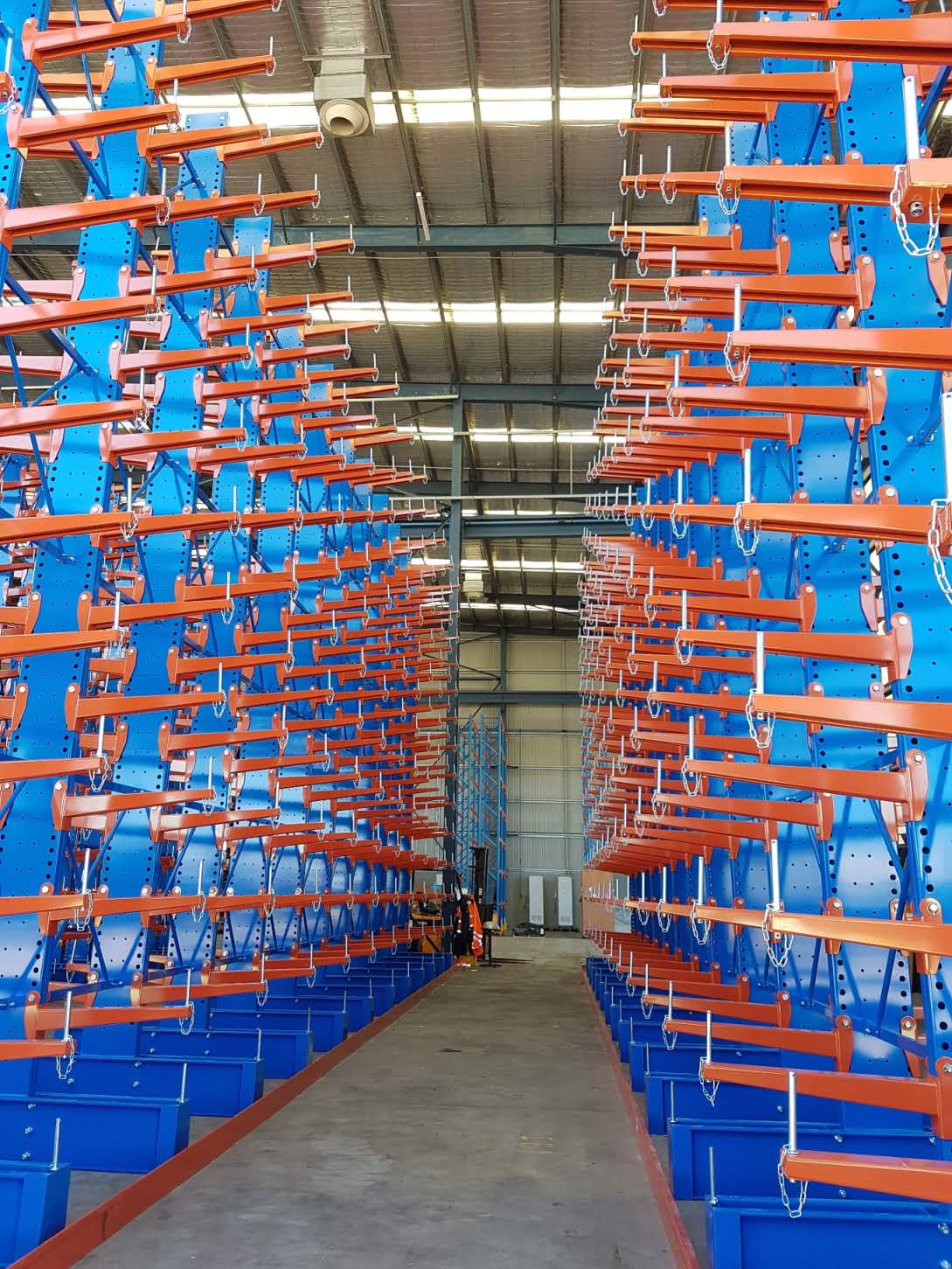

  • Backsafe cantilever racking system installed in an oil and gas warehouse, featuring blue uprights and orange adjustable arms lined across wide storage aisles.

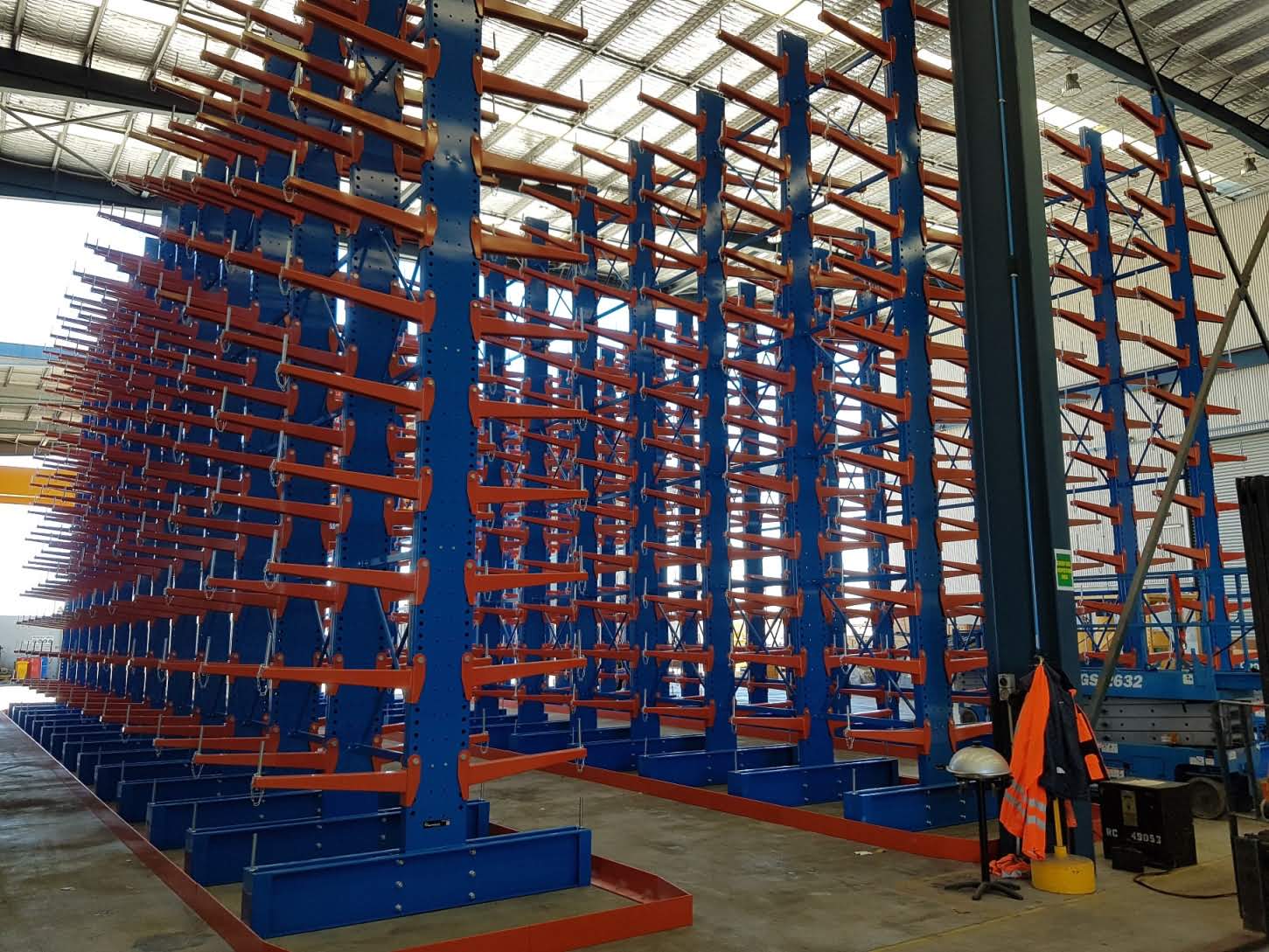

  • Backsafe cantilever racking system fully installed in an oil and gas warehouse, featuring multiple rows of blue columns with heavy-duty orange arms for long-item storage.
