- Model Number: 18300027CNR
- Product Name: STURGO® Spring-Base Mesh Trolley

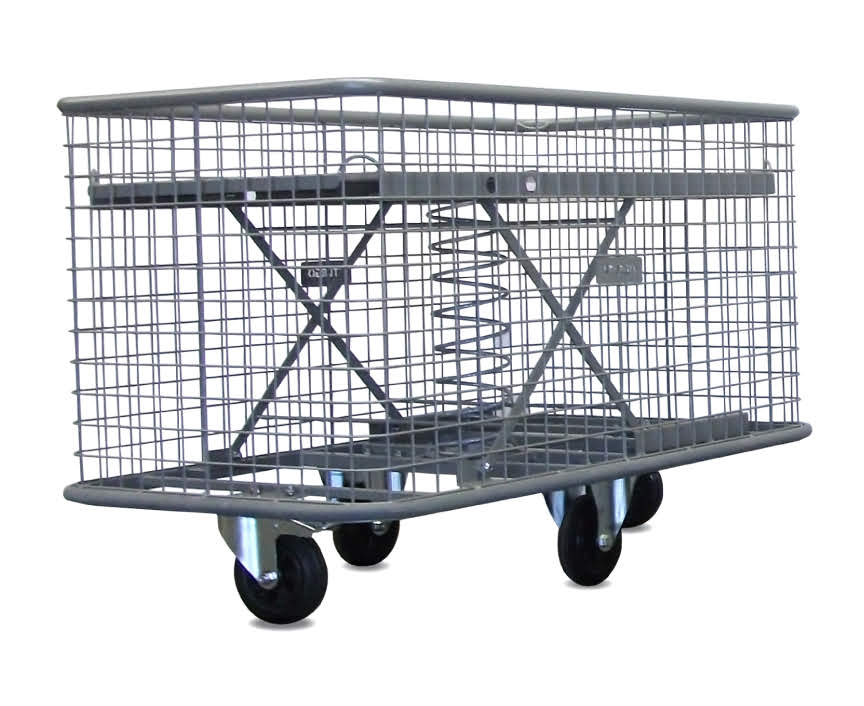

Providing great ventilation, visibility and ergonomics, the STURGO® range of Spring-Base Mesh Trolleys are designed to reduce back strain (less bending and lifting, less WHS risk). The built-in self-levelling spring compression base adjusts according to the load weight, making it easier to load and unload.
Various sizes and configurations are available to suit most applications and requirements. Commonly known as Wet and Dry Laundry Trolleys or Soiled Linen Trolleys, these trolleys are also excellent for cardboard waste and transporting cartons of food (or any other material).
Features:
- Strong. Durable galvanised construction, with PVC bumper 50mm x 50mm mesh.
- Convenient. Mesh sides and perforated base improve ventilation and visibility.
- Works well with Stack & Nest Containers (medium trolley takes two containers, large trolley takes three containers).
- Push handle available.
Manoeuvrable.

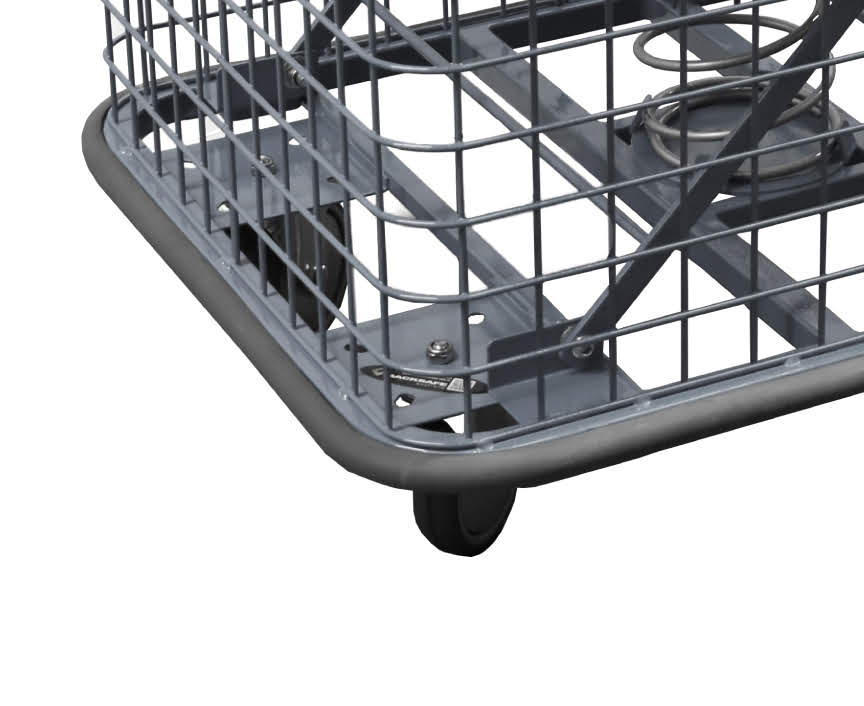

- Small-wheel configuration: corner-mounted wheels with brakes.
- Medium-wheel configuration: jockey mounted, fixed side wheels and swivel braked centre wheels.
- Large-wheel configuration: jockey mounted, fixed side wheels and swivel braked centre wheels.
Easy. The self-levelling spring base reduces back strain. There are two spring configurations available:
- Corner top-mount springs for lighter loads (vinyl spring covers included for user safety).
- Centre under-mount coil spring for heavier loads.

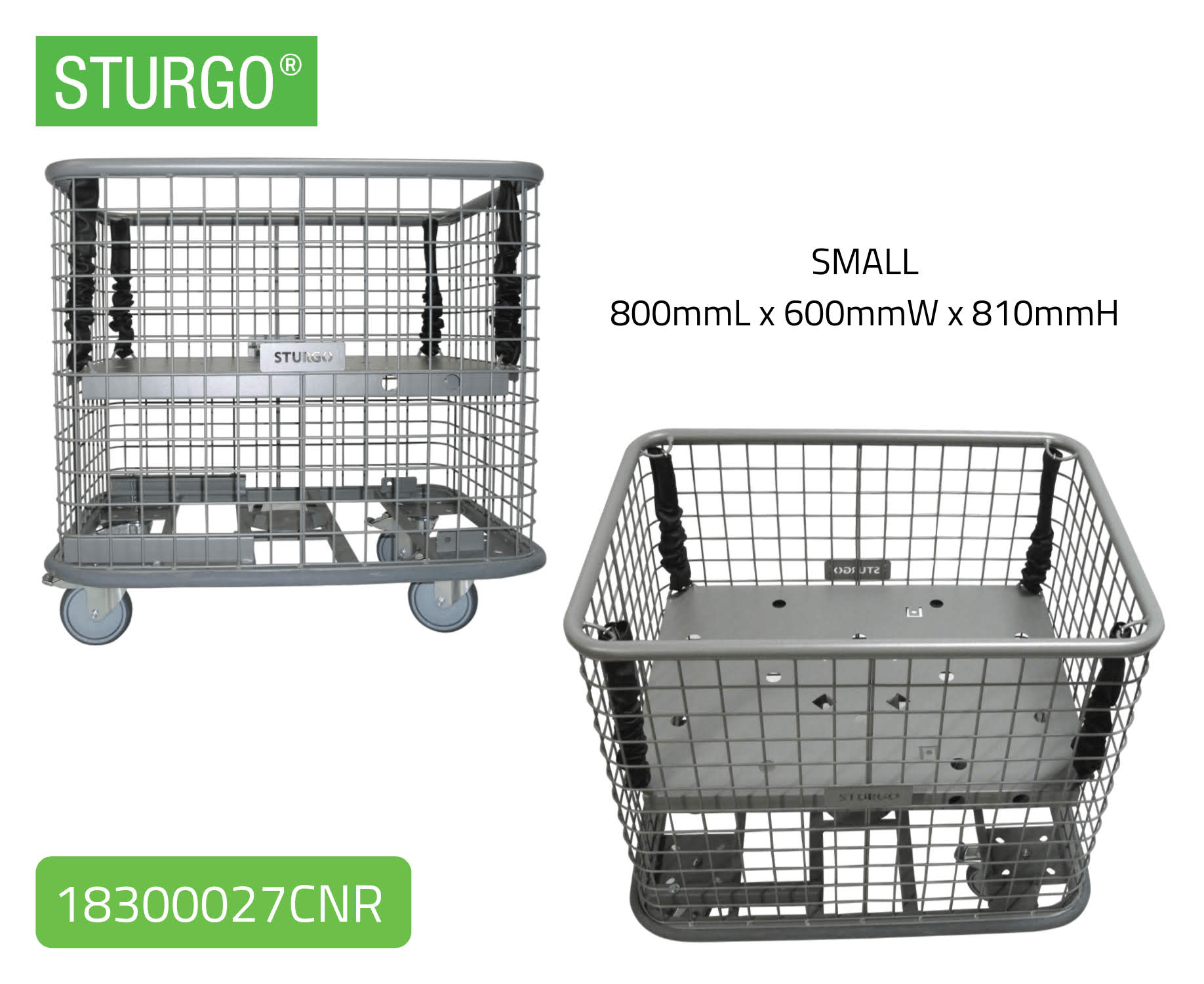

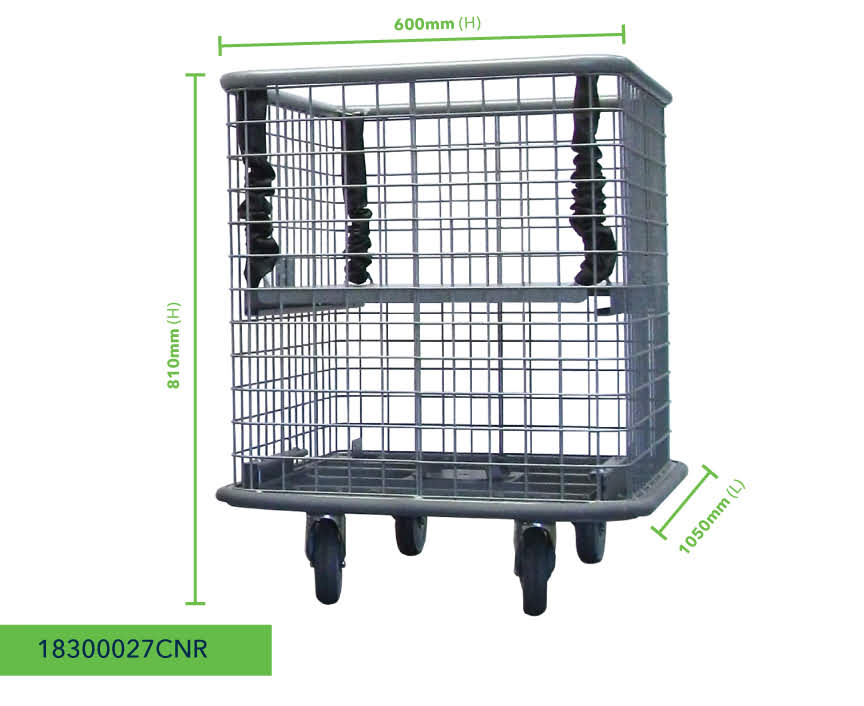

SPECIFICATION: Model 18300027CNR - Small, Corner Springs

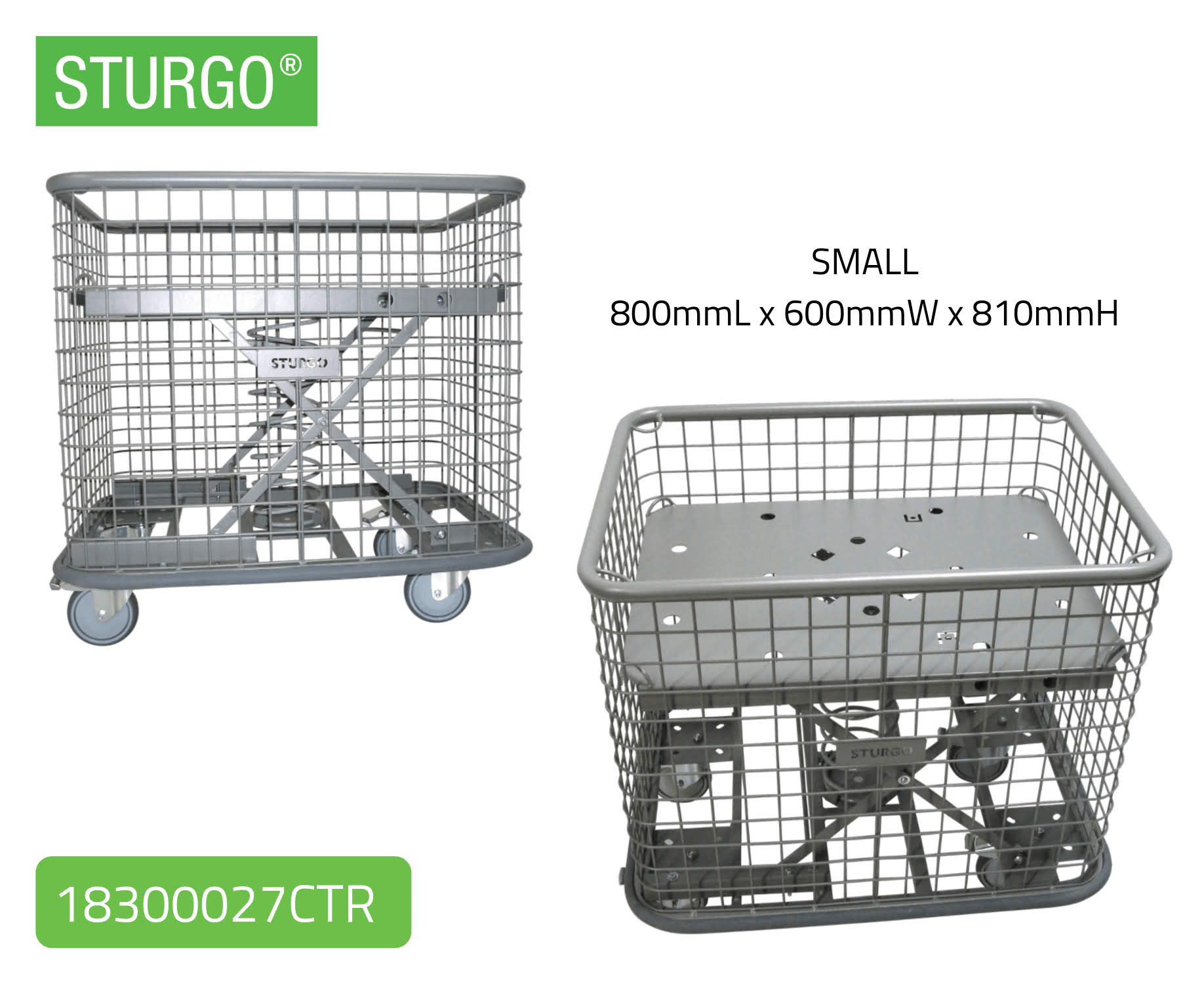

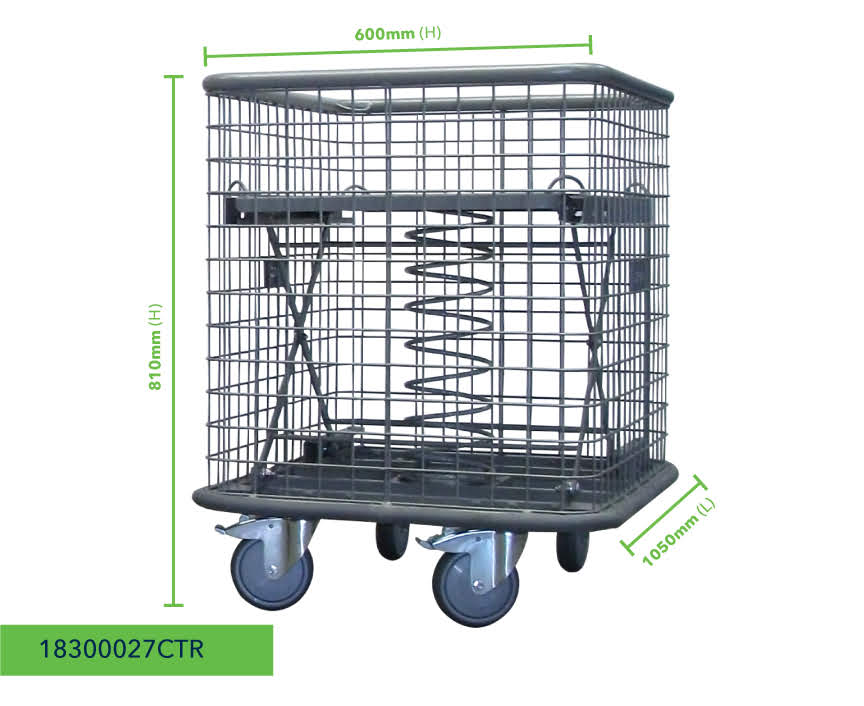

Model 18300027CTR - Small, Centre Spring
Dimensions: 800L x 600W x 810H (mm)
Load Capacity (corner springs): 60kg
Load Capacity (centre spring): 100kg
Wheel Diameter: 125mm (corner mount)
Unit Weight: 35kg

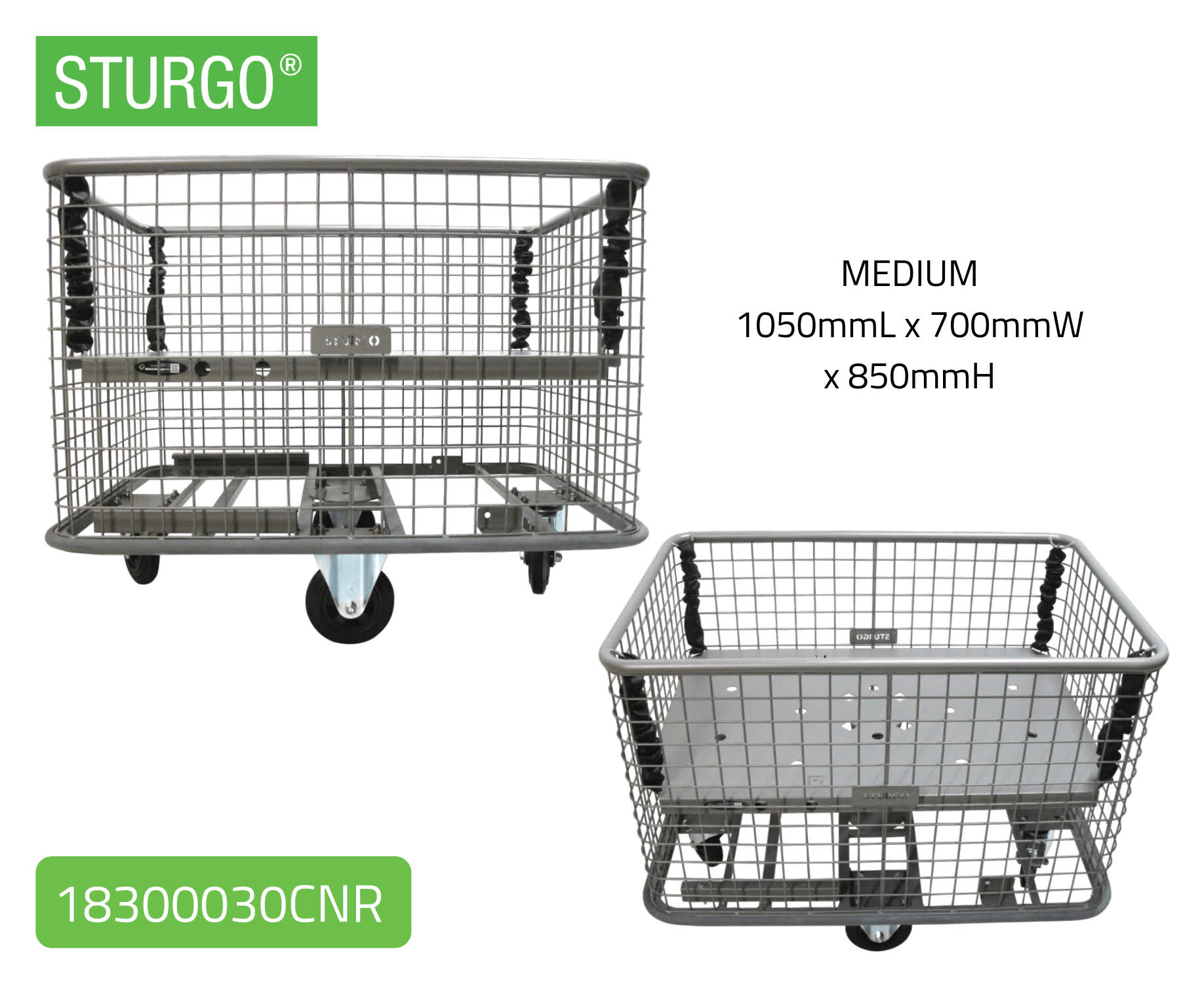

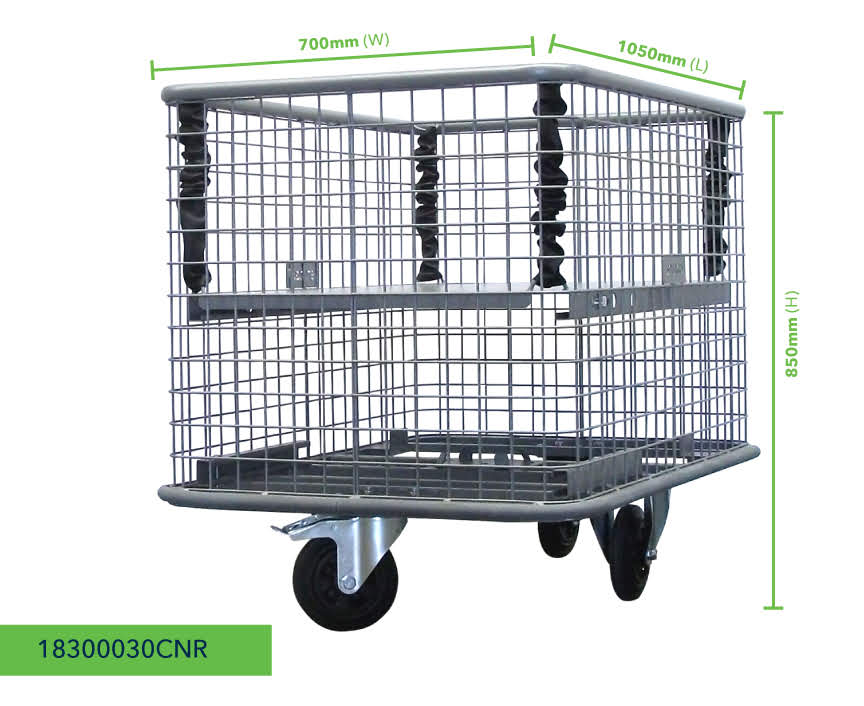

Model 18300030CNR - Medium, Corner Springs

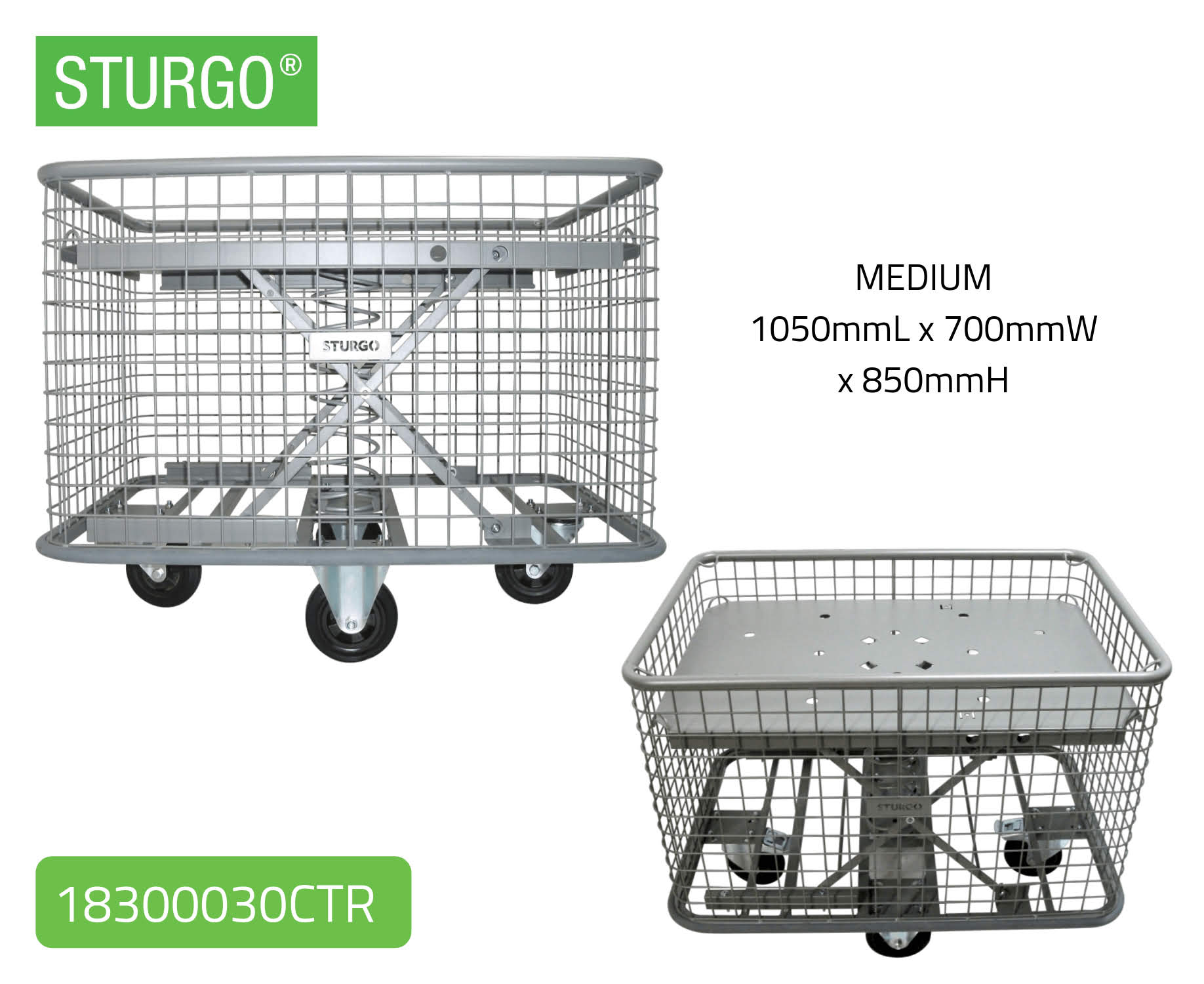

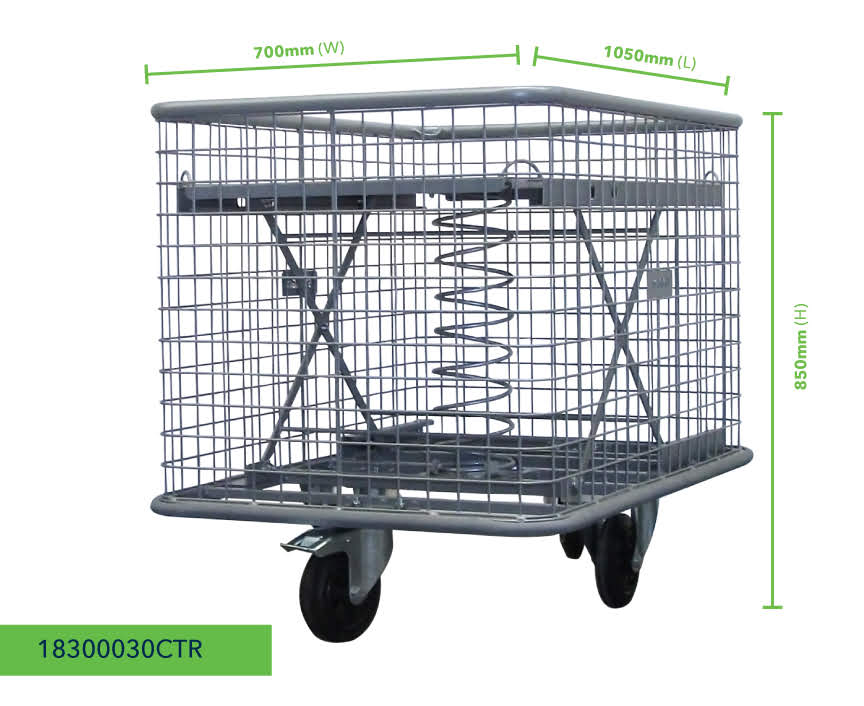

Model 18300030CTR - Medium, Centre Spring
Dimensions: 1050L x 700W x 850H (mm)
Load Capacity (corner springs): 60kg
Load Capacity (centre spring): 100kg
Wheel Diameter: 160mm (jockey mount)
Unit Weight: 48kg

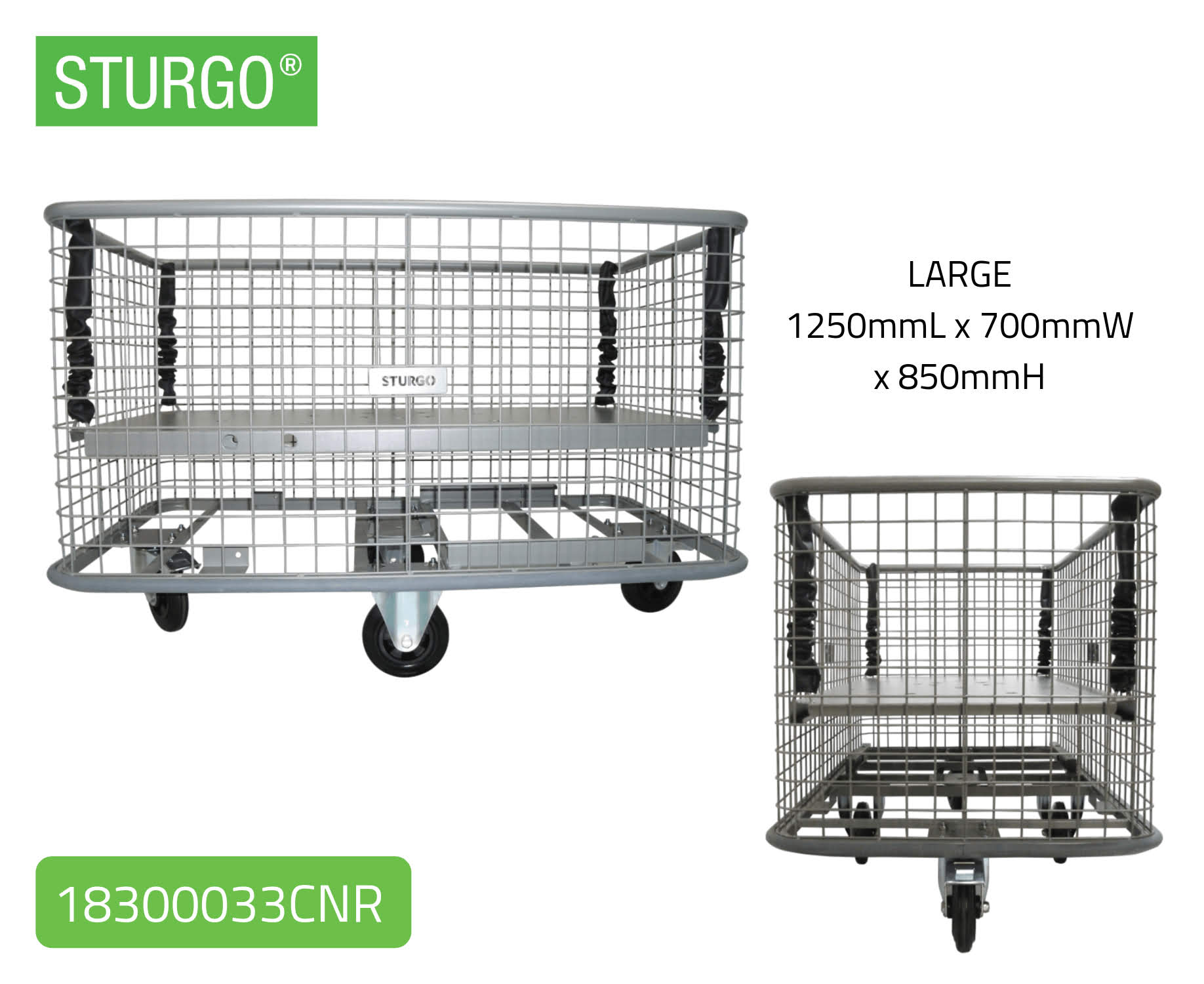

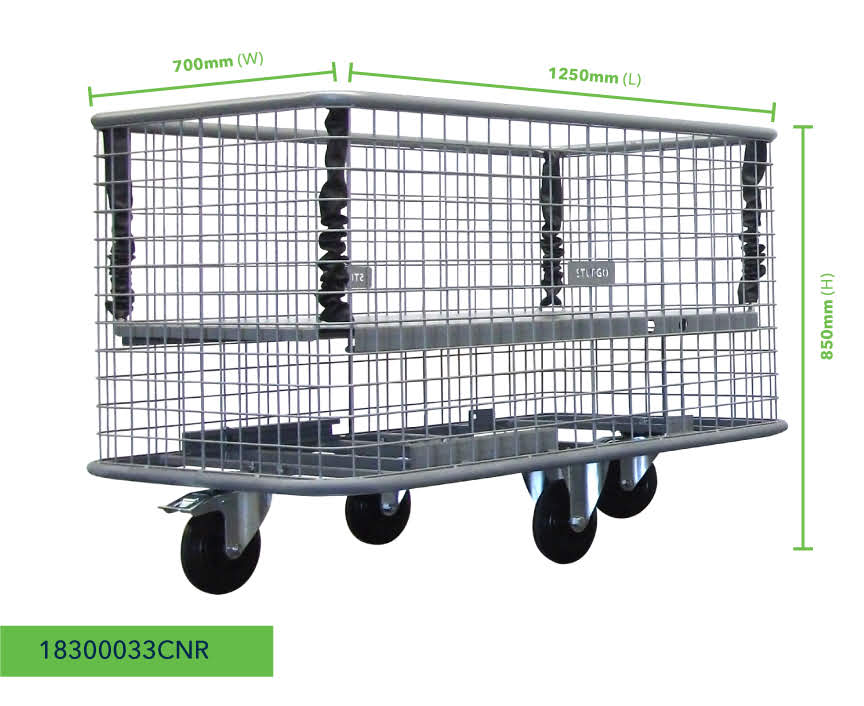

Model 18300033CNR - Large,Corner Springs

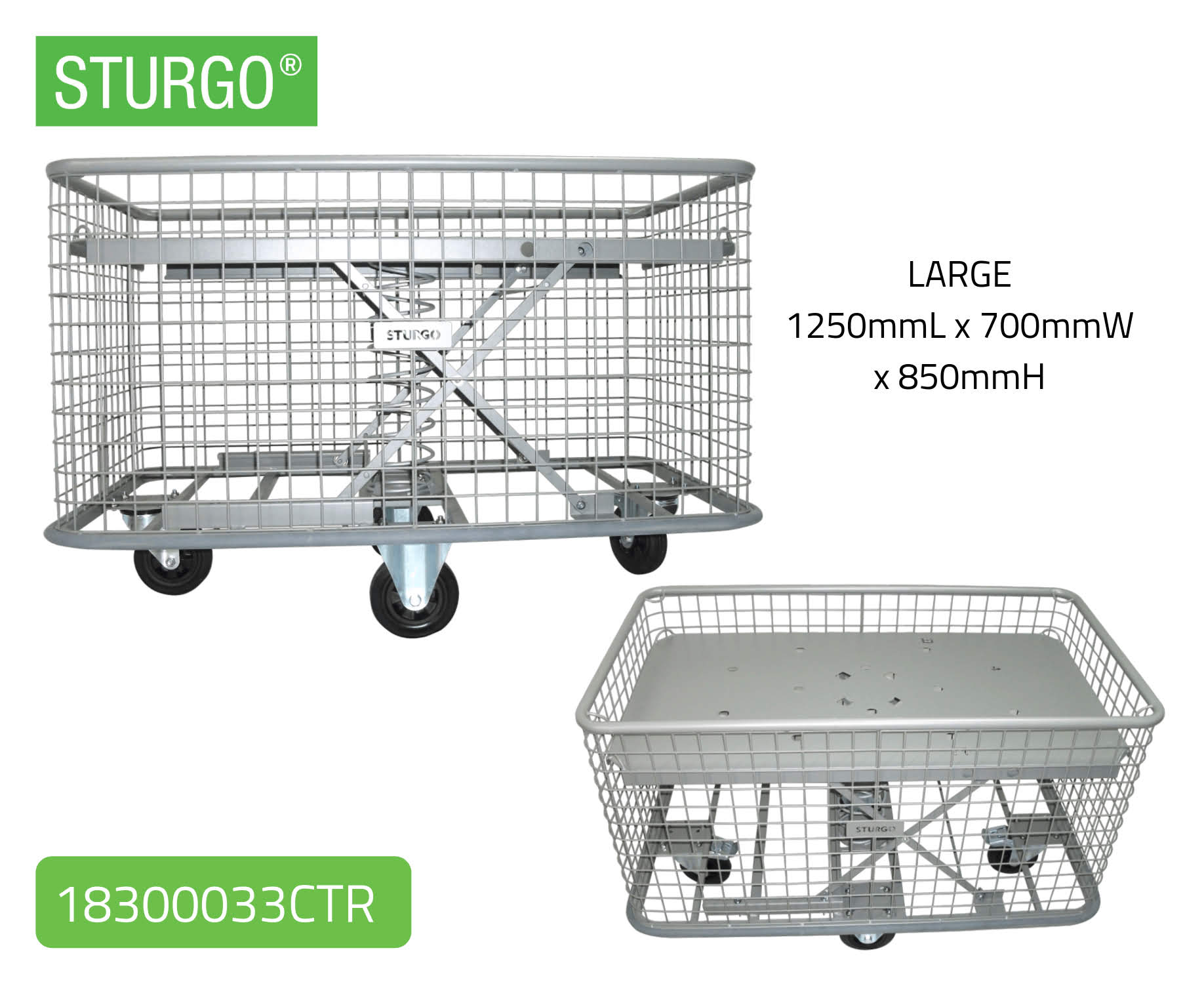

Model 18300033CTR - Large, Centre Spring
Dimensions: 1250L x 700W x 850H (mm)
Load Capacity (corner springs): 60kg Load Capacity (centre spring): 100kg
Wheel Diameter: 160mm (jockey mount)
Unit Weight: 53kg
