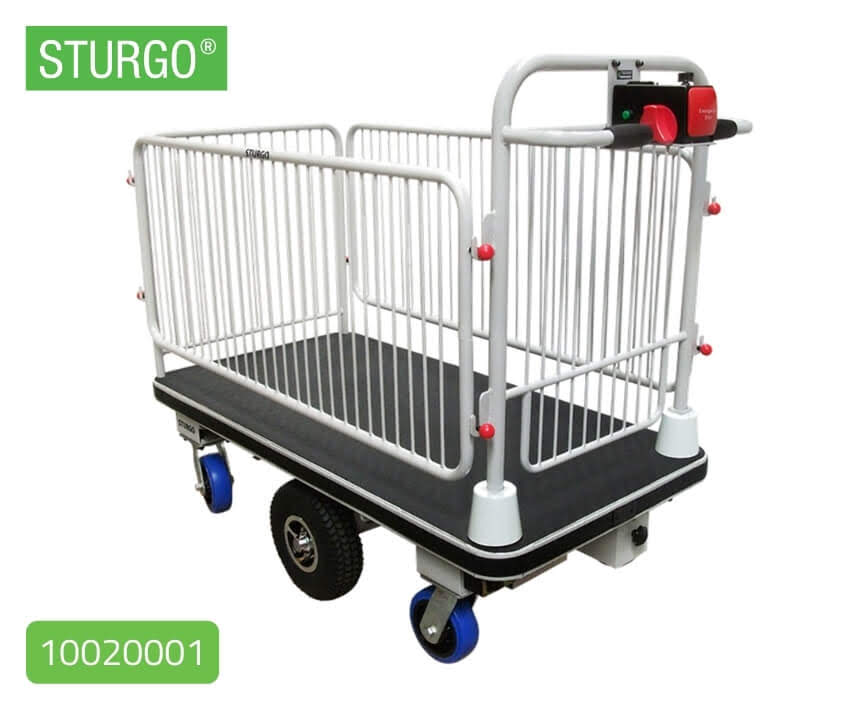

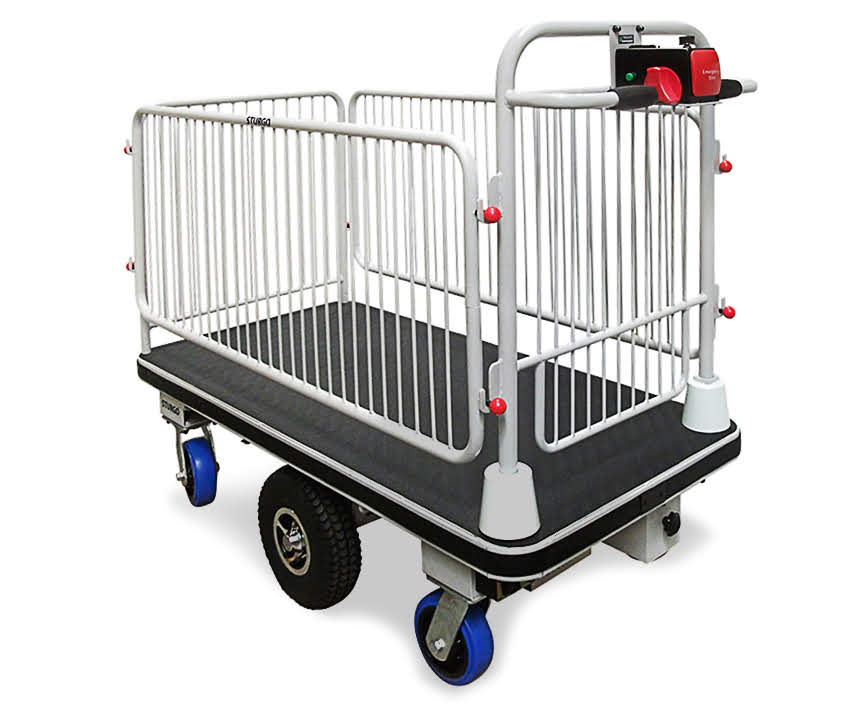

STURGO® Electric Platform Trolley with Centre Drive

  • Overview

    • Model Number: 10020001
    • Product Name: STURGO® Electric Platform Trolley with Centre Drive
    The STURGO® Electric Platform Trolley requires minimal user effort to move heavy loads, and is easy to use and maintain and service. With a simple powered user control system, non-slip platform and removable cage sides, it improves efficiency and productivity for remote facility management teams and equipment handling and warehouse needs.

    Features:

    • Powered by a rechargeable battery centre-drive system

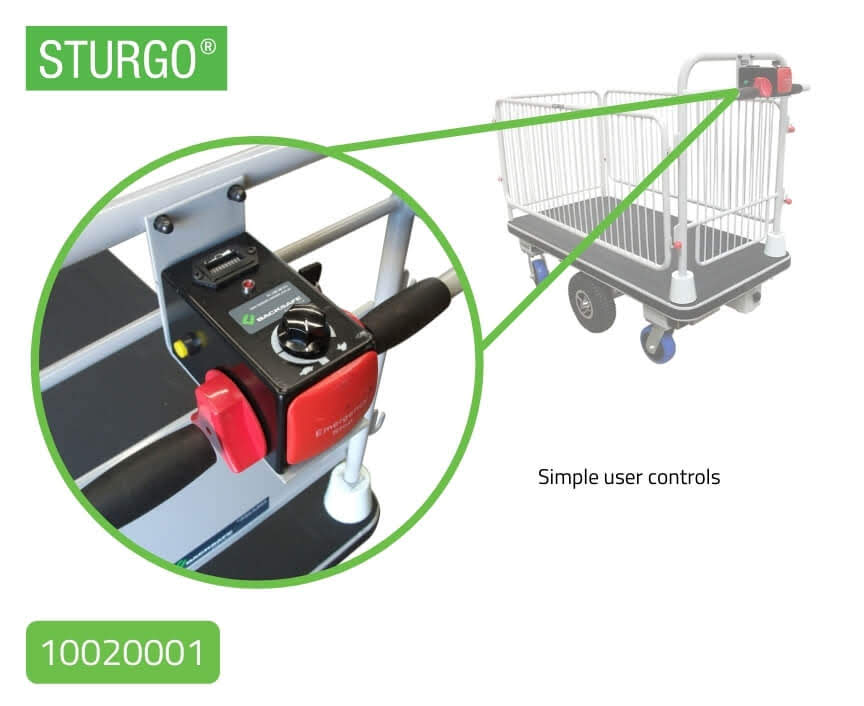

    • Simple operating controls for easy handling

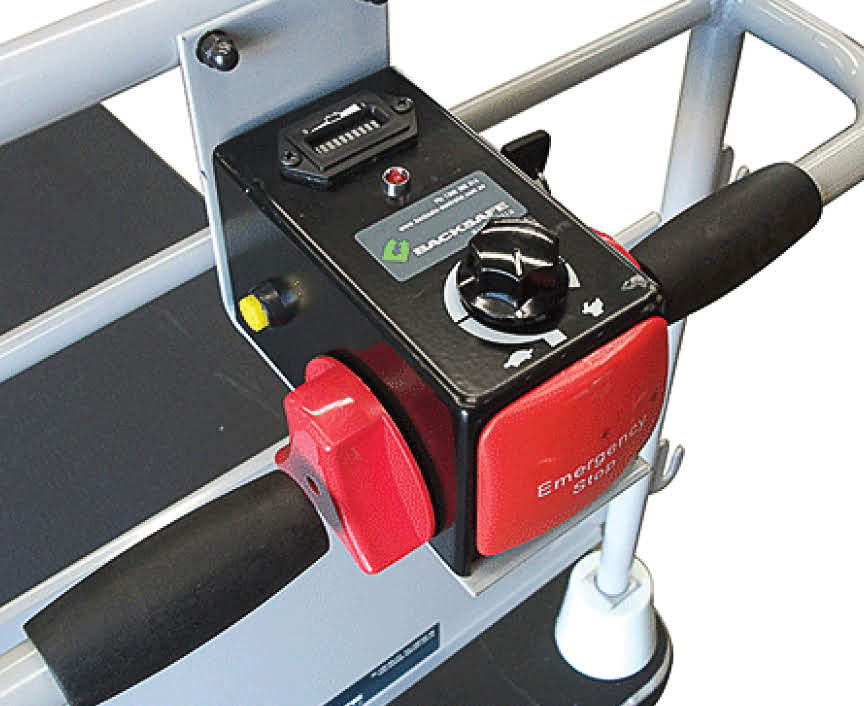

    • System features: variable speed control, dual braking system, key operated start function, emergency stop button, reversing audio alarm, LED battery guage display
    • Six wheel configuration allows for easy trolley manoeuvring

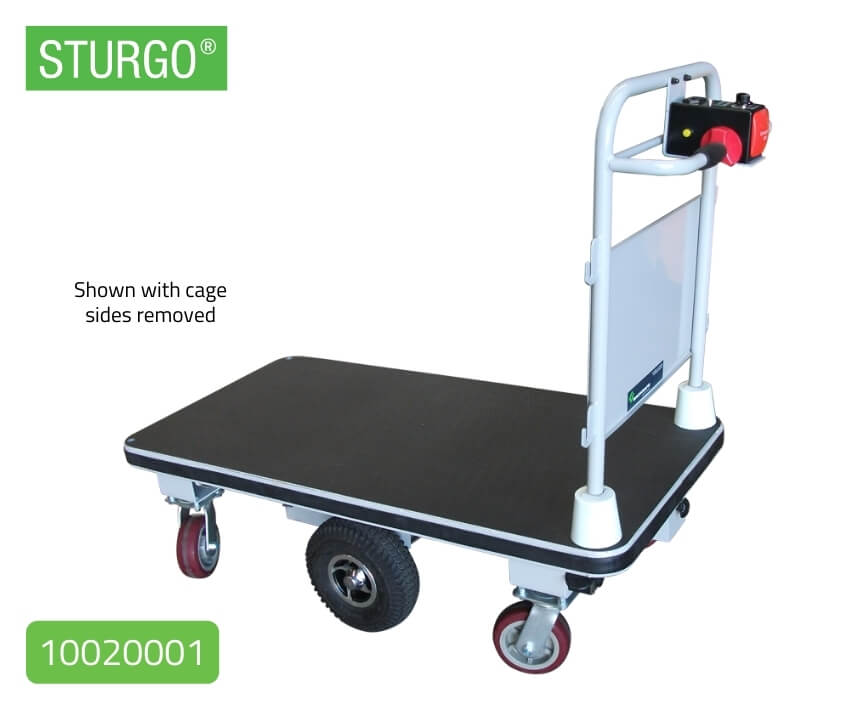

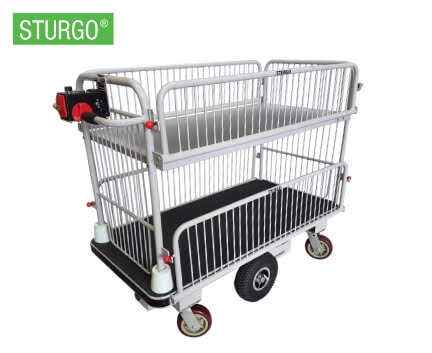

    • Cage sides keep contents secure and are removable for easy loading and unloading

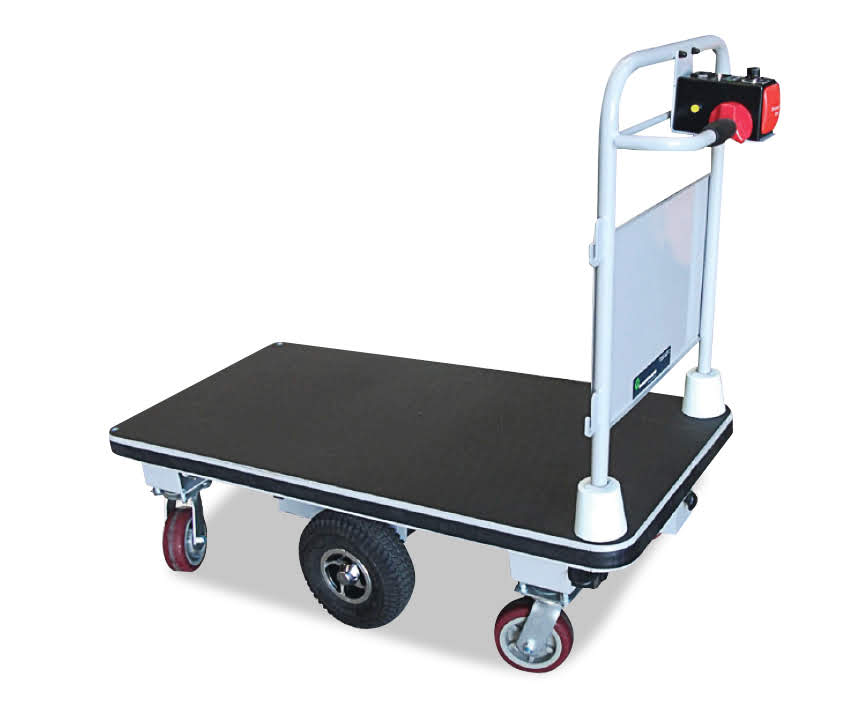

    • Anti-slip platform

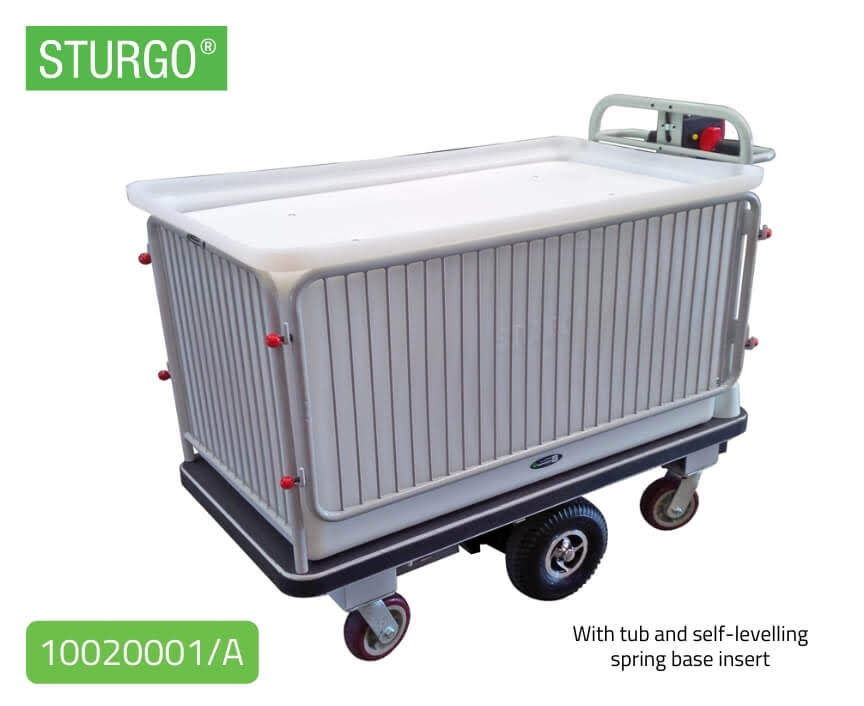

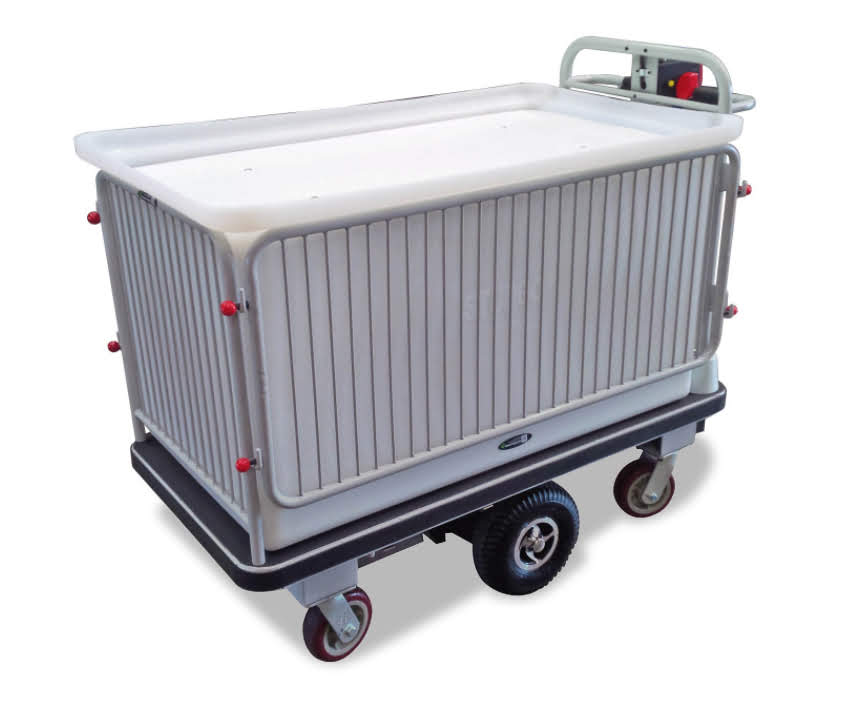

    • Optional plastic tub insert provides a suitable solution for transport of laundry, linen or food items
    • Optional self-levelling spring base can be fitted in plastic tub to prevent the need to bend and lift over the edge of the trolley

  • Specification

    ModelDescriptionOverall Dimensions (mm)Load Capacity (kg)Unit Weight (kg)
    10020001Electric Platform Trolley1370mmL x 620mmW x 1080mmH500120
    10020001AElectric Platform Trolley with Tub & Spring Base140


    Model 10020001

    • Platform Dimensions: 1280mmL x 620mmW
    • Platform Height (from floor to top of platform): 325mm
    • Handle Height (from floor): 990mm

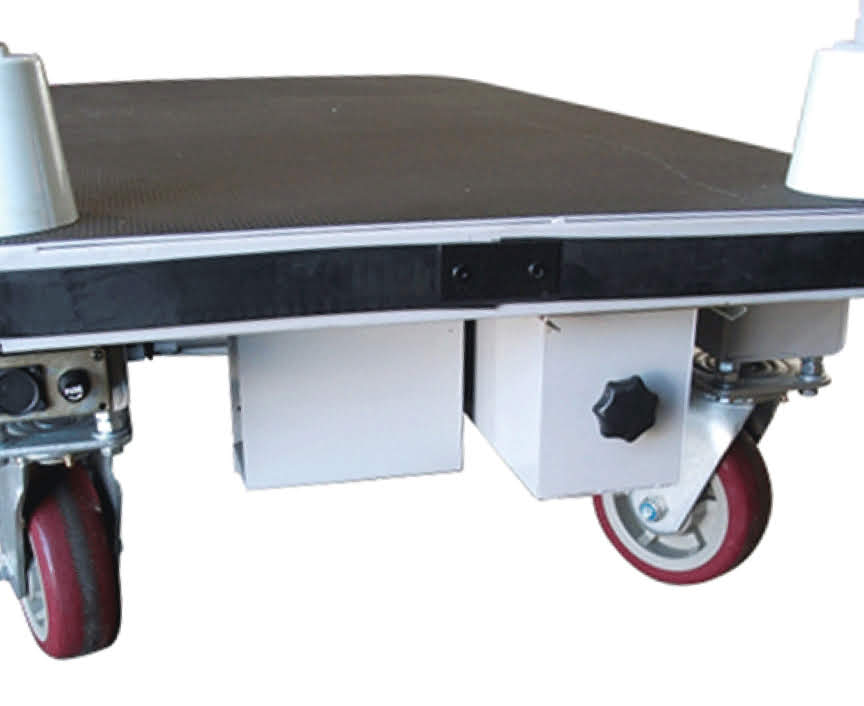

    • Battery Box Clearance (from floor): 75mm
    • Moving Speed: 5 - 8km per hour
    • Turning Radius: 1280mm
    • Maximum Climbing Capability: 12°
    • Load Capacity: 500kg
    • Unit Weight: 140kg
    • Motor: 24V/400W
    • Battery: 12V/33AH x 2
    • Charge Time: 8-10hrs
    • Continuous Work Time: 6hrs
    • Curtis Controller 70A
    • Charger: 24V


    Model 10020001A with Tub & Spring Base

    • Platform Dimensions: 1280mmL x 620mmW
    • Platform Height (from floor to top of platform): 325mm
    • Handle Height (from floor): 990mm
    • Battery Box Clearance (from floor): 75mm
    • Moving Speed: 5 - 8km per hour
    • Turning Radius: 1280mm
    • Maximum Climbing Capability: 12°
    • Load Capacity: 500kg
    • Unit Weight: 140kg
    • Motor: 24V/400W
    • Battery: 12V/33AH x 2
    • Charge Time: 8-10hrs
    • Continuous Work Time: 6hrs
    • Curtis Controller 70A
    • Charger: 24V
