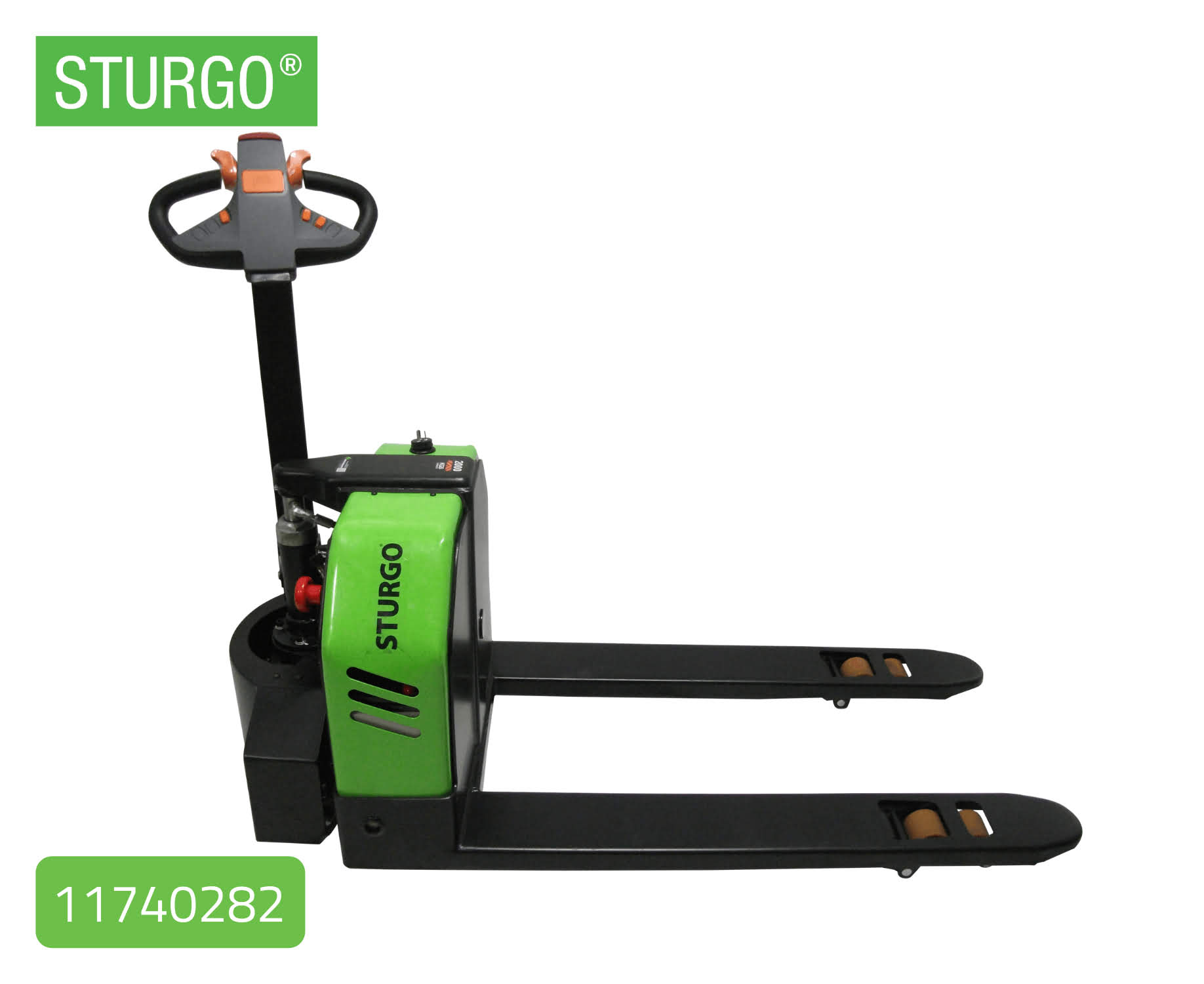

STURGO® Compact Electric Pallet Jack 2T

  • Overview

    • Model Number: 11740282
    • Product Name: STURGO® Compact Electric Pallet Jack 2T
    • Starting from: $6,441.60

    Features:

    • Load Capacity: 2000kg
    • Battery: 2 x 12V/80Ah
    • Compact body for easy storage
    • No unnecessary 'gimmicks'
    • Stylish semi-enclosed design
    • Powerful performance
    • Tough long-lasting engineering
    • Solid body frame
    • Ergonomically designed handle
    • Long-life battery
    • No hassle maintenance
    • Affordable price and excellent investment
    Note: This model has replaced 11740139 STURGO® Compact Electric Pallet Jack 1.8T (EPT20-18EA)
  • Specification

    Technical Specifications

    General
    Model11740282
    Capacity2000kg
    Load Centre600mm
    Lifting TypeElectric
    Operating TypeWalkie

    Wheels
    MaterialPU
    Wheel Base1230mm
    Quantity (driving/balance/bearing)1/2/4
    Bearing WheelØ80x70 mm
    Driving WheelØ210x75 mm
    Balance WheelØ75x46 mm

    Dimensions

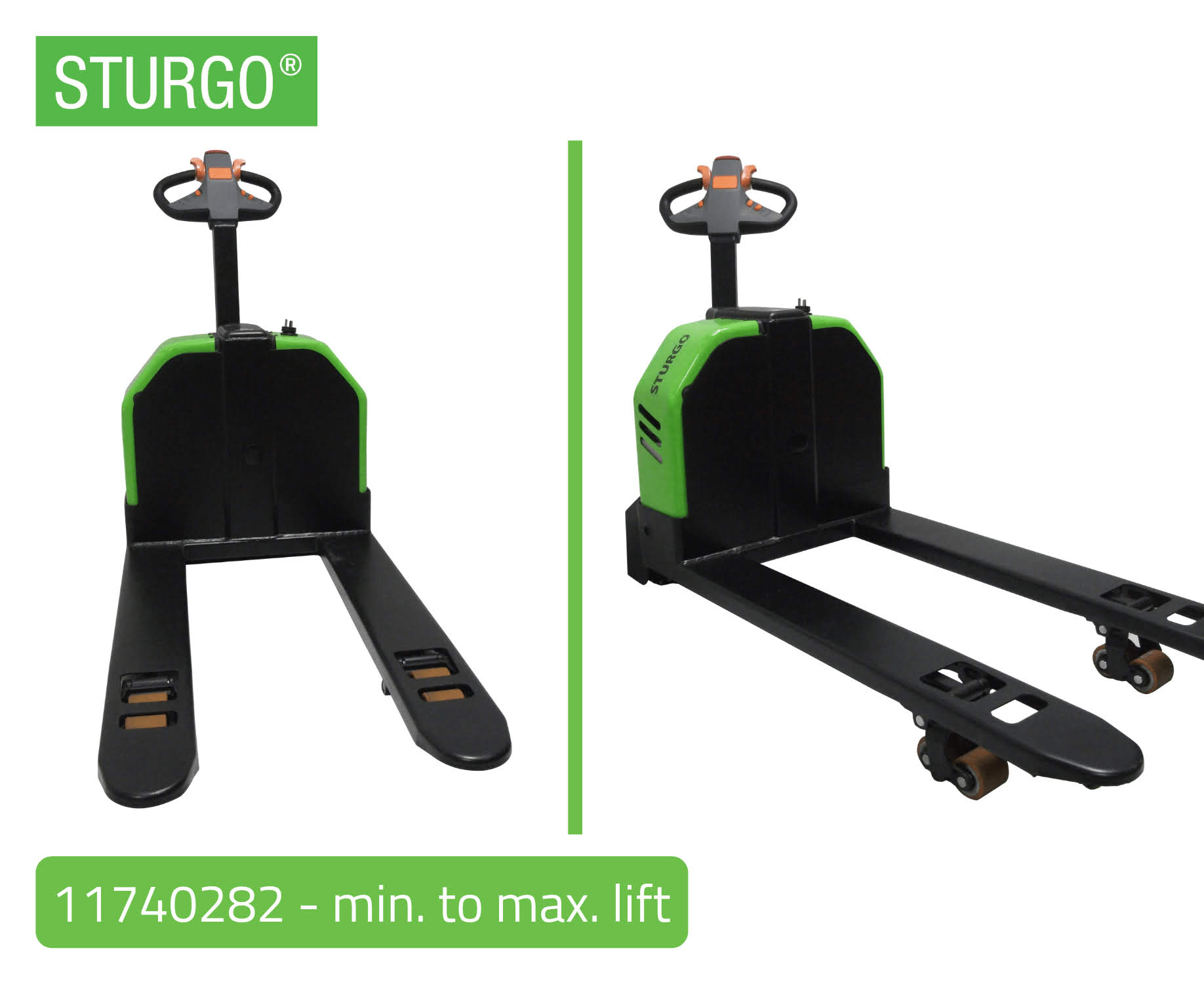

    Min. Fork Height85mm
    Max. Fork Height200mm
    Overall Fork Width685mm
    In-between Fork Width365mm
    Fork Dimensions (length/width/depth)1150/160/50 mm
    Overall Dimensions (length/width/height)1650/685/1205 mm
    Min. Turning Radius1385mm

    Performance
    Travel Speed (laden/unladen)4/5 km/h
    Lifting Speed (laden/unladen)25/30 mm/s
    Lowering Speed (laden/unladen)30/20 mm/s
    Fast/Slow Adjustment FunctionYes
    Gradeability≤4%

    Electrical
    Drive ModeDC
    Drive Motor24V 0.75Kw
    Lift Motor24V 0.8Kw
    Battery Capacity2 x 12/80 V/Ah
    Charger24V 12A

    Weight
    Battery Weight24kg
    Net Weight230kg
