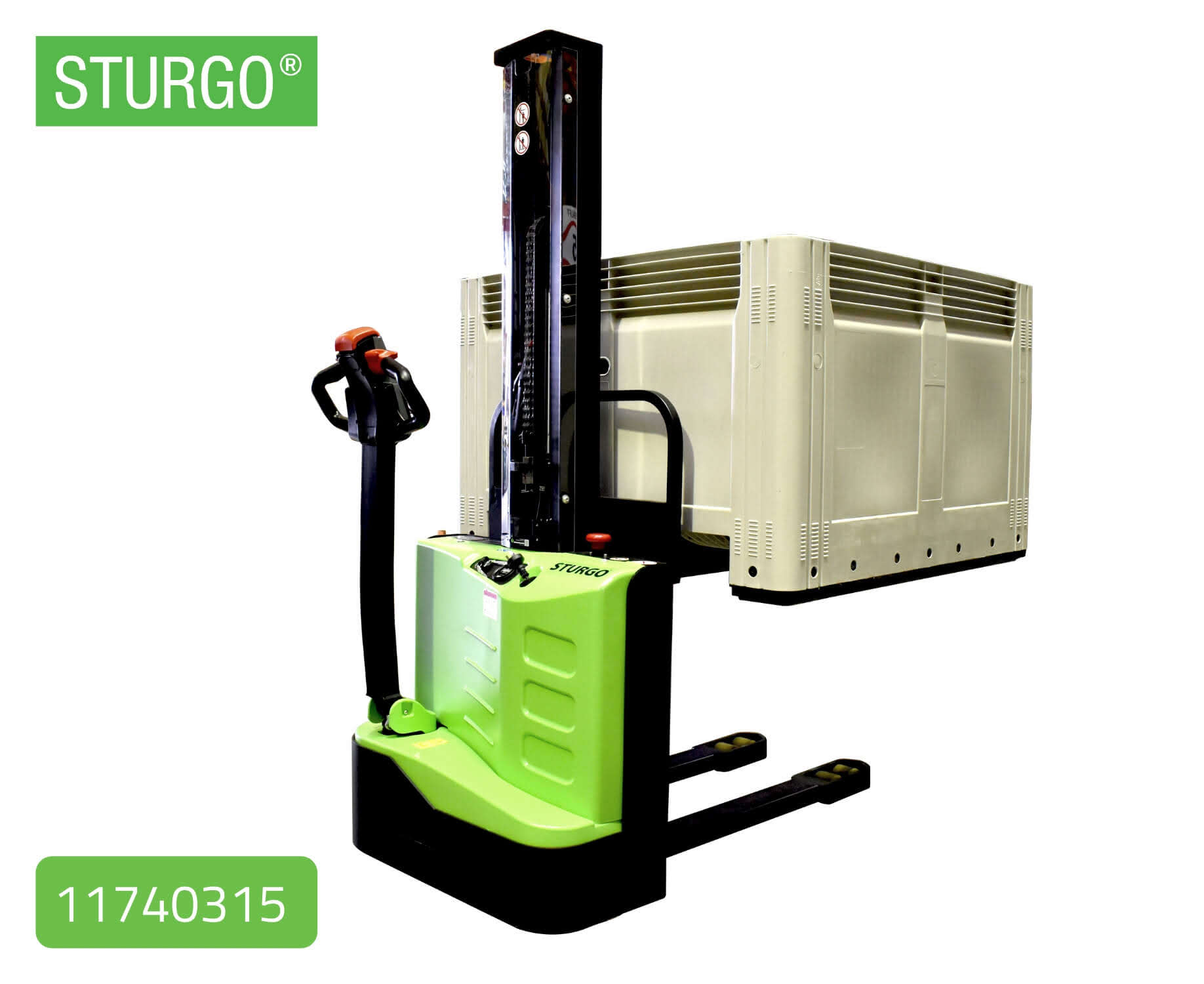

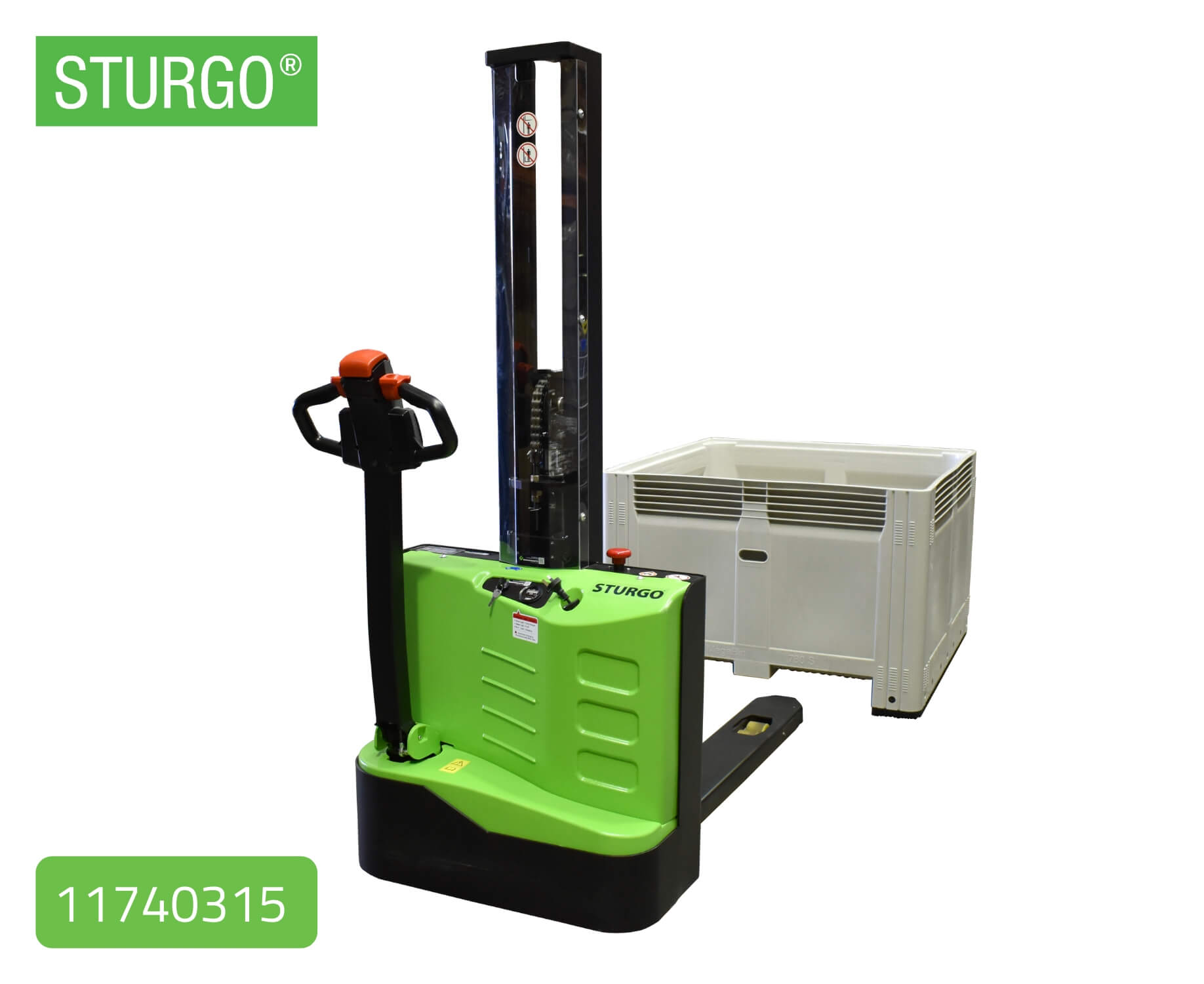

STURGO® Compact Electric Non-Straddle Stacker

  • Overview

    • Model Number: 11740315
    • Product Name: STURGO® Compact Electric Non-Straddle Stacker
    Please select Quantity
    Interested in increasing efficiency and reducing handling risks in your workplace? The STURGO® Compact Electric Non-Straddle Stacker can do just that, and with its versatile non-straddle chassis, it can handle abnormal sized items with fork pockets, as well as pallets.

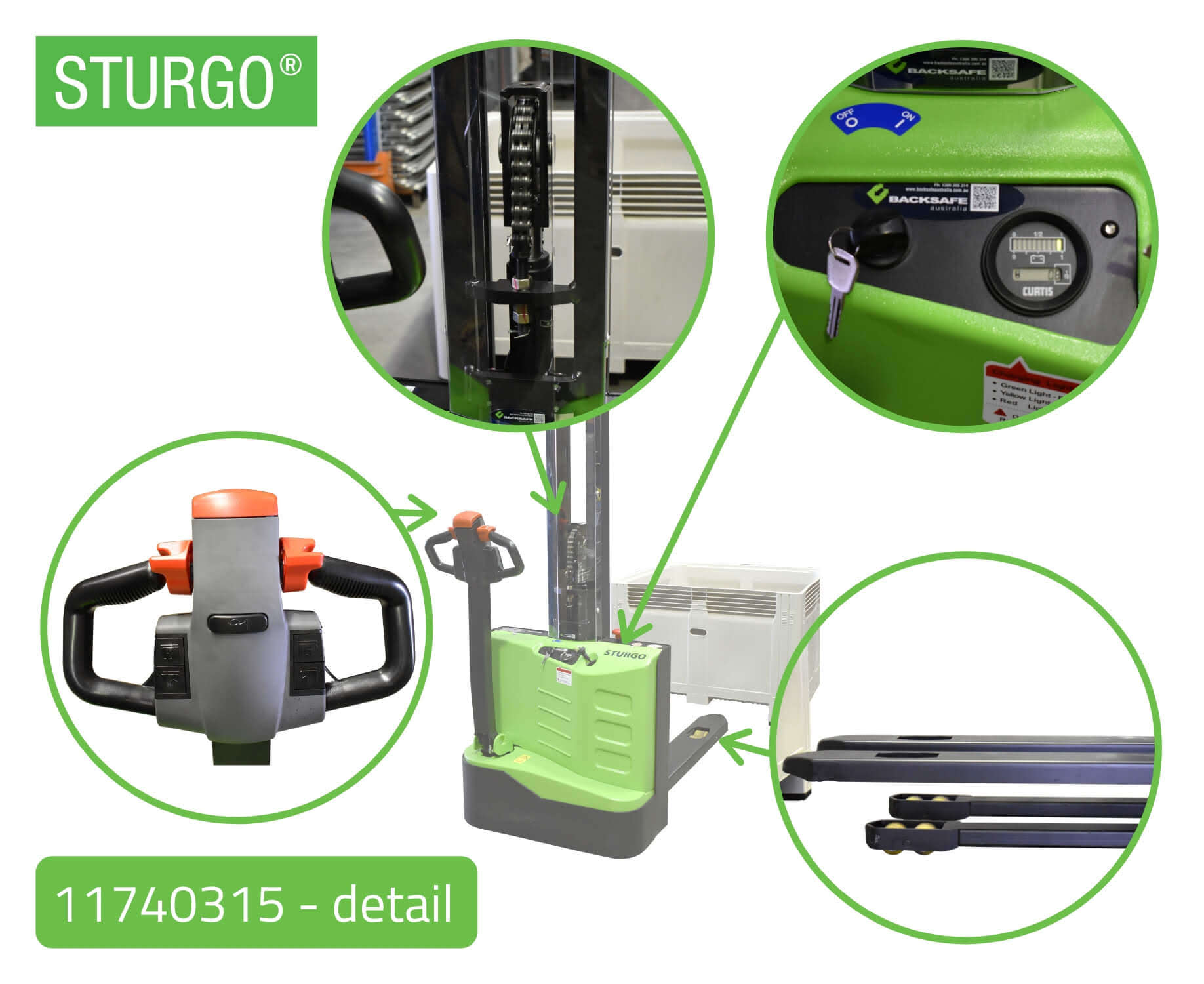

    Features:

    • Highly specialised drive and hydraulics
    • Non-straddle chassis allows lifting of abnormal sized items with fork pockets, as well as pallets
    • Safety hydraulic feature prevents mast free-fall in case of hydraulic failure
    • Emergency stop button
    • Multi-lifting limited switch ensures travel safety
    • Low speed mode automatic activation
    • Anti-roll braking device
    • Ergonomic handle with long arm
    • Side-positioned user control ensures excellent visibility
    • On-board battery charger
    • Electric drive / electric lift
    • Capacity 1200kg
    • Check out the demo video below ⬇
  • Specification

    Technical Specifications

    General
    Model11740315 / ES-12-12MM
    Capacity1200 kg
    Load Centre600 mm
    Lifting TypeElectric
    Operating TypePedestrian

    Wheels
    MaterialPU
    Wheel Base1126 mm
    Quantity (driving/castor/bearing)1/1/4
    Driving WheelØ210 x 70 mm
    Castor WheelØ130 x 55 mm
    Bearing WheelØ80 x 60 mm

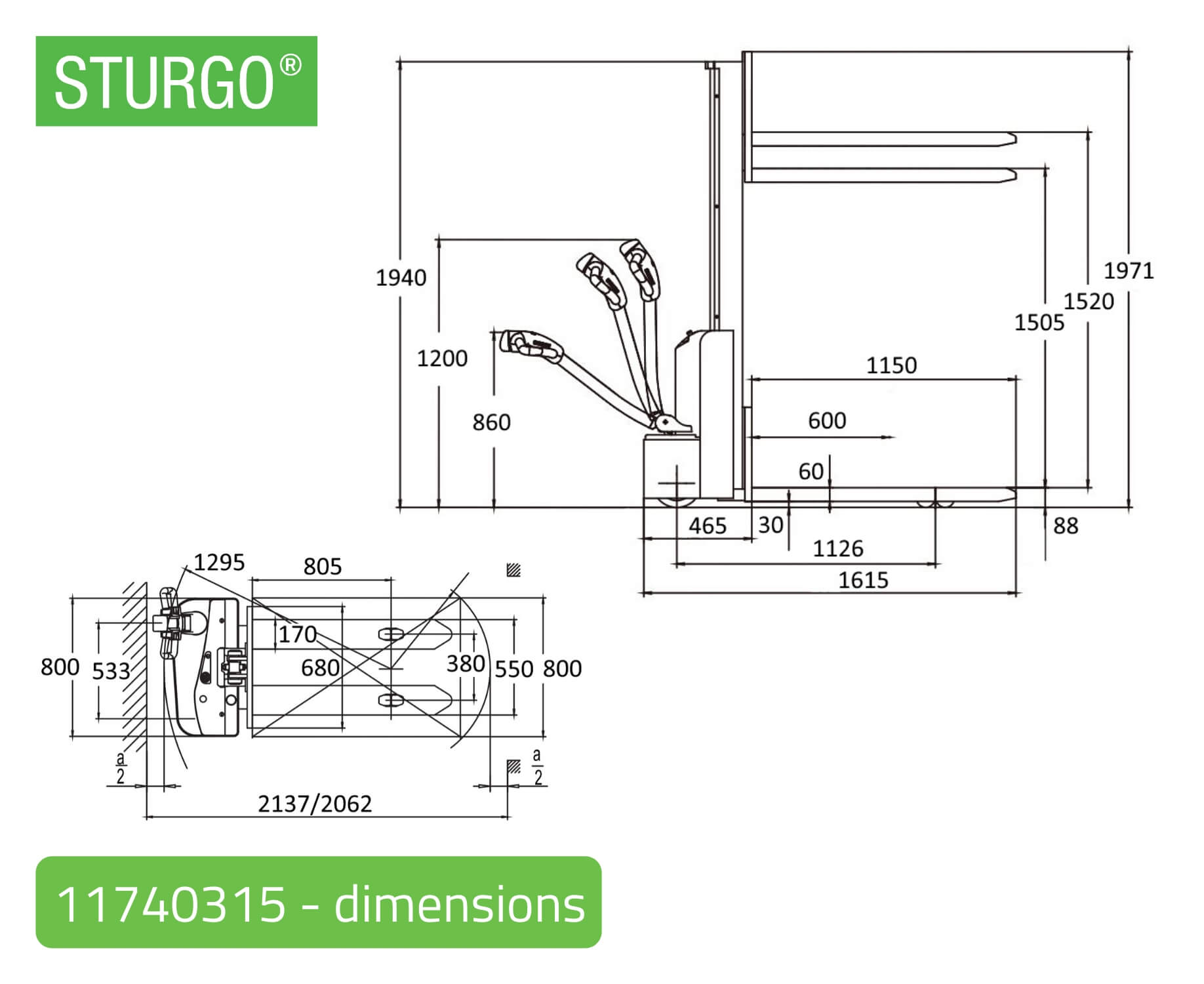

    Dimensions
    Min. Fork Height88 mm
    Max. Fork Height1520 mm
    Overall Fork Width550 mm
    In-between Fork Width210 mm
    Fork Dimensions (length/width/depth)1150 / 170 / 60 mm
    Overall Dimensions (length/width/height)1615 / 800 / 1940 mm
    Min. Turning Radius1295 mm

    Performance
    Travel Speed (laden/unladen)4 / 4.5 km/h
    Lifting Speed (laden/unladen)120 / 220 mm/s
    Lowering Speed (laden/unladen)120 / 110 mm/s
    Max. gradeability (laden/unladen)3 / 10 %

    Electrical
    Drive ModeDC
    Drive Motor24V 0.65Kw
    Lift Motor24V 2.2Kw
    Battery TypeMaintenance-free gel
    Battery Capacity2 x 12V/85Ah

    Weights
    Battery Weight2 x 25 kg
    Net Weight (includes battery)462 kg
