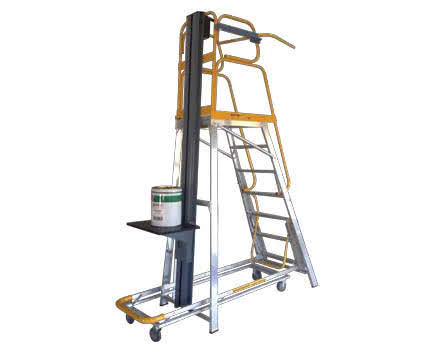

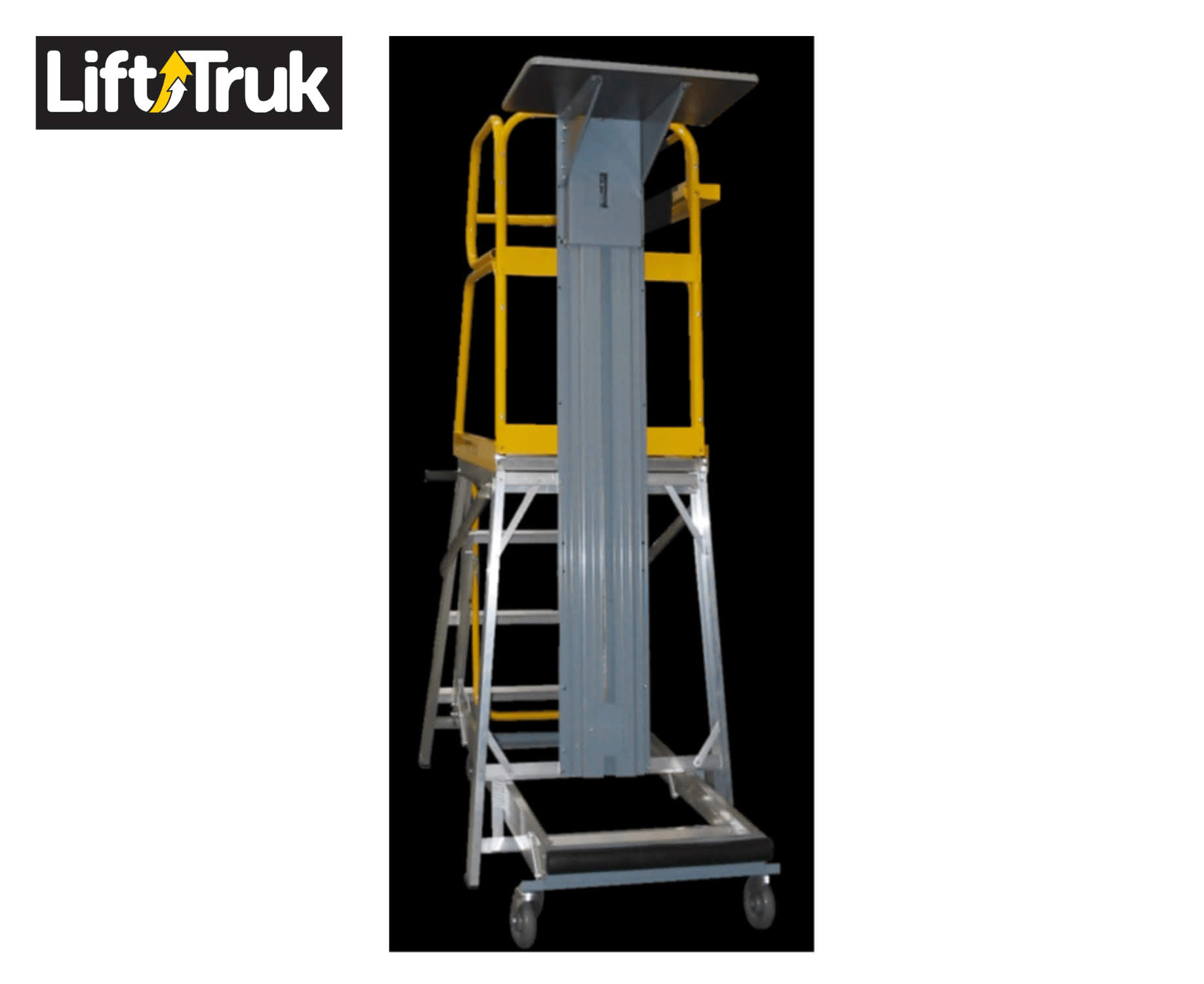

Lift-Truk Platform Ladder

  • Overview

    • Model Number: 11310021
    • Product Name: Lift-Truk Platform Ladder

    *Formerly known as the WinchTruk*

    Features:

    • Eliminates the dangerous practice of carrying items up or down a ladder
    • Enables picking shelf stocking and transporting of loads up to 60 kilograms
    • Improves productivity through more efficient item handling
    • Places the operator at the correct height to inspect the inventory

    With the Lift-Truk, the dangerous practice of carrying large or heavy items up or down a ladder is eliminated. Loads of up to 50 kilograms can easily be handled by use of the automatic load brake lifting table. Lift-Truk is designed and manufactured to meet the requirements of Australian / New Zealand standard AS/NZS1892.1.1996

    Embracing all the safety features of the Lift-Truk together with vertical lifting capability, the Lift-Truk provides a most cost effective answer for the handling of items in low to moderate volumes.  In the picking process, items may be selected, lowered and transported in one seamless action, eliminating the need for separate ladders and trolleys and greatly improving productivity.

    The design of Lift-Truk allows the lift table to be set at any height completely independent of the operator. Lift-Truk is supplied with a flexible Platform Safety Rail System which can be setup to various configurations to provide easy access for stock picking and when fitted with the Auto-Safe Gate the operator is protected from accidently stepping off the front of the platform.

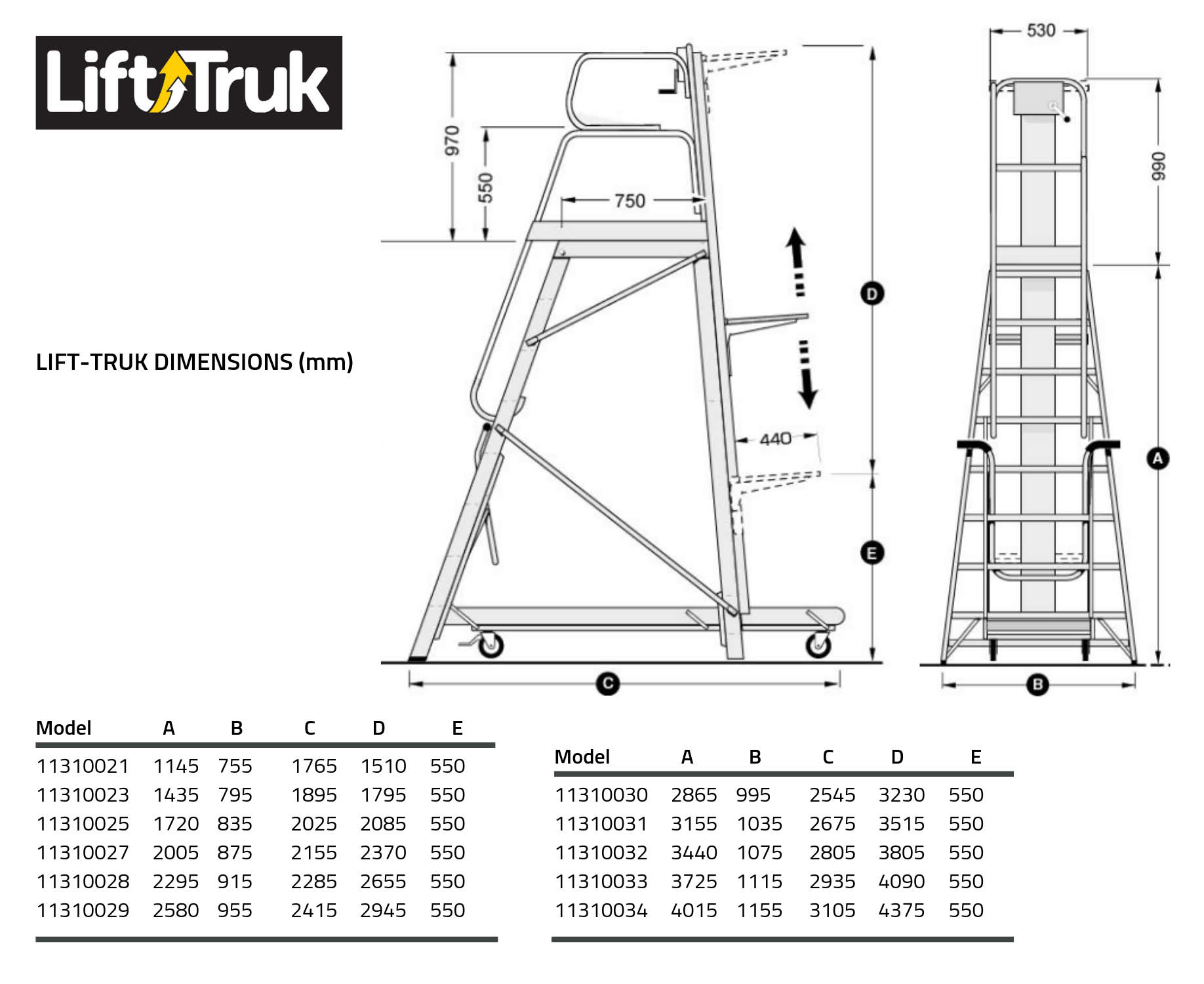

  • Specification

    Model Platform Height Base Width Base Length Platform Width Platform Length
    11310021 1145 755 1885 530 750
    11310023 1435 795 2015 530 750
    11310025 1720 835 2145 530 750
    11310027 2005 875 2155 530 750
    11310028 2295 915 2285 530 750
    11310029 2580 955 2415 530 750
    11310030 2865 995 2665 530 750
    11310031 3155 1035 2795 530 750
    11310032 3440 1075 2925 530 750
    11310033 3725 1115 3055 530 750
    11310034 4015 1155 3225 530 750
  • Documents

Back To Search
Need more information? Contact Us

Choose your quantities below

Code
Description
Qty
  • 11310021
    Lift-Truk Platform Ladder 1145mm
  • 11310023
    Lift-Truk Platform Ladder 1435mm
  • 11310025
    Lift-Truk Platform Ladder 1720mm
  • 11310028
    Lift-Truk Platform Ladder 2295mm
  • 11310030
    Lift-Truk Platform Ladder 2865mm
  • 11310031
    Lift-Truk Platform Ladder 3155mm
  • 11310032
    Lift-Truk Platform Ladder 3440mm
  • 11310033
    Lift-Truk Platform Ladder 3725mm
  • 11310034
    Lift-Truk Platform Ladder 4015mm
