Gas Cylinder Lifter Trolley

  • Overview

    • Model Number: 12720015
    • Product Name: Gas Cylinder Lifter Trolley

    These manual winch lift trolleys are used for a range of lifting, carrying, supporting and positioning of work loads in a variety of environments.
    This range of lift trolleys are also available in battery electric by enquiry only. All models have a load capacity of 150kg.

    Features:

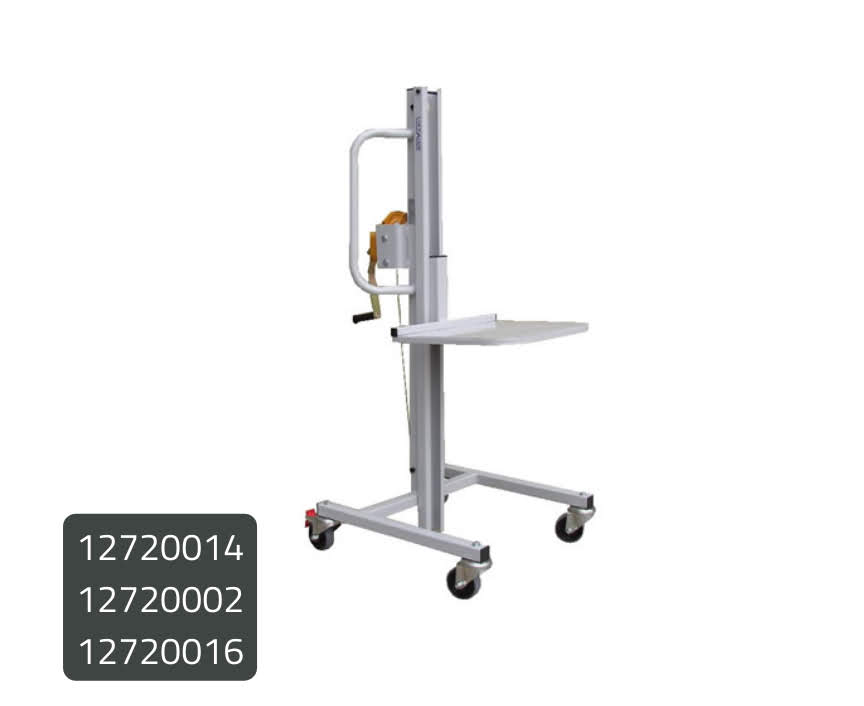

    S-Series (Small Platform)

    • Manual Hand winch controlled lift
    • 3 Lift Heights available - 1200mm, 1800mm or 2000mm (Models: 12720014, 12720002, 12720016)
    • Flat table platform 500mm x 400mm
    • Load Capacity: 150kg
    • 100mm Swivel wheels, with brakes on rear wheels
    • Large, ergonomic steering handles

    S Series (Large Platform)

    • Manual Hand winch controlled lift
    • 3 Lift Heights available - 1200mm, 1800mm or 2000mm (Models: 12720008, 12720009, 12720012)
    • Flat table platform 600mm x 600mm
    • Load Capacity: 150kg
    • 100mm Swivel wheels, with brakes on rear wheels
    • Large, ergonomic steering handles

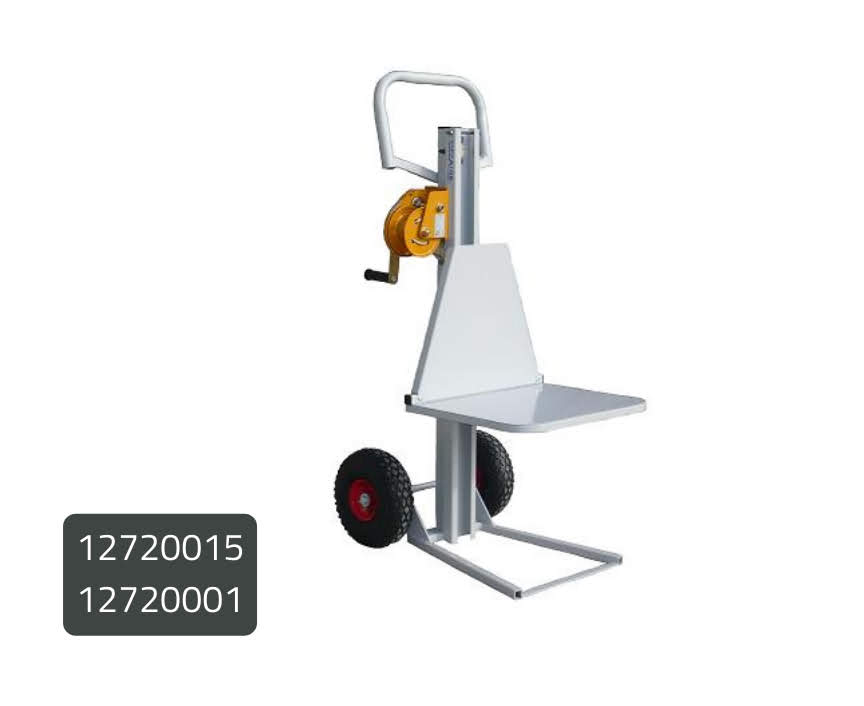

    N Series (Small Platform)

    • Manual winch controlled lift
    • 2 Lift Heights Available - 900mm, 1200mm (Models: 12720015, 12720001)
    • Flat Table platform 500mm x 400mm
    • Load Capacity: 150kg
    • Use indoors and outdoors
    • Wheels: 250mm Pneumatic

    ​N Series (Large Platform)

    • Manual winch controlled lift
    • Lift height 1200mm (Model: 12720019)
    • Flat Table platform 600mm x 600mm
    • Load Capacity: 150kg
    • Use indoors and outdoors
    • Wheels: 250mm Pneumatic

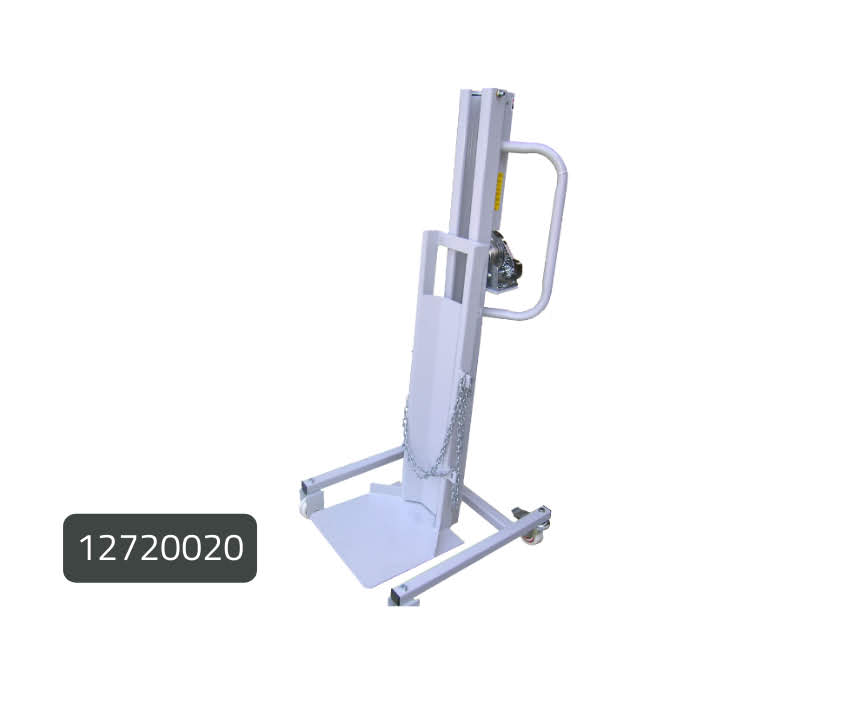

    Gas Cylinder Cradle Trolleys

    • Manual Hand winch controlled lift
    • 2 Lift Heights available - 900mm, 1200mm (Models: 12720003, 12720007, 12720020)
    • Gas Cylinder Cradle (with securing chains)
    • Load Capacity: 150kg
    • 250mm Pneumatic wheels OR 4 X 100mm swivel castors
    • Large, ergonomic steering handles​

    G Series

    • Manual Hand winch controlled lift
    • Lift Height: 1200mm (Model: 12720013)
    • Flat Table platform 500mm x 400mm
    • Load Capacity: 150kg
    • Wheels: 200mm solid rubber (rear), 75mm swivel (front)
    • Large, ergonomic steering handles



    • Specification

      ModelPlatform Size (mm)Lift Height  Min/Max Unit Weight (kg)Wheels (ø)
      12720014500 x 40028mm / 1200mm362 x 100mm Swivel, 2 x 100mm Swivel-brake
      12720002500 x 40028mm / 1800mm382 x 100mm Swivel, 2 x 100mm Swivel-brake
      12720016500 x 40028mm / 2000mm412 x 100mm Swivel, 2 x 100mm Swivel-brake
      12720008600 x 60028mm / 1200mm402 x 100mm Swivel, 2 x 100mm Swivel-brake
      12720009600 x 60028mm / 1800mm442 x 100mm Swivel, 2 x 100mm Swivel-brake
      12720012600 x 60028mm / 2000mm462 x 100mm Swivel, 2 x 100mm Swivel-brake
      12720015500 x 40028mm / 900mm302 x 250mm Pneumatic
      12720001500 x 40028mm / 1200mm322 x 250mm Pneumatic
      12720019600 x 60028mm / 1200mm342 x 250mm Pneumatic
      12720003Universal Gas Cylinder Cradle28mm / 900mmTBA2 x 250mm Pneumatic
      12720007Universal Gas Cylinder Cradle28mm / 1200mmTBA2 x 250mm Pneumatic
      12720020Universal Gas Cylinder Cradle28mm / 1200mmTBA4 x 100mm Swivel
      12720013500 x 40028mm / 1200mm302 x 200mm Solid rubber (rear), 2 x 75mm Swivel (front)
