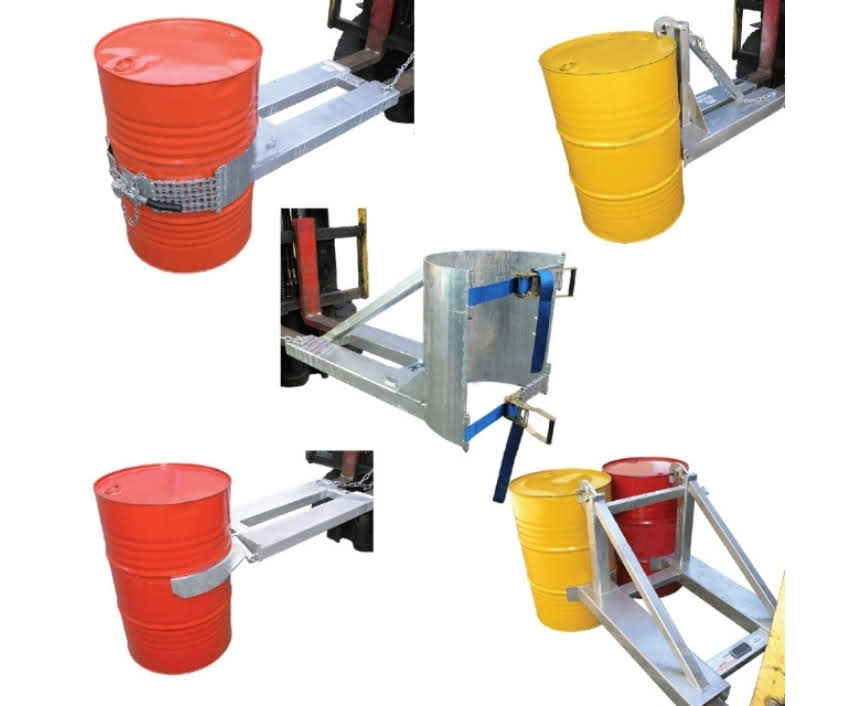

Drum Lifters - Forklift Attachments

  • Overview

    • Model Number: 11640003
    • Product Name: Drum Lifters - Forklift Attachments
    • Starting from: $693.00

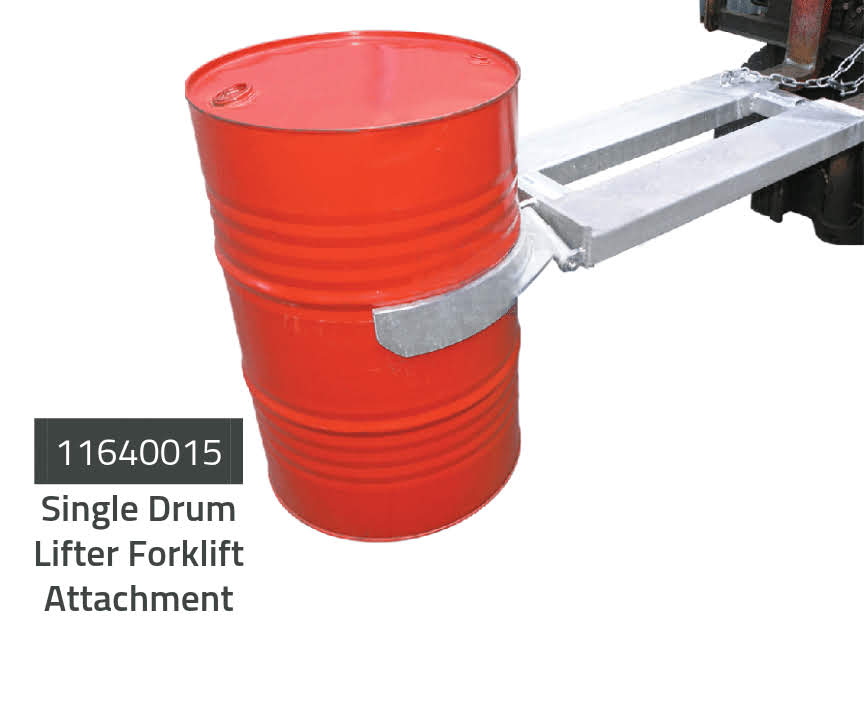

    Drum Lifter 500kg - 11640015:

    The fully automatic clamping action of this drum lifter enables safe and precise placement of drums without the operator leaving their seat. The drum is gripped simply by pushing the clamp arms against the drum centre, then driving the forklift forwards. The arms then engage around the drum and lock under the rolling ring when raised. The heavier the load, the tighter the grip becomes. To release the drum, simply lower drum to the ground and reverse the forklift.
    • Working Load Limit 500kg
    • Fork Pocket Size: 190 x 90mm
    • Zinc Finish
    • Unit Weight 65kg

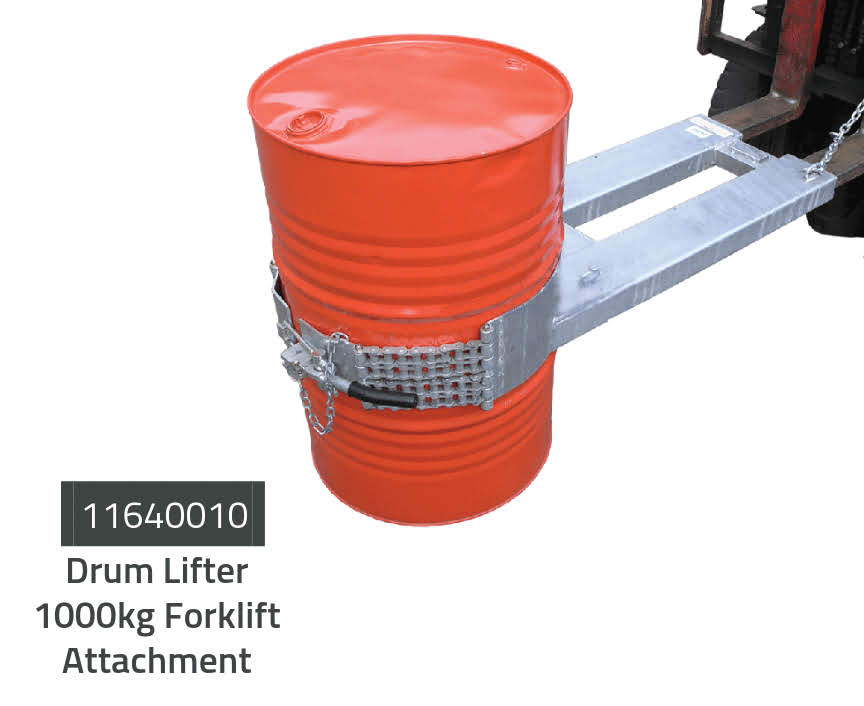

    Drum Lifter 1000kg - 11640010:

    This unit ensures 205L steel drums are moved with 100% security. The drum is quickly clamped into the support via the dual chain belly strap. A further safety catch prevents accidental release.
    • SWL 1000kg
    • Load Centre 1160mm nominal
    • Pocket Size 185 x 60mm
    • Unit weight 60kg

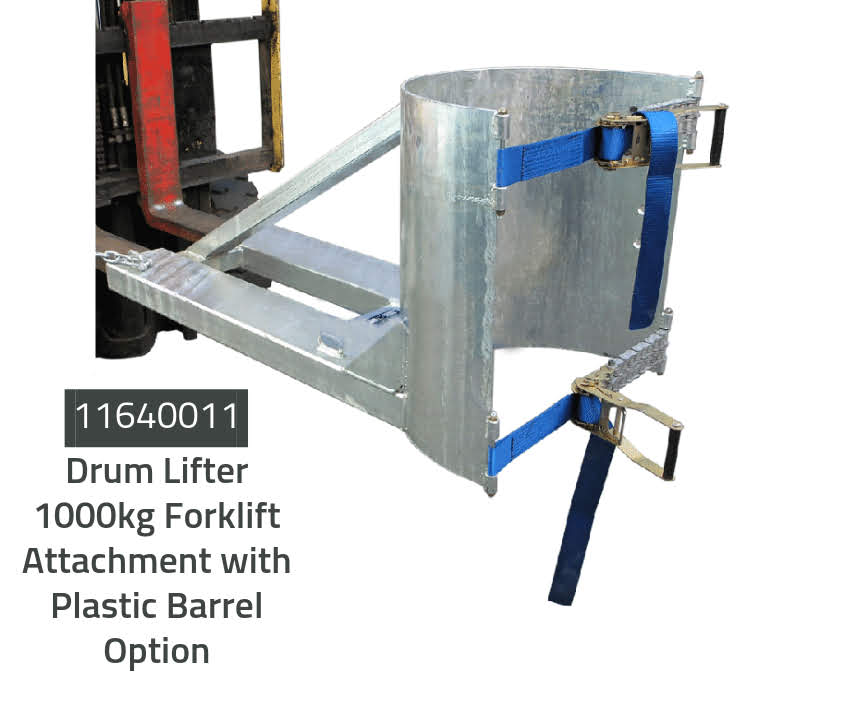

    Drum Lifter with Plastic Barrel Option  350kg- 11640011:

    This unit is an alternative to 11640010 (previous item), the only difference being that it is suitable for lifting plastic drums and the SWL is 350kg.

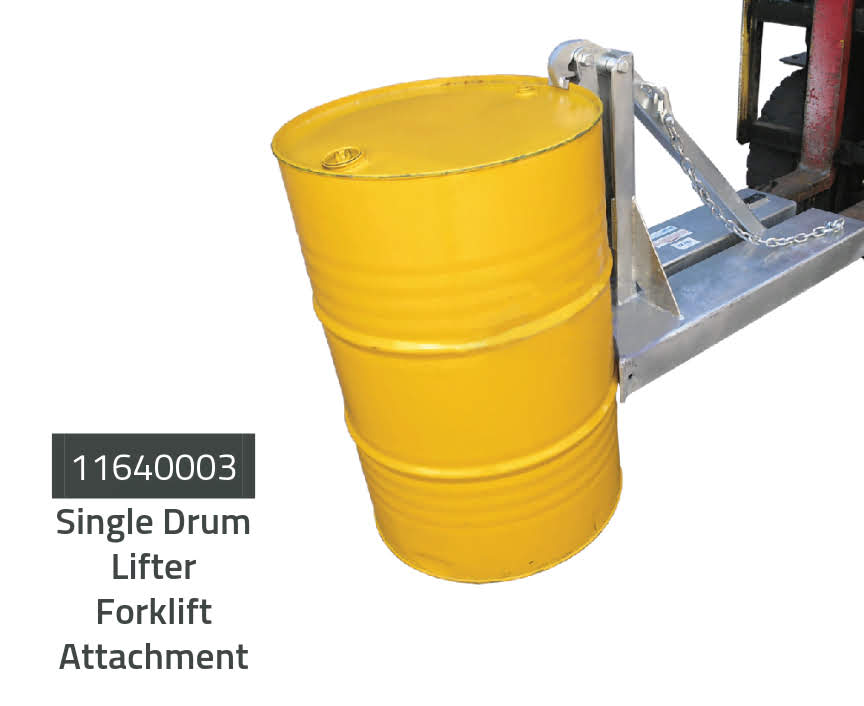

    Single Drum Lifter with Beak Grab - 11640003:

    This product is suitable for the lifting of one 205L steel or plastic drum. It provides a good field of vision for the forklift operator throughout the manoeuver. The unique beak designed clamp provides high clamp force even when travelling on uneven ground. The contoured drum rest is low enough down that it doesn't impact or damage the drum or it's labelling.
    • SLW 1000kg
    • Zinc plated finish
    • Load Centre 1210mm
    • Pocket Size 185 x 60mm
    • Unit weight 72kg

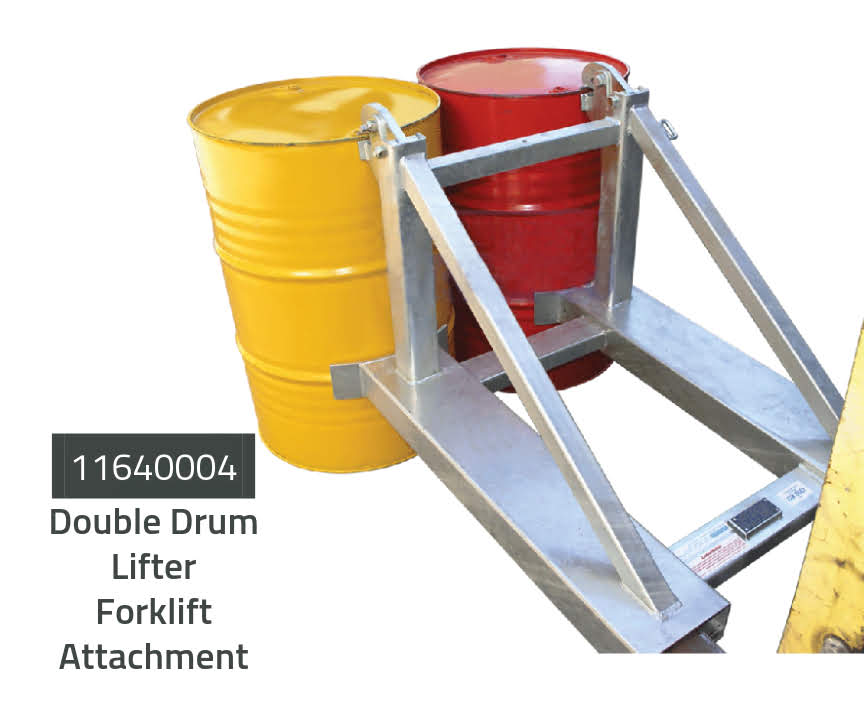

    Double Drum Lifter with Beak Grab - 11640004:

    This product is suitable for the safe lifting of 2 x 205L steel or plastic drums side-by-side. It provides a good field of vision for the forklift operator throughout the manoeuver. The unique beak designed clamp provides high clamp force even when travelling on uneven ground. The contoured drum rest is low enough down that it doesn't impact or damage the drum or it's labelling.
    • SWL 1500kg
    • Zinc Plated finish
    • Load Centre 1250mm
    • Pocket Size: 185 x 60mm
    • Unit weight: 95kg
  • Specification

    Model No of Drums Weight SWL Load Centre
    11640003 1 72kg 1000kg 1210mm
    11640004 2 95kg 1500kg 1250mm
    11640010 1 60kg 1000kg 1160mm
    11640011 1 60kg 350kg 1160mm
    11640015 1 65kg 500kg 1340mm
