De-Fence Panel System

  • Overview

    • Model Number: 10710246
    • Product Name: De-Fence Panel System

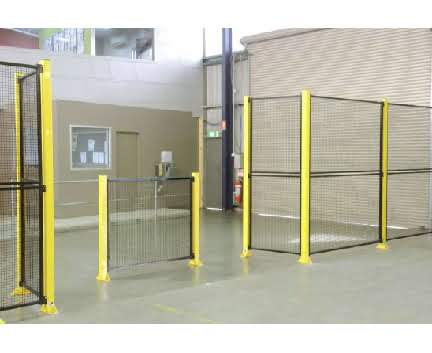

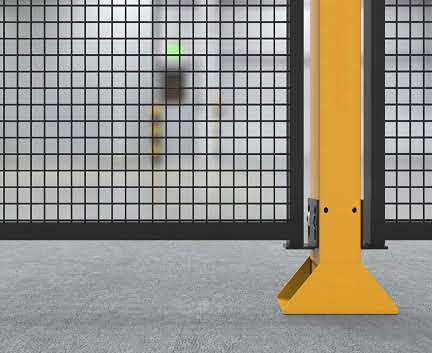

    The ‘De-fence’ panel system has numerous applications both indoor and outdoors, including segregating pedestrians from moving equipment such as forklifts and providing a safety guard for active machinery.

    Features:


    • Designed to conform to Australian Standards AS4024.1 - 2014​
    • Steel Posts: are made in a high-vis safety yellow with powder-coated finish, Posts are pre-drilled and tapped for bracket fixings
    • Mesh Panels: 3mm diameter steel wire welded into a tubular frame, powder-coated black finish

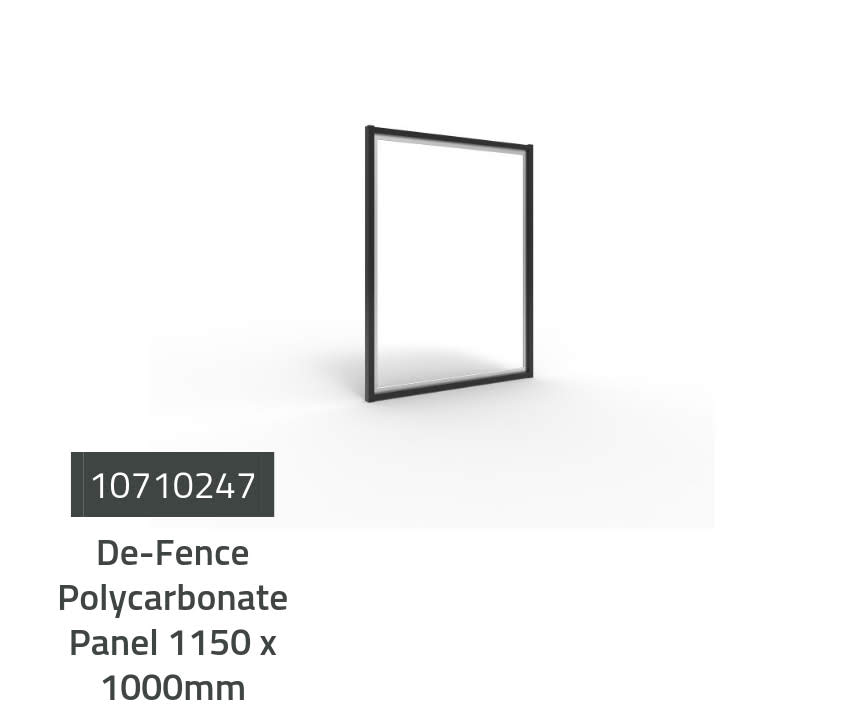

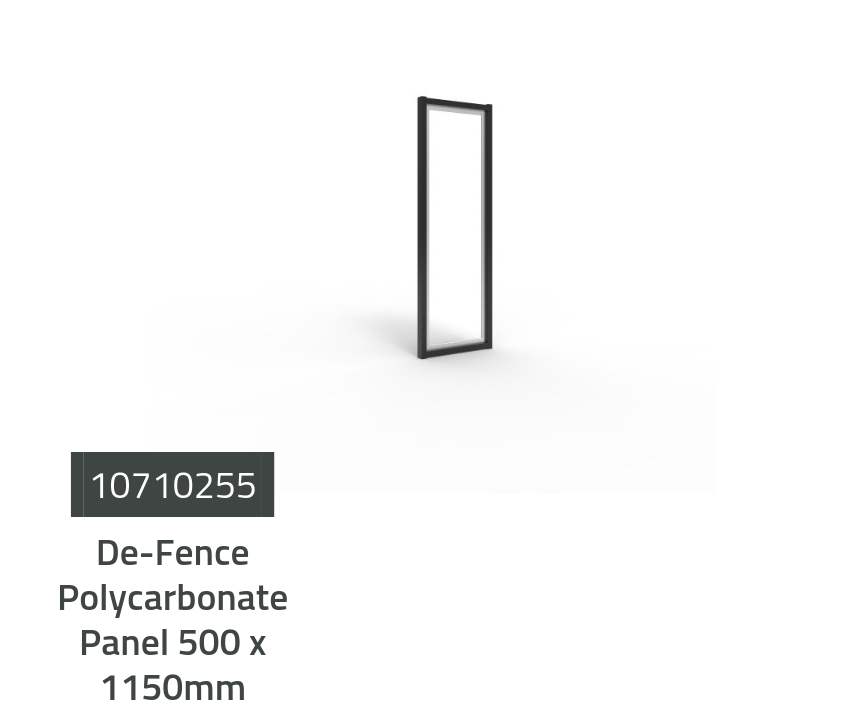

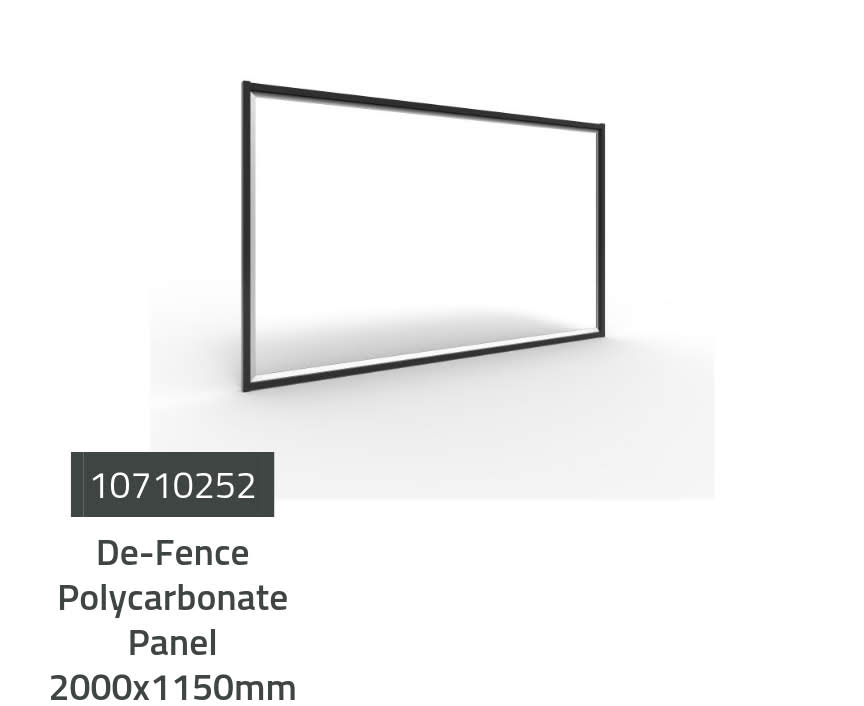

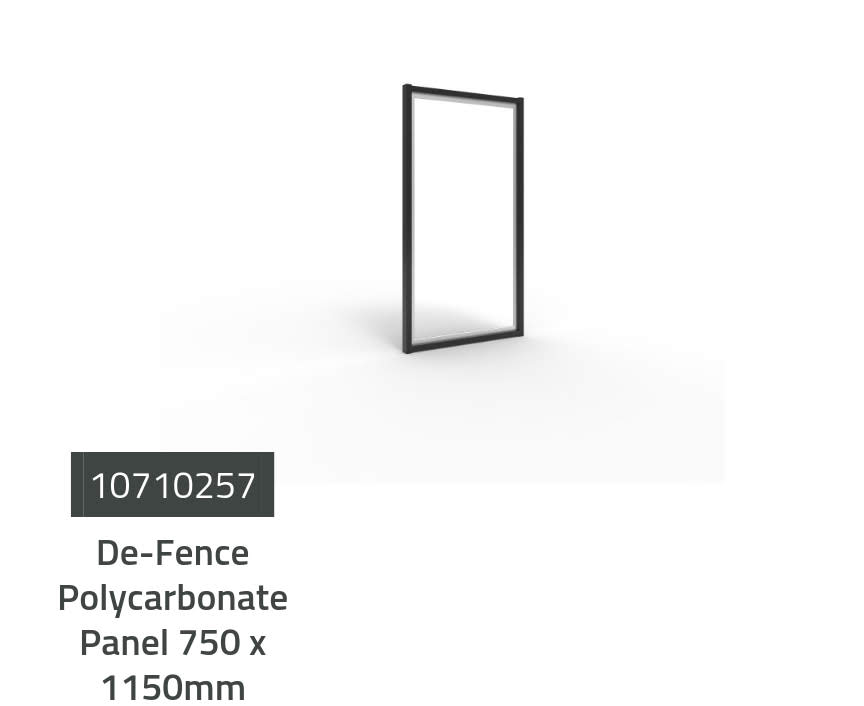

    • Polycarbonate infills are available upon request as an alternative to steel mesh inserts
    • Easy to install with flexible configuration


    ​
    ​



  • Specification

    De-Fence Steel Posts:

    Item CodeDescriptionHeight (mm)Footprint Size (mm)Steel Post Size (mm)Item Weight (kg)

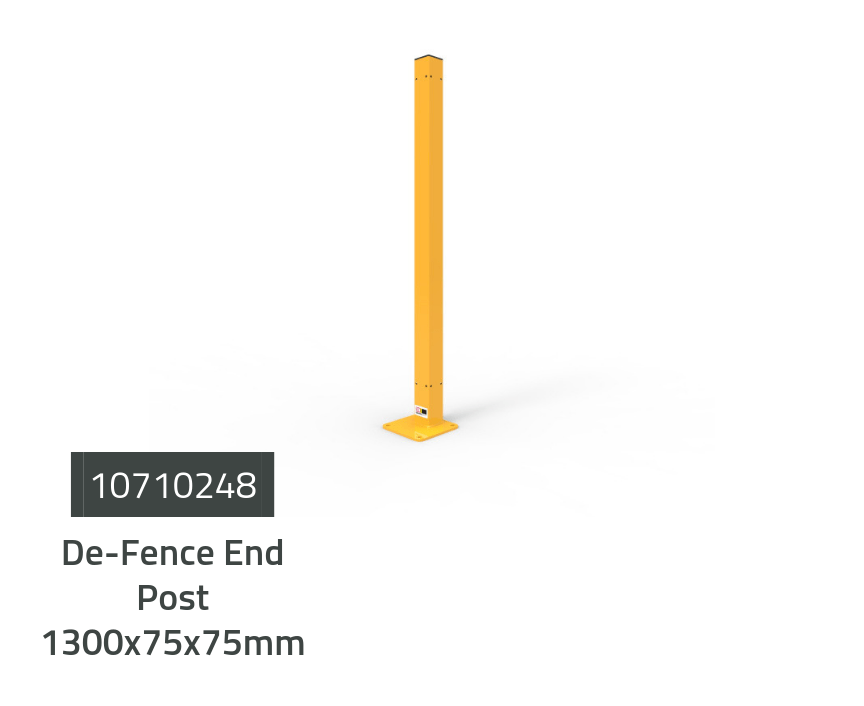

    10710248End Post1300200 x 200 x 8mm75 x 75 x 2.5mm7.4

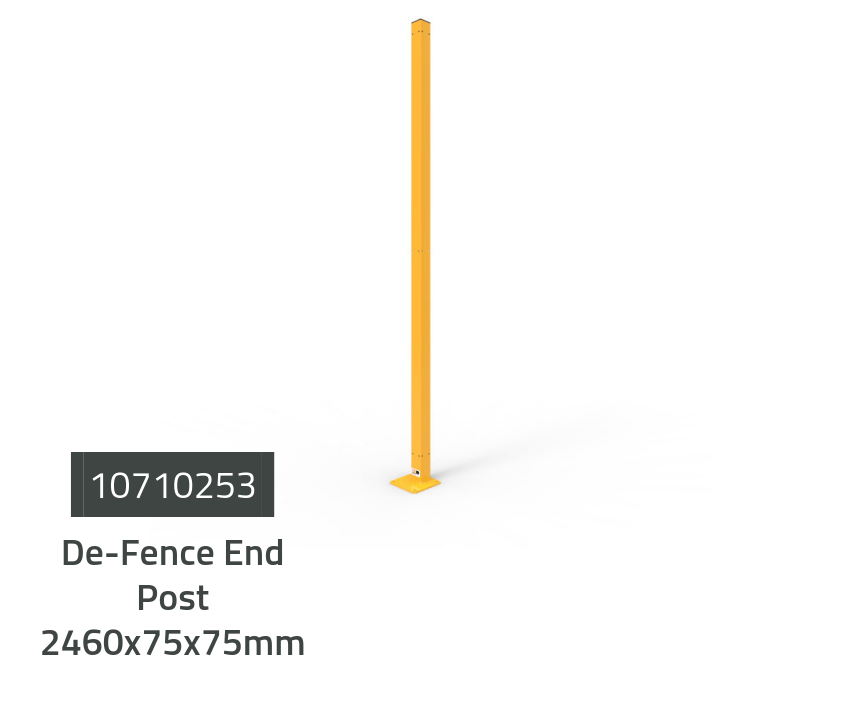

    10710253End Post2460 200 x 200 x 8mm 75 x 75 x 2.5mm12

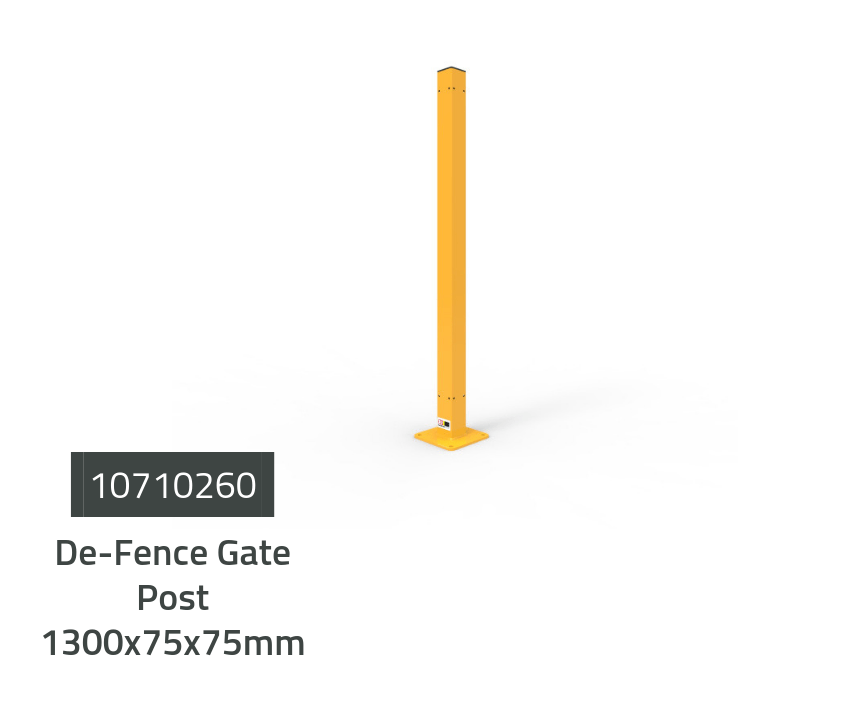

    10710260Gate Post1300200 x 200 x 8mm 75 x 75 x 2.5mm7.4

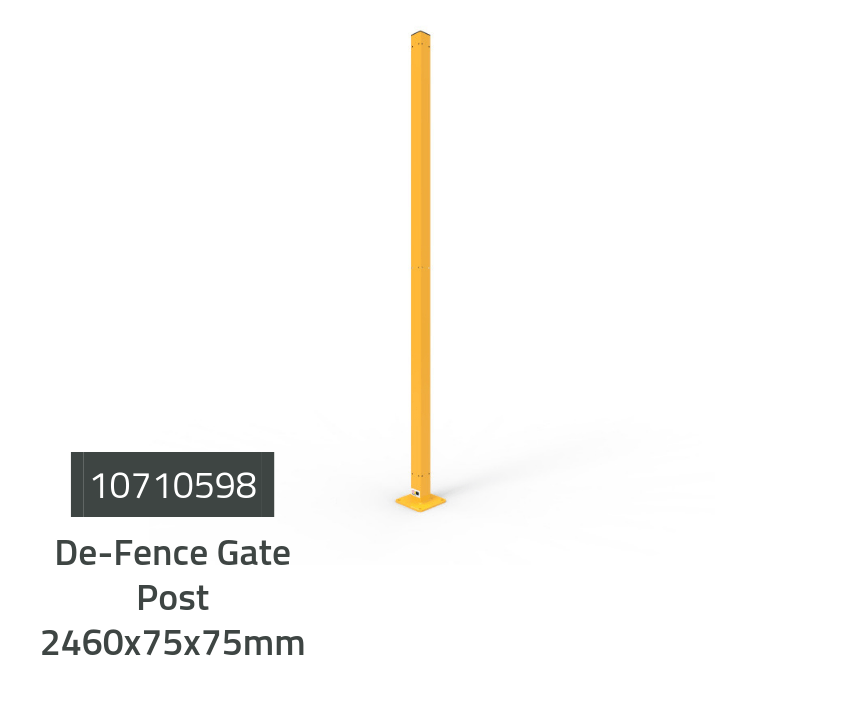

    10710598Gate Post2460200 x 200 x 8mm 75 x 75 x 2.5mm12
    10710599In-Line Post1300200 x 200 x 4mm75 x 75 x 2.5mm7.4

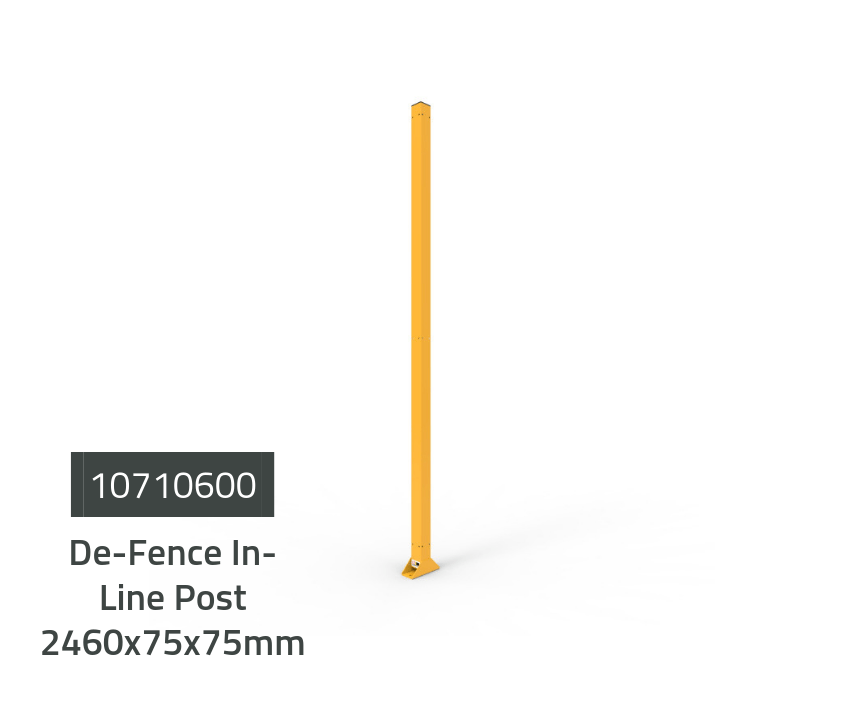

    10710600In-Line Post2460200 x 200 x 4mm75 x 75 x 2.5mm12

    De-Fence Mesh Infill Panels:

    Item CodeSize (mm)Item Weight

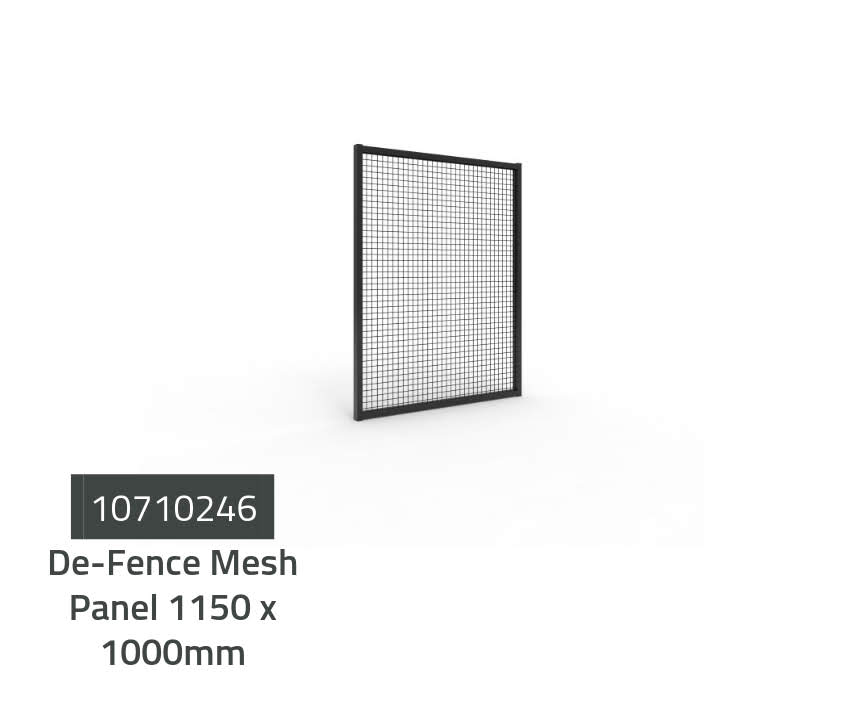

    107102461000W x 1150D10

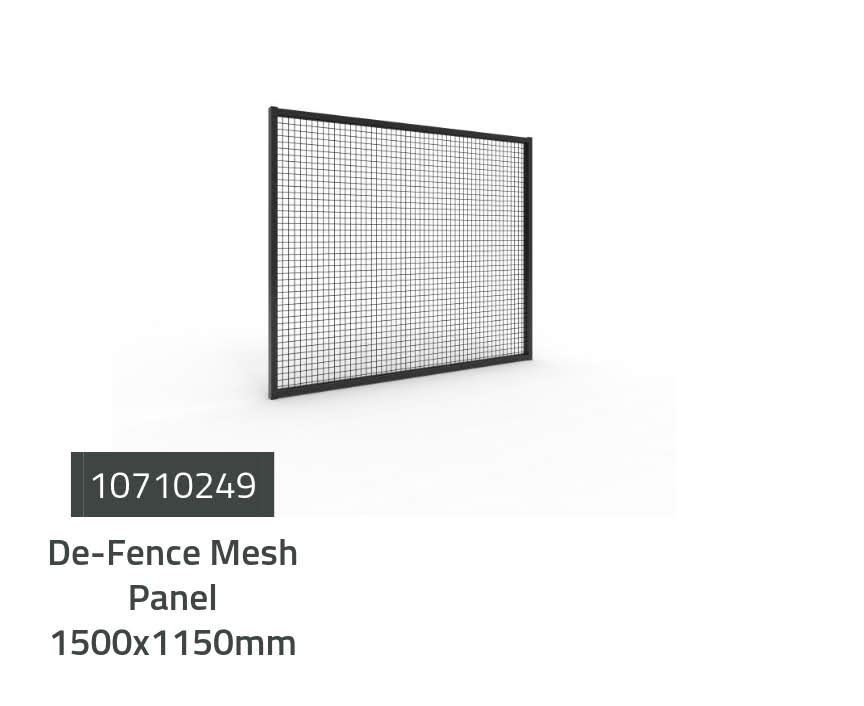

    107102491500W x 1150D15

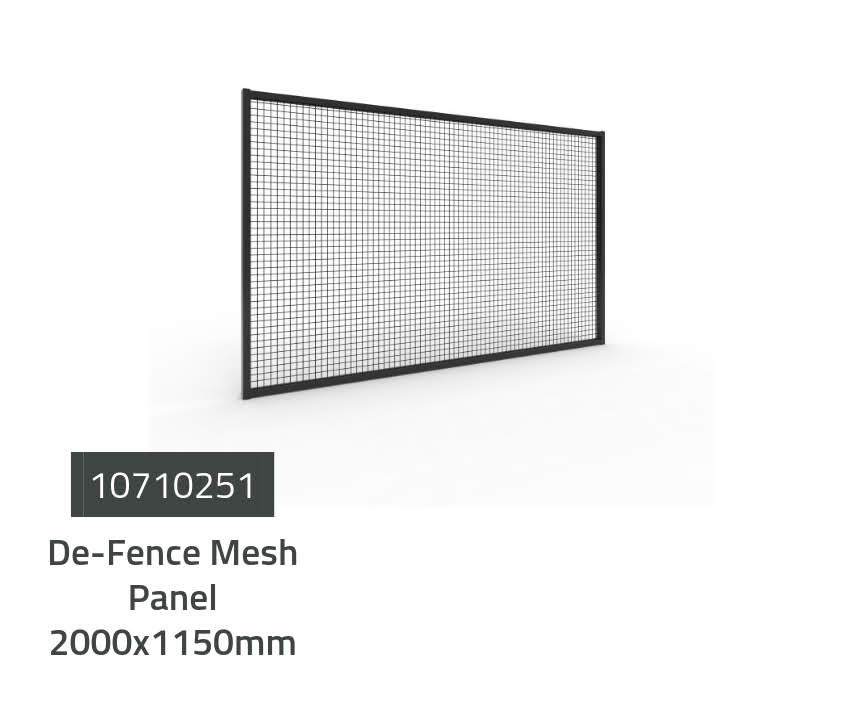

    107102512000W x 1150D18

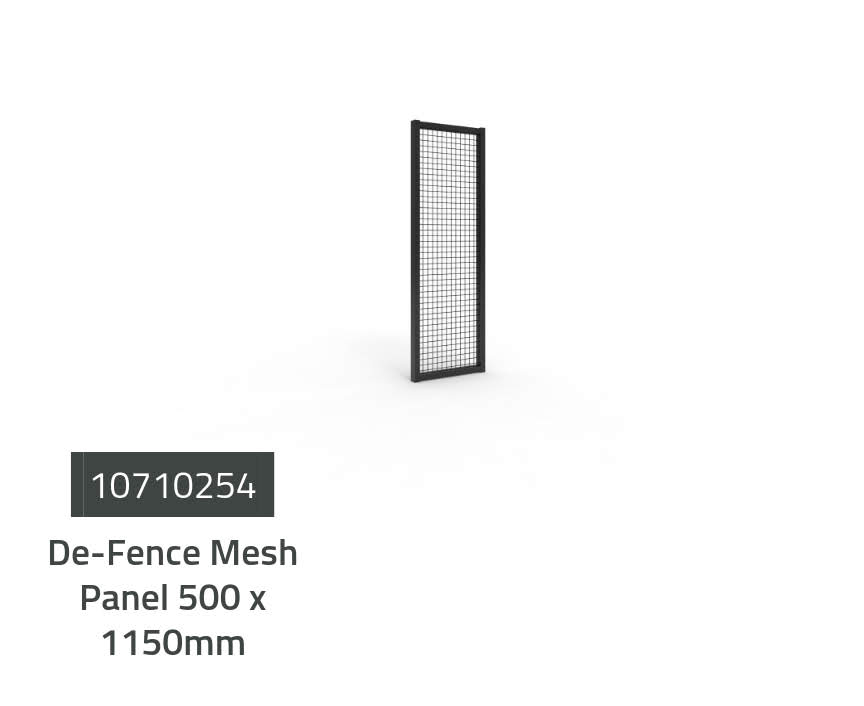

    10710254500W x 1150D7

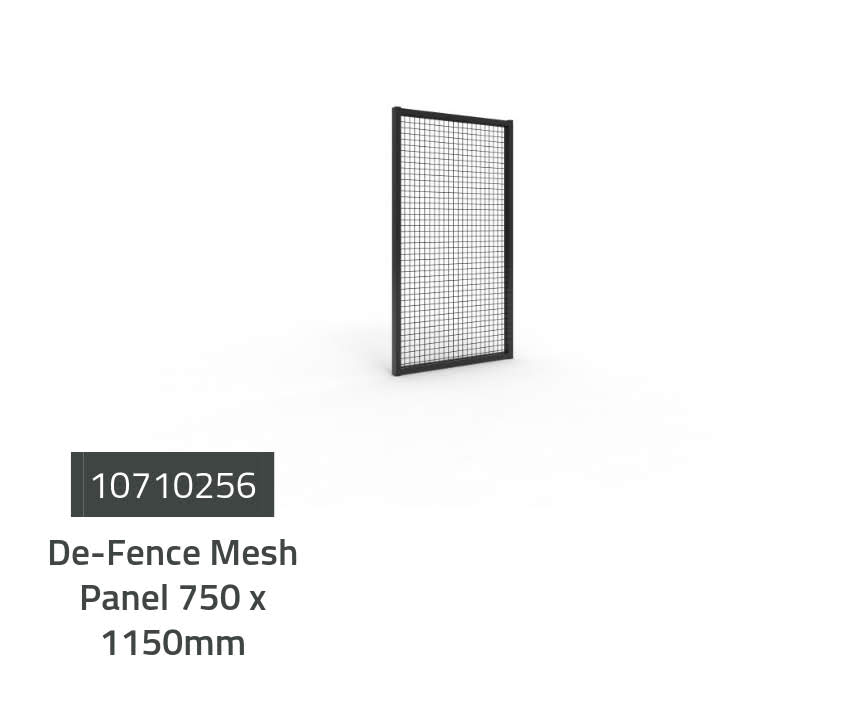

    10710256750W x 1150D8.5


    De-Fence Swing Gates:



    Item Code

    Description

    10710602

    1260mmH Single Swing Gate - 1425mm Opening

    10710603

    1260mmH Single Swing Gate - 925mm Opening

    10710604

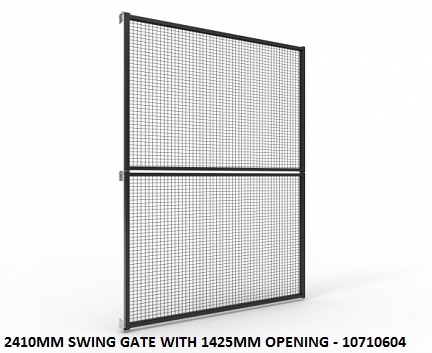

    2410mmH Single Swing Gate - 1425mm Opening

    10710605

    2410mmH Single Swing Gate - 925mm Opening


    Other Accessories:

    Item Code

    Description

    10710240

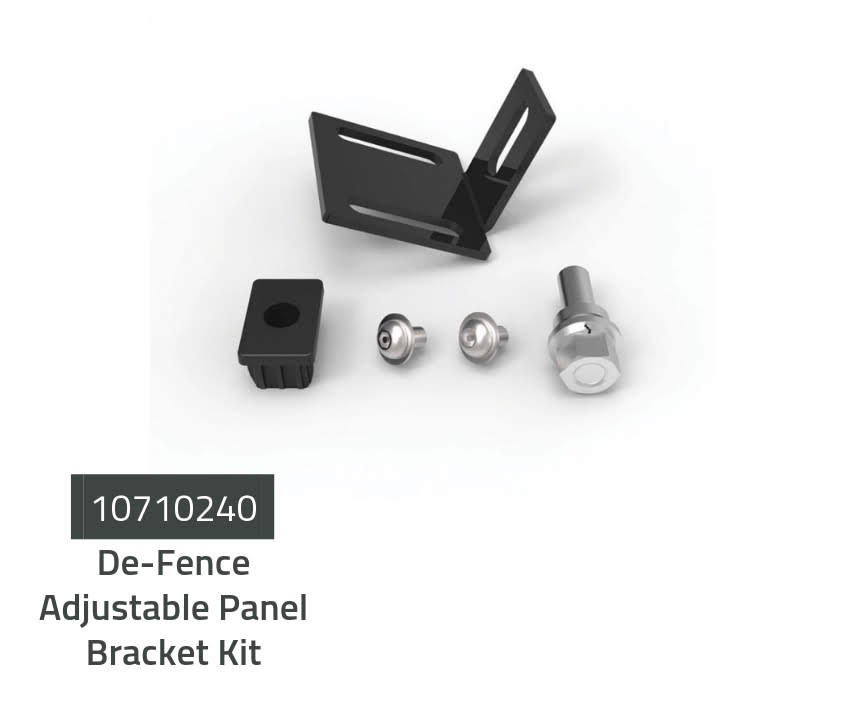

    Adjustable Panel Bracket Kit

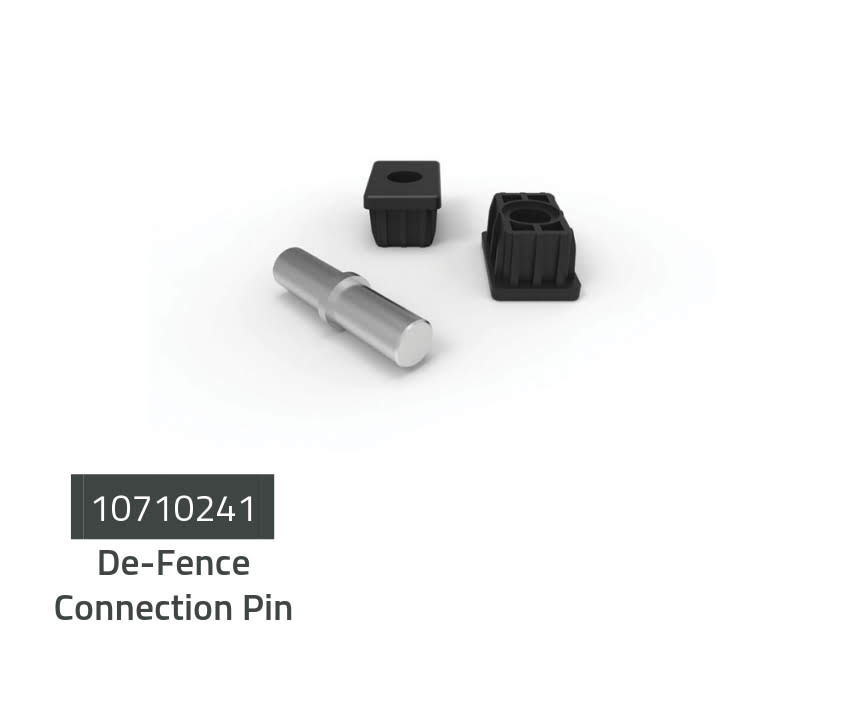

    10710241

    Connection Pin with Bushes

    10710242

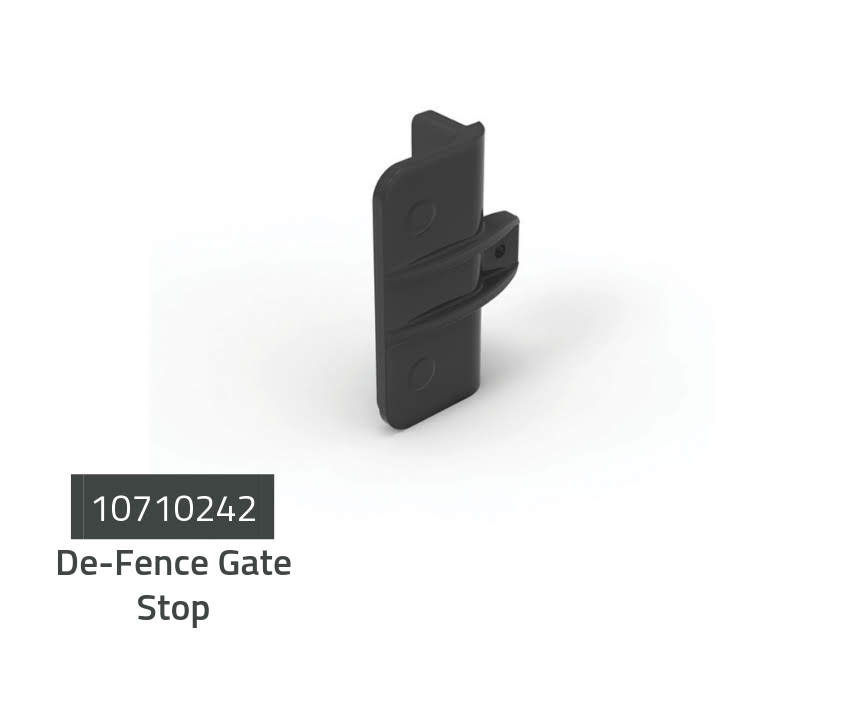

    Gate Stop

    10710243

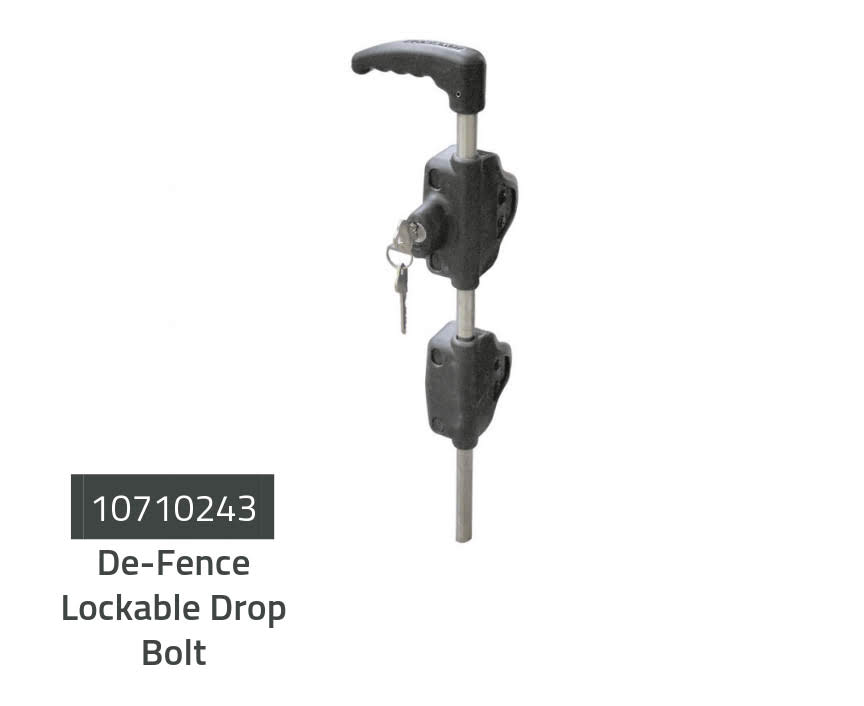

    Security Lock-Bolt

    10710244

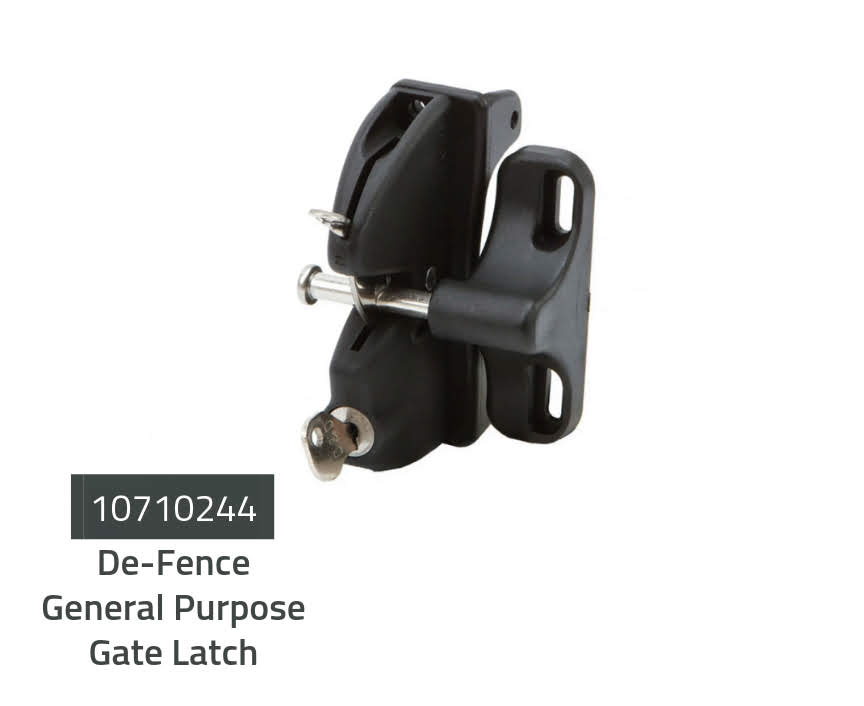

    General Purpose Gate Latch

    10710259

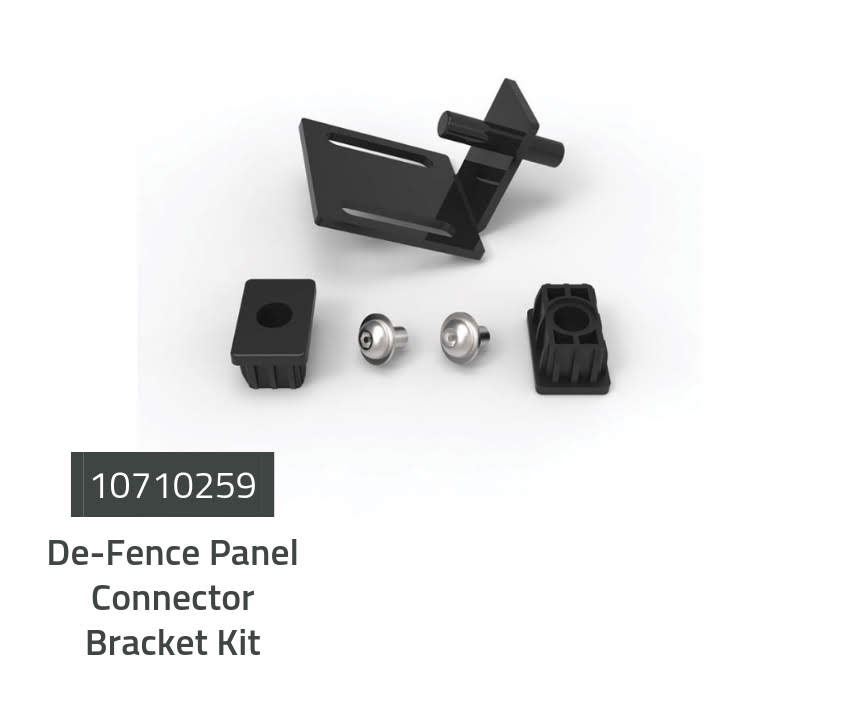

    Panel Connector Bracket Kit

    10710262

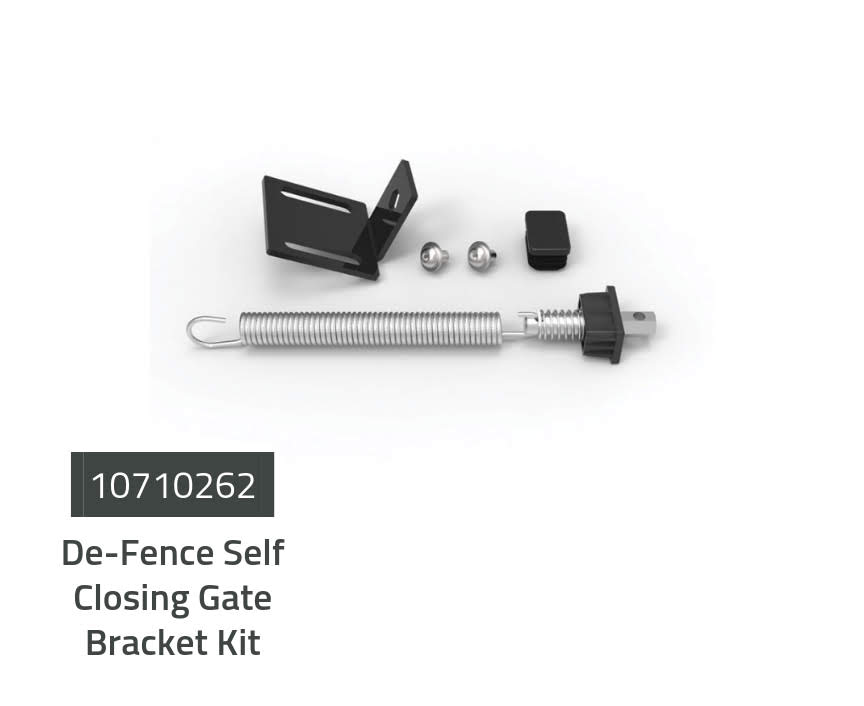

    Self-Closing Gate Bracket Kit

    10710263

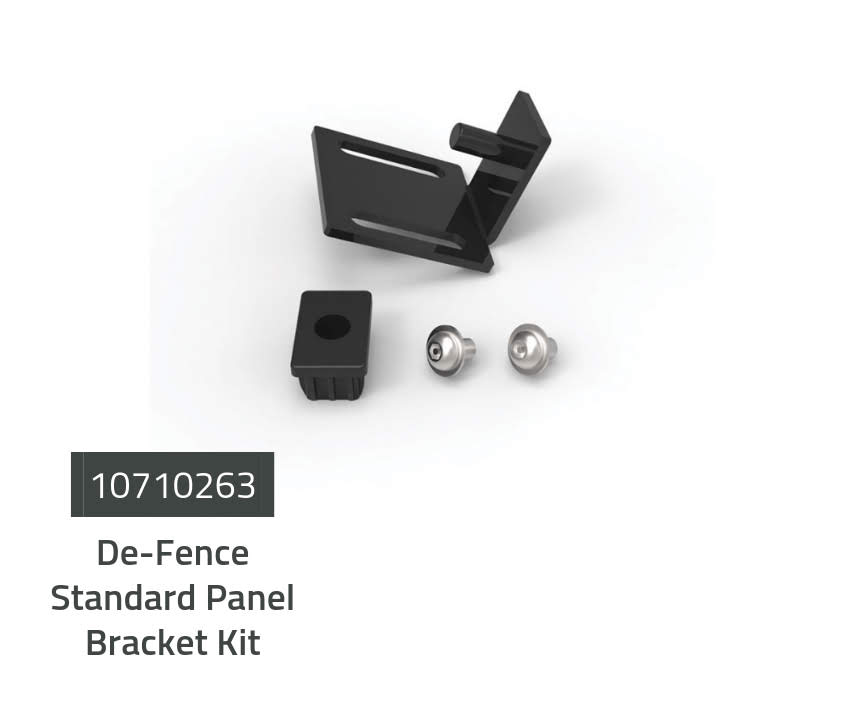

    Standard Panel Bracket Kit

    10710601

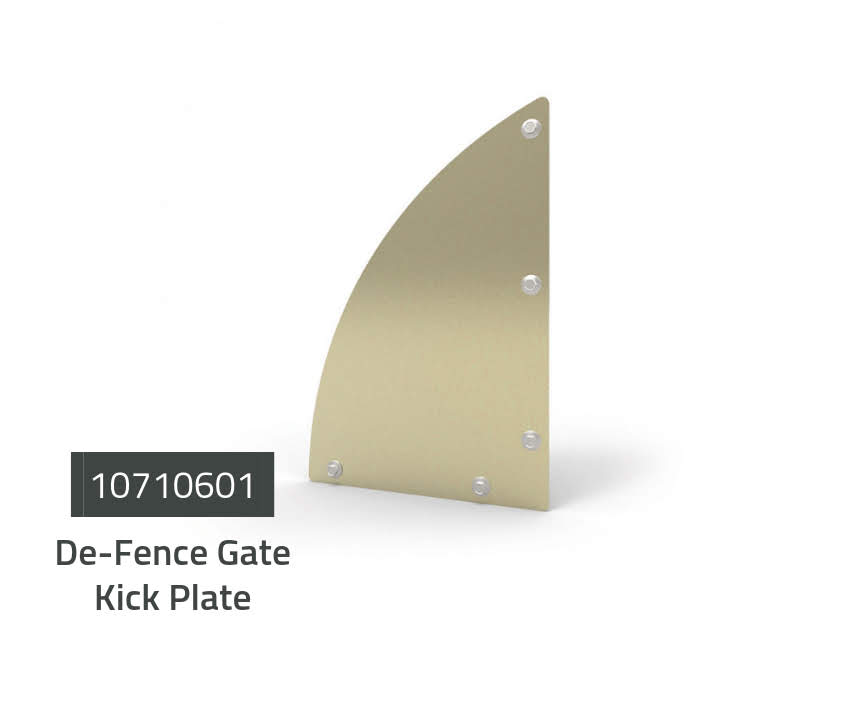

    Gate Kick Plate 300 x 200 x 3mm
