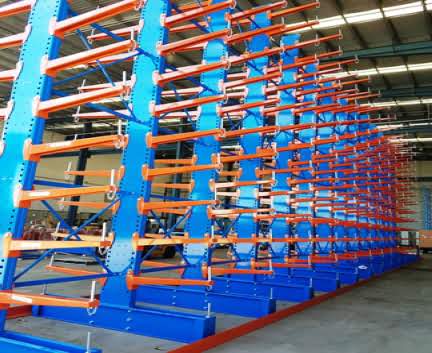

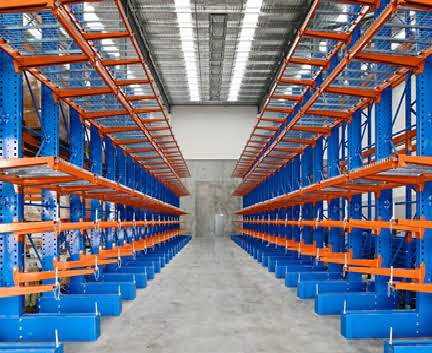

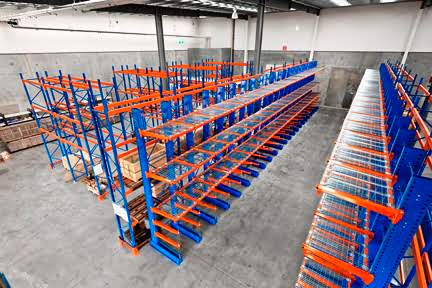

Cantilever Racking - Heavy or Light Duty

  • Overview

    • Model Number: CANTILEVER
    • Product Name: Cantilever Racking - Heavy or Light Duty
    Please select Quantity

    Backsafe Australia provides warehouse design and 3D layout services to assist in maximising your space. We can also complete installation for new warehouse fitouts and warehouse relocations. Please enquire for more information.
    Heavy duty racking is "mine spec" and ideal for mining or heavy industrial industries!

    Features:

    • Designed to your warehouse and individual requirements with a range of sizes available in both Heavy Duty (suits exceptional weight loads) and Light Duty (suits light to moderate weight loads)
    • Premium Blaze Blue & Safety Orange powder coat finish for exceptional visibility
    • Available with Single or Double sided configurations
    • Canitlever arms are connected to the upright columns with a pivot pin system to prevent forklift damage when loading or unloading the levels below whilst maintaining height adjustability
    • Optional Mesh Decking can be fitted to cantilever arms
    • Hot Dipped Galvanised finish is also available
    • Adheres with Australian Standards - AS4084: 1993 Steel Storage Racking
    • See some of our Cantilever Racking Installations!


  • Specification

    HEAVY DUTY:

    Arm Length: 1200mm
    Arm Load Capacity: 1000kg UDL

    Note: Cantilever Rack Load capacity is calculated according to the specific rack configuration.

    Column Centres (mm)Height (mm)
    900400048005800
    1200400048005800
    1500400048005800
    2000400048005800



    LIGHT DUTY:

    Arm Length: 800mm
    Arm Load Capacity: 250kg UDL

    Note: Cantilever Rack Load Capacity is calculated according to the specific rack configuration.

    Column Centres (mm)Height (mm)
    9002900
    12002900
    15002900
    20002900
