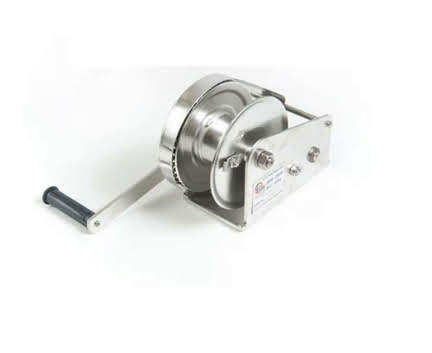

304 Grade S/S Brake Hand Winch

  • Overview

    • Model Number: 13300055
    • Product Name: 304 Grade S/S Brake Hand Winch

    A compact, lightweight and cost-effective solution for a variety of pulling and lifting applications.


    Features:

    • Compact and Lightweight
    • Corrosion resistant - grade 304 Stainless Steel
    • Automatic brake enabling the load to be held in any position
    • All enclosed mechanical components for better protection
    • Complies to AS1418.2 when fitted with approved wire rope fittings

  • Specification

    Model

    13300055

    13300017

    13300161

    		13300206
    Pulling Capacity (kg)54582012001700
    Lifting Capacity (kg)270410600850
    Hand Force Required (kg)15221916
    Gear Ratio4.2:15:110:122.2:1

    Handle Length (mm)

    		208319319300
    Hub Diameter Ø (mm)50708060
    Wire Rope Ø (mm x m)5 x 236 x 248 x 168 x 32
    Net Weight (kg)3.78.110.313.5
    Noiseless Available?YesNoNoNo

  • Documents

    Specification Sheet
